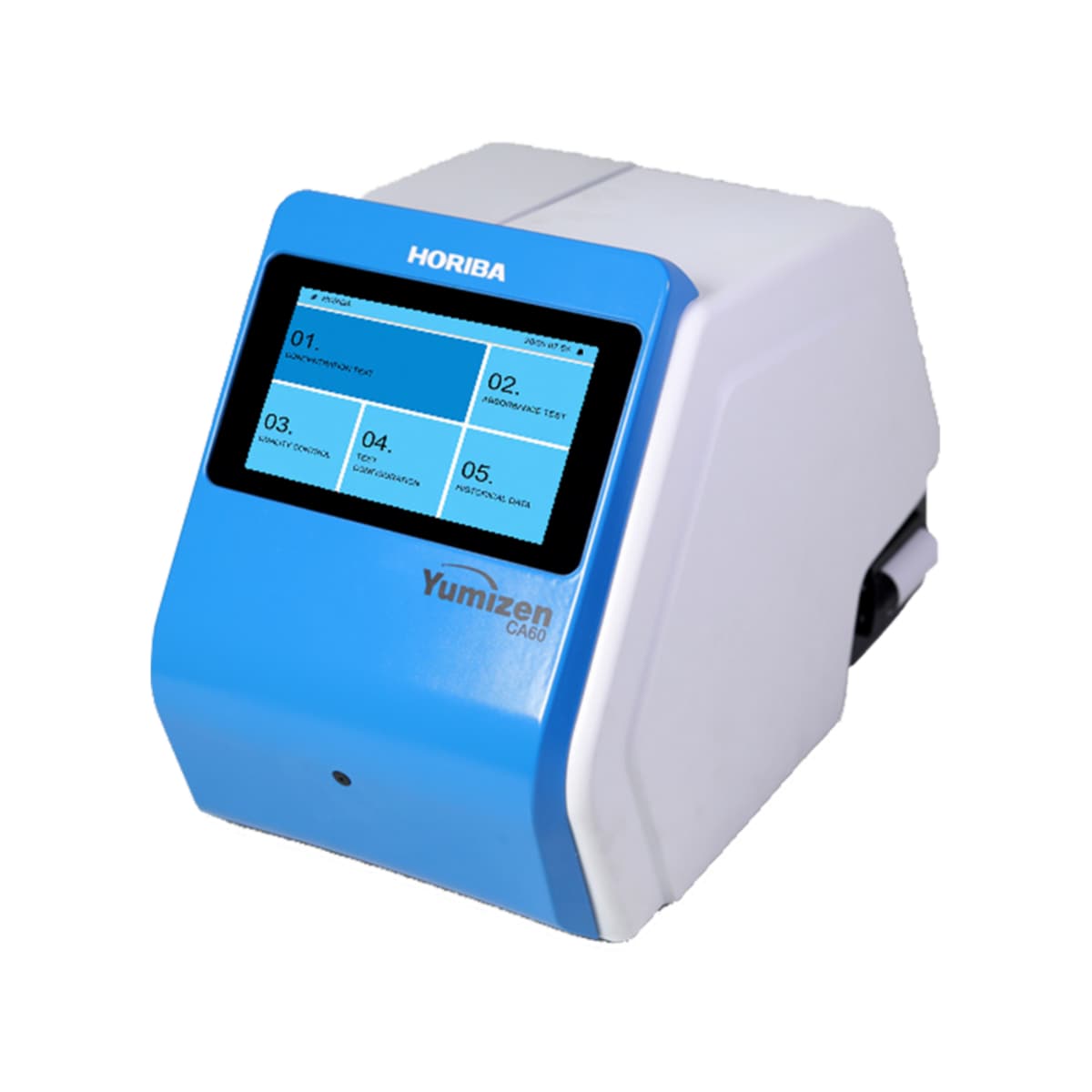

The Yumizen CA60 is a compact, semi-automated clinical chemistry analyzer that blends efficiency with precision. Based on an innovative vertical overlay design and equipped with a durable multi-array LED light system, it supports a broad menu of biochemistry and turbidimetric assays, while offering user-friendly interface and laboratory-grade reliability—ideal for small to medium-sized labs.

Yumizen CA60

HORIBA provides compact and high autonomy instruments, to analyse molecules and electrolytes into plasma, serum, urine, body fluids and whole blood. These solutions allow to assess general health condition, to help the disease detection and monitoring therapies.

Clinical Chemistry

This solution is specifically designed for mid to high- end laboratories seeking superior performance combined with user-friendly operations.&nbsp;It offers an impressive throughput of&nbsp;400 photometric tests per hour, which increases to&nbsp;600 tests with ISE integration, ensuring prompt and precise diagnostic results.&nbsp;Its high-speed processing capabilities maintain an uninterrupted workflow, even during peak operational hours, effectively minimizing manual intervention and delays.&nbsp;The system supports&nbsp;automated sample loading, reagent dispensing, and result analysis, delivering a seamless and efficient laboratory experience.

Yumizen C600

Model

400 tests/hour (Photometric), 320 tests/hour(ISE), 600 tests/hr(photometric + ISE

Throughout

Principal

Sample Type

126 cooled Sample positions, with 81 barcoded positions

Sample Position

500μL Pediatric Cup, Vacutainer, Test tubes,  2ml cup

Sample Cups

Clot Detector

Sample Volume

88 cooled positions (44 bottles of 20 or 60 mL + 44 bottles of 20 mL)

Bottle Size

Temperature

Barcode Reader

Type of Syringe

3 Probes - for Reagents( 1 for Reagent A and 1 for Reagent B) &  1 for sample

No. Of Probes

7  Probes (2 Wash, 3 for Rinse, 2 for Dry)

Cuvette Washing System

Reaction Volume

Reagents Volume R1

Reagents Volume R2

No. of Cuvette position

No. of stirrers

Laundary System

Light Source

Photometric Ranges

Wavelengths

Main Photodiaode + Reference Photodiaode


Photo Detector

Water Inlet

Water Type

Water Consumption

Wash Solution Container

Main Voltage

Electric Power

Ambient Temp

Windows 10 or above  64 bit/ Intel Core i3 & above

Operating System

RAM & Memory

Interface

Dimension (W/D/H)

Weight

It is a compact solution for small laboratories seeking exceptional performance and ease of use. It delivers a remarkable throughput of 200 tests per hour, ensuring timely and accurate results to meet patient's needs. Its rapid processing capabilities keep workflow running smoothly, even during peak hours and eliminates the hassle of manual operation. It provides seamless sample loading, reagent dispensing, and result analysis.&nbsp;<ul><li>Fully automated operation for effortless workflow</li><li>Compact design for space-conscious labs</li><li>Throughput of &nbsp;200 test/hour for efficient testing.&nbsp;</li><li>Intuitive software for easy operation.</li><li>Comprehensive test menu for diverse clinical needs</li><li>Unwavering reliability for consistent results</li><li>Onboard laundry systems to ensure proper cleaning and rinsing of cuvettes</li></ul>

Yumizen C150

<h4>One Analyzer Three Solution</h4><h4>&nbsp;</h4>Yumizen CA40 is a semi-automated Clinical Chemistry analyzer with facility to perform Chemistry, Immunoturbidimetry and Coagulation Tests (PT &amp; APTT). It is an ideal solution for small laboratories with the facility to perform a wide range of biochemical tests.

Yumizen CA40

Semi-automated Clinical Chemistry Analyzer

The Yumizen E60 is a compact electrolyte analyzer that delivers rapid, accurate ion-selective measurements for labs and clinics. It quantifies Sodium (Na⁺), Potassium (K⁺), Chloride (Cl⁻) or Calcium (Ca²⁺) across whole blood, serum, plasma, urine, and CSF. With 60 tests/hour throughput, a low 90 µL sample requirement, tri-level QC with Levey–Jennings charts, and easy operation via a 5" color touchscreen, it streamlines routine electrolyte testing and ensures reliable results.

Yumizen E60

The Pentra C400 is a compact, fully automated clinical chemistry analyzer designed to perform both routine and specialty tests on a single system. It handles up to 55 onboard assays, offers continuous sample loading, and supports high efficiency with optional ion-selective electrode (ISE) capabilities—perfect for mid- to high-throughput laboratory settings.

Pentra C400

The Pentra C200 is a compact, high-automation benchtop clinical chemistry analyzer designed for small to mid-sized laboratories. Featuring an ergonomic touchscreen, integrated reagent cassettes, automatic cuvette handling, and optional ISE capability, it delivers excellent efficiency and precision in a user-friendly package.

OPTICAL SYSTEMS
Range of measurement	- 0.2 to 3.5 A all Wavelengths
Wavelengths	340, 405, 505, 535, 560, 600, 635, 670 nm
Bandwidth	10 nm ± 2 nm
Light source	LEDs
Settings	Monochromatic and Bi-chromatic
Measurement accuracy	CV ≤ 1% at 0.1 A CV ≤ 0.1% at 2 A
FLOW CUVETTE
Cuvette	Quartz
Volume	18 μL
Removable cuvette	Macro, Semi-micro & Micro round tubes (12 mm diameter)
FLUIDIC SYSTEM
Aspiration volume	100 μL to 5000 μL
Peristaltic pump	Continuous flow system
Operation type	Stepper motor
Nominal flow	10 mL/min
THERMOSTAT SYSTEM
Thermostatation range	25º C to 37º C
Temperature accuracy	± 0.5ºC
Temperature stability	± 0.2º C in 30 minutes
METHODS OF CALCULATION
Absorbance
End point
Kinetic
Differential mode
Fixed time
CALIBRATION
Factor
Calibrator
Calibration curve
CALIBRATION CURVE
Up to 5 Calibration Points
Axis: Linear and Log
Calculation Functions: Spline, Linear Regression, Quadratic Regression, Polygonal
QUALITY CONTROL
3 Controls per Test
Levey-Jennings Control Chart
Westgard´s Rules
PROGRAMMING
All Yumizen CR pre-programmed Biochemistry & Turbidimetric tests
Multiple user programs
More than 100,000 patient results storage
Quality control storage of the last results
PROCESSING & CONNECTIVITY
CPU	H6 Quad-core 64-bit 1.8GHZ ARM Cortex™-A53
USB 3.0 Ports	2 x USB 3.0 Host
Onboard Network	10/100M/1000M, Ethernet RJ45
PRINTER AND SCREEN
Thermal printer
Screen	7” Touch Colored LCD
POWER CONSUMPTION
Measurement	5W
Standby	2W
EXTERNAL POWER SUPPLY
Voltage	100V-240V
Frequency	50/60 Hz
Output power	30W
Output Voltage	15V
PHYSICAL SPECIFICATIONS
Operating Temperature	10-35 °C
Max Rel humidity	85 %
System Dimensions (HxWxD)	310 x 245 x 440 mm
System Weight	5.465 kg

Yumizen CA60

Yumizen CA60

Why Choose Yumizen CA60

Technical Specifications of Yumizen CA60
