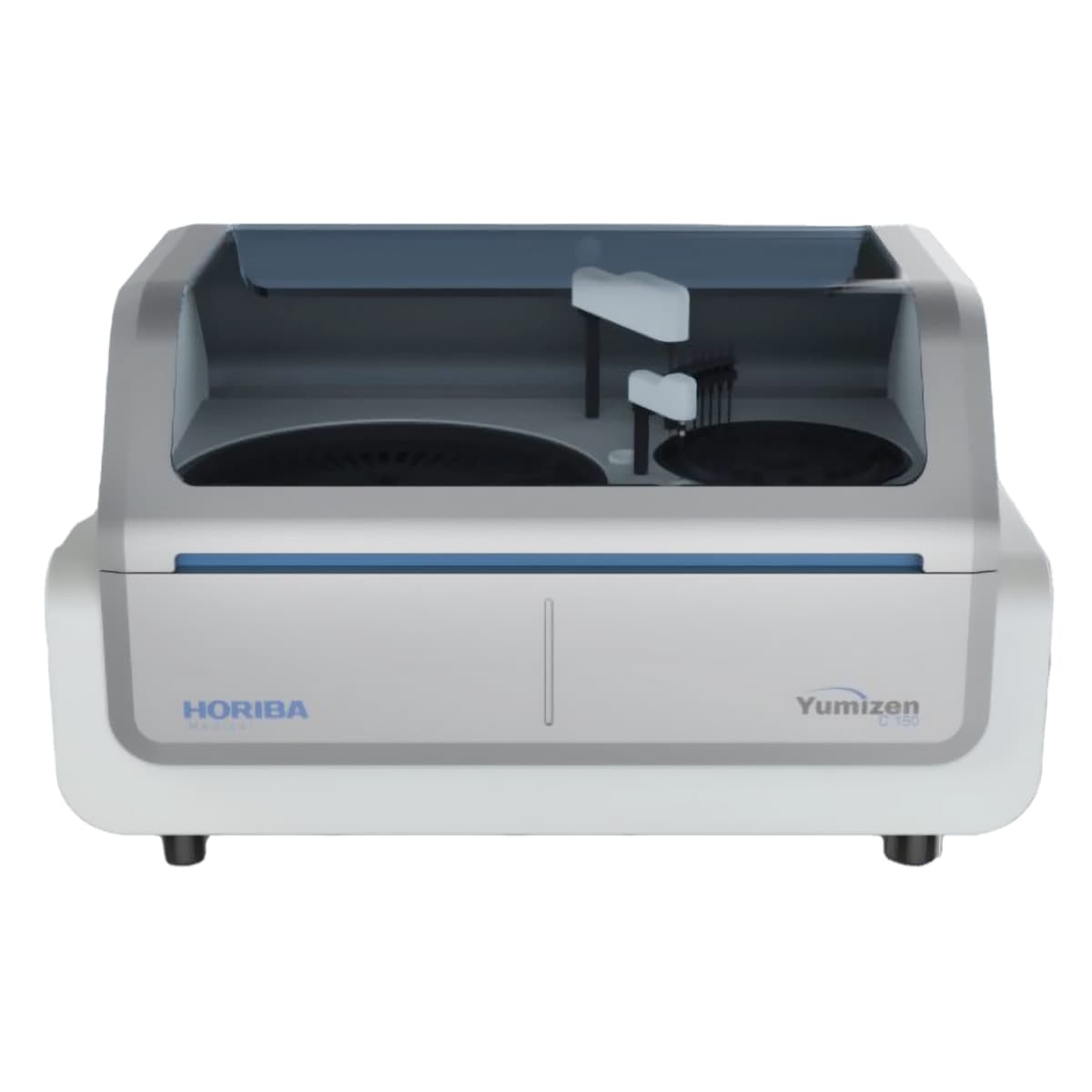

Yumizen C150
Automated Clinical Chemistry Analyzer
It is a compact solution for small laboratories seeking exceptional performance and ease of use. It delivers a remarkable throughput of 200 tests per hour, ensuring timely and accurate results to meet patient's needs. Its rapid processing capabilities keep workflow running smoothly, even during peak hours and eliminates the hassle of manual operation. It provides seamless sample loading, reagent dispensing, and result analysis.
- Fully automated operation for effortless workflow
- Compact design for space-conscious labs
- Throughput of 200 test/hour for efficient testing.
- Intuitive software for easy operation.
- Comprehensive test menu for diverse clinical needs
- Unwavering reliability for consistent results
- Onboard laundry systems to ensure proper cleaning and rinsing of cuvettes
Why Choose Yumizen C150
- 200 test/hour
- 30 Sample Positions & 30 Reagent Positions.
- Electro-Polished Probe.
- Reusable Reaction Cuvettes.
- 7 Stage Laundry System.
Key Advantages of Yumizen C150
Small Wonder
Small compacted Analyzer saves spaces.
Reusable Cuvettes
180 µL reaction volume reduces running expenses
Low Carryover
Ensures < 1% sample carryover.
Multi‑Wavelength
Supports diverse assay configurations.
Applications of Yumizen C150
Small Hospitals & Mid‑Size Labs
Efficiently performs routine chemistry panels and emergency assays with minimal footprint and ease of use.
Standalone Laboratories
Ideal for independent labs requiring random‑access testing, quick startup, and low maintenance.
Corporate Hospitals
Integrates with LIS and middleware for high‑throughput departmental workflows and multi‑shift operations.
Lab Chain – Satellite Labs Solution
Standardizes assay protocols across sites with centralized data management and remote QC monitoring.
Technical Specifications of Yumizen C150
| System function | |
| System | Automatic, Discrete, Random access, Bench-top with STAT sample priority |
| Throughput | Up to 200 tests/hour Measuring principles: Absorbance photometry, Turbidimetry |
| Methodology | End-point, Fixed-time, Kinetic, Single/Dual reagent chemistries, Monochromatic/Bi-chromatic, Original system pack ready to use reagents |
| Reagent/Sample Handling | |
| Reagent/Sample tray | 30 positions for reagents and 30 positions for samples in 24-hour refrigerated compartment (2~12℃) |
| Reagent volume | 10 - 350 µl, step by 0.5 µl |
| Sample volume | 2 - 50 µl, step by 0.1 µl |
| Reagent/Sample probe | Liquid level detection, vertical collision protection and inventory checking, reagent pre-warming |
| Probe cleaning | Automatic interior and exterior washing |
| Carryover | <3% |
| Automatic sample dilution | Pre-dilution and post-dilution |
| Internal bar code reader (optional) | |
| Barcode Reader | Used for sample and reagent programming |
| Capable to communicate with LIS in bi-directional mode | |
| Reaction System | |
| Reaction rotor | Rotating tray, containing 60 cuvettes |
| Cuvette | Reusable, optical length 6 mm |
| Reaction volume | 180 – 550 μl |
| Operating temperature | 37 °C |
| Temperature fluctuation | ± 0.2℃ |
| Mixing Unit | |
| Paddle Mixer | Independent mixing bar for homogenous mixing |
| Laundry System | |
| Cuvette Washing System | Washing station with pre-warmed detergent and water |
| Upgraded auto-washing system ensures low carryover and low water consumption | |
| 7 step on-board washing system, Carryover <1% | |
| Optical System | |
| Light Source | Halogen-tungsten lamp |
| Wavelength | 9 wavelengths, 340 nm, 405 nm, 450 nm, 510 nm, 546 nm, 578 nm, 620 nm, 670 nm & 700 nm |
| Absorption range | 0 - 3.0 Abs, resolution 0.0001 Abs |
| Detector | Silicon Photodiode |
| Control and Calibration | |
| Calibration modes | Linear (one point, two points and multi-points), Logit-Log 4P, Logit-Log 5P, spline, exponential, polynomial, parabola |
| Control Rules | X-R, L-J, Westgard multi-rule, Cumulative sum check |
| Operation Unit | |
| Operation system | Windows 7, Windows 10 or latest |
| Interface | RS-232 |
| Working Conditions | |
| Power Supply | 110/220 V, 50/60 Hz, 1000 VA or 100 – 130 V, 60 Hz, 1000 VA |
| Water Consumption | 5 Litres/Hour |
