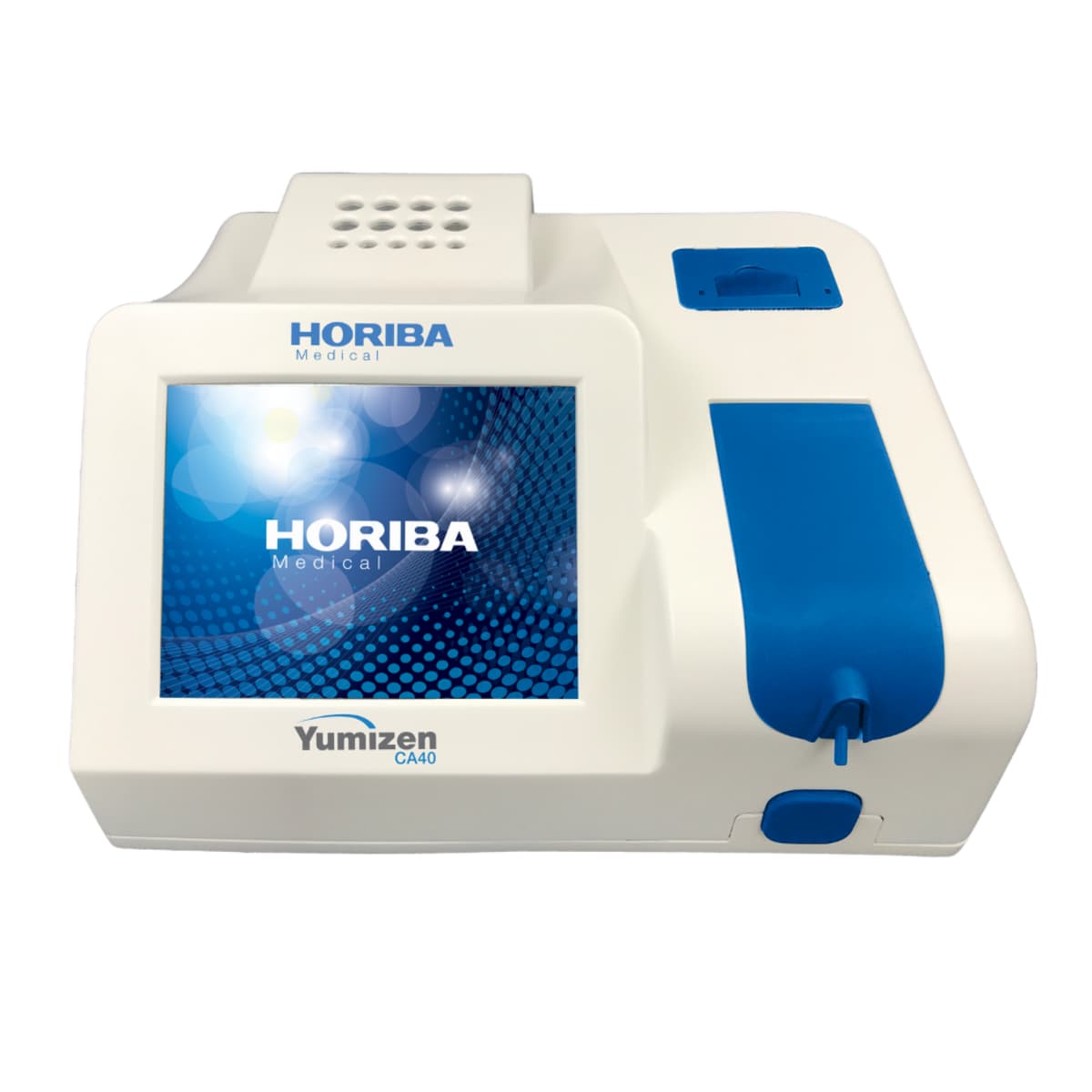

Yumizen CA40
Semi-automated Clinical Chemistry Analyzer
One Analyzer Three Solution
Yumizen CA40 is a semi-automated Clinical Chemistry analyzer with facility to perform Chemistry, Immunoturbidimetry and Coagulation Tests (PT & APTT). It is an ideal solution for small laboratories with the facility to perform a wide range of biochemical tests.
Why Choose Yumizen CA40
- 8”(inch) colored touch screen display.
- 8 Incubation Positions for Chemistry tests.
- 5 Incubation Positions for Coagulation tests.
- Coagulation (PT & APTT) Test Available
- 6 filters with two open positions.
Key Advantages of Yumizen CA40
Multi‑Mode Testing
Consolidates biochemistry, coagulation, and immunoturbidimetry on one analyzer.
18 µL Flowcell
Quartz flowcell minimizes reagent consumption.
Complex Biomarker Tests
Enables HbA1c, CRP, and RF testing without linear constraints.
Built‑In Incubator
Integrated incubator eliminates extra devices and saves lab space.
Applications of Yumizen CA40
Small Hospitals & Mid‑Size Labs
Delivers comprehensive biochemistry, coagulation, and immunoturbidimetry panels with low reagent volumes and easy operation for moderate testing volumes.
Standalone Laboratories
Offers a compact, semi‑automated solution with random access and versatile assay capabilities, minimizing maintenance and setup time for independent labs.
Government Tenders
Meets public procurement requirements through cost‑efficient reagent use, integrated incubator, and multi‑mode testing flexibility, ensuring compliance and long‑term reliability.
Technical Specifications of Yumizen CA40
| Interface | 8” Touch Screen Colored Display with User Friendly Software |
|---|---|
| Sample types | Serum, Plasma, Urine, CSF, Whole Blood and Body fluids |
| Assay modes | Absorbance, End point, Fixed Time, Kinetic & Multi point |
| Calibration | Factor, Single Point, Multi Point (Upto 6 Calibration Point and Upto 3 replicates per point) |
| Calibration Curve | Spline, Point to Point, Linear Regression, Quadratic Regression, Polygonal |
| Flowcell Volume | 18µL |
| Cuvette Options | Flowcell, Macro Cuvette & Coagulation Cuvettes with Holder |
| Aspiration Volume | 200 – 1000 µL |
| Light Source | Halogen Lamp |
| Photometer | Photometer wavelength range from 340-700 nm with minimum 6 wavelengths |
| Measuring Range | -0.1000 – 3.0000 Abs |
| Storage | 5,000 Patient Results |
| Quality Control | 3 Level for each Parameters, Levey-Jennings Chart, Westgard Rules |
| Thermostat Range | 25° – 37° C |
| Inbuilt Incubator | 8 Position for Chemistry & 5 Positions for Coagulation tests |
| Printer | Inbuilt Thermal Printer |
| Ambient Temperature | 10 – 35° C |
| Max. Relative Humidity | < 85 % |
| Connectivity | 2 USB Port |
| Power Supply | 30W, 15 Volt, 100V – 240 V |
| Certification | CE marked |
