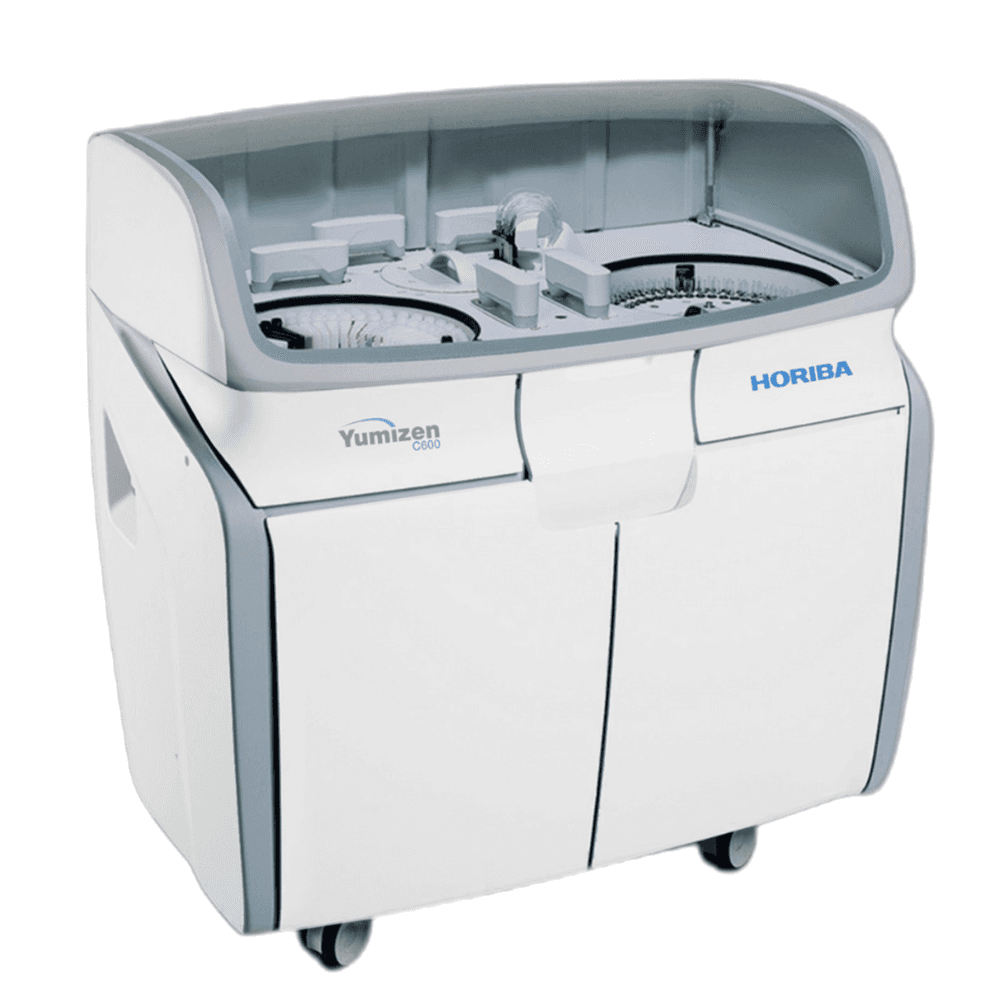

Yumizen C600
Automated Clinical Chemistry Analyzer
This solution is specifically designed for mid to high- end laboratories seeking superior performance combined with user-friendly operations.
It offers an impressive throughput of 400 photometric tests per hour, which increases to 600 tests with ISE integration, ensuring prompt and precise diagnostic results.
Its high-speed processing capabilities maintain an uninterrupted workflow, even during peak operational hours, effectively minimizing manual intervention and delays.
The system supports automated sample loading, reagent dispensing, and result analysis, delivering a seamless and efficient laboratory experience.
Why Choose Yumizen C600
- 400 photometric tests/hour & 600 tests/hour with ISE.
- Continuous sample loading with barcode scanning.
- Maintenance‑free ceramic pistons for precise pipetting.
- MALS (Multi‑Array LED System) with 8 wavelengths for enhanced detection.
- Heavy‑duty dispensing probes with liquid‑level & clot detection.
- Onboard hot‑water laundry system for efficient cleaning.
Key Advantages of Yumizen C600
1.
High throughput.
Accelerates sample processing and reduces turnaround time
2.
Reagent Capacity
Maintains reagents at 2 °C–8 °C for optimal stability and performance.
3.
Multi‑Probe Dispensing
Two reagent and one sample probe streamline automated pipetting workflows
4.
Sample Tray Capacity
Organized into 9 segments of 14 positions each for flexible, continuous sample loading.
Technical Specifications of Yumizen C600
| Throughput | 400 tests/hr (Photometric), 320 tests/hr (ISE) & 600 tests/hr (Photometric + ISE) |
| Principles of analysis | Colorimetry, Turbidimetry, Potentiometry |
| ISE Module (optional) | |
| Sample type | Serum, Plasma or Urine |
| Electrode type | Na⁺, K⁺, Cl⁻, Li⁺ (optional) |
| Sample volume | Serum: 100 µL, Urine: 200 µL |
| Sample Handling | |
| Capacity of sample tray | 126 (up to 9 segments – 14 positions/segment) |
| Sample Barcode Reader | Yes |
| Primary Tube Size | Diameter from 12 mm to 16 mm (height up to 100 mm) |
| Sample containing type | Vacutainer, 2ml cup, 500µL Pediatric Cup, Test tubes, etc. |
| Type of syringe | Ceramic pistons with low maintenance |
| Sample volume | 2 µL to 40 µL |
| Predilution ratio | 1:2 to 1:200 |
| Level detector | Yes |
| Clot detector | Yes |
| Vertical collision detector | Yes |
| Optical System | |
| Light Source | LEDs |
| Photometric range | -0.2 A to 3.5 A |
| Wavelengths | 340, 405, 505, 535, 560, 600, 635, 670 nm |
| Filters bandwidth | ± 2 nm |
| Internal resolution | 0.0001 |
| Photo Detector | Main Photodiode + Reference Photodiode |
| Measurement precision | CV <1% to 0.1 A CV <0.1% to 2 A |
| Environmental Requirements | |
| Ambient temperature | From 10 °C to 35 °C From 10 °C to 30 °C (with ISE module) |
| Relative humidity | <85% without condensation |
| Altitude | <2500 m |
| Physical Information | |
| Dimensions | 1200 mm(W) x 720 mm(D) x 1258 mm(H) |
| Weight: | 210 Kg |
| Electrical Requirements | |
| Mains voltage | 115 V to 230 V |
| Mains frequency | 50 Hz or 60 Hz |
| Electric power | 500 VA |
| Fluidic Requirements | |
| Water inlet | External tank or Direct DI water supply |
| Water Type | Purified Type II |
| Water consumption | <14 liters/hr |
| Container for biohazard waste | 5L |
| Container for washing solution | 5L |
| Minimum Computer Requirements | |
| Operating system | Windows 10 or above, 64-bit (x64) |
| CPU | Equivalent to Intel Core i3 |
| RAM | 8 GB or higher |
| Hard Disk | 500 GB or higher |
| Monitor minimum resolution | Minimum resolution 1024 x 768 |
| Connector of serial channel | USB |
