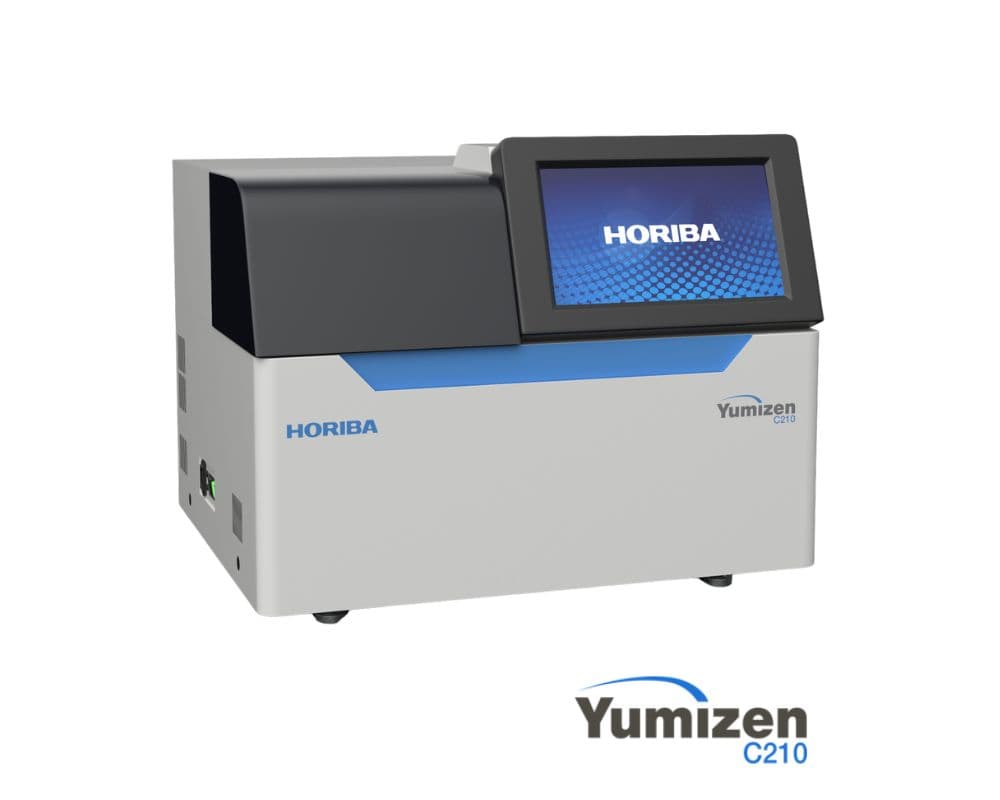

Yumizen C210

Benchtop Fully Automated Clinical Chemistry Analyzer

The Yumizen C210 is a compact, high-performance benchtop analyzer explicitly designed to meet the evolving demands of small and medium laboratories. Built to support routine clinical chemistry testing with precision and ease, it integrates an advanced optical system, automated laundry, and an intuitive touchscreen workstation to deliver reliable diagnostic outcomes within a space-saving footprint.

Why Choose Yumizen C210

Constant Throughput Execution - Delivers a stable processing speed of 200 tests per hour for photometric assays.
Concentric Tray Efficiency - Features 40 refrigerated reagent positions and 40 sampling positions arranged concentrically to maximize spatial workflow.
Advanced Error Reduction – Outfitted with a 15-inch full-color touchscreen that utilizes clear, color-based alerts to guide operators and eliminate manual errors.
Ultra-Low Sample Carryover – Integrates an electropolished probe alongside an 8-step onboard hot-water laundry system keeping carryover below 1%.
Intelligent Probe Safety – Leverages precise capacitive level tracking combined with vertical and horizontal obstruction sensors to prevent costly probe collisions.
Continuous Sample Loading – Fully supports continuous, barcode-enabled loading across primary tubes and sample cups.

Key Advantages of Yumizen C210

1.
Constant High Throughput

200 tests/hour (Photometry)

Provides small-to-midscale labs with reliable, continuous speed to optimize internal diagnostic turnarounds.

2.
Peltier-Cooled Reagent Storage

40 Refrigerated Slots (4 °C to 15 °C)

Features a detachable tray with active cooling to guarantee chemical stability and prolong reagent lifespans.

3.
Clean Multi-Function Pipetting

Single Teflon Probe & Stirrer

4.
Smart Reaction Engineering

81 Reusable Cuvettes

Grouped into 9 segments using high-transmittance material to minimize ongoing laboratory running expenses.

Technical Specifications of Yumizen C210

Category	Specification Details
Model Type	Fully automated, random-access, discrete benchtop clinical chemistry analyzer
Throughput	Constant 200 tests / hour (photometry)
Analysis Method	End-Point method, Two-point method, Kinetics method, Sample bank
Assay Method	Colorimetry, Turbidimetry, Single & Double Reagent, Multi-Standard, Mono and Bi-Chromatic
Reagent Capacity	40 Positions with Peltier-based cooling system (4°C to 15°C)
Sample Capacity	40 Positions (Supports STAT samples, controls, & calibrators in any position)
Sample Tube Compatibility	5 mL, 7 mL, 10 mL primary tubes & 2 mL / 0.5 mL sample cups; supports continuous loading
Sample Pipetting Volume	2–45 µL (Adjustable in 0.1 µL steps)
Reagent Pipetting Volume	R1: 120–450 µL \| R2: 10–250 µL (Both adjustable in 0.5 µL steps)
Reaction Cuvettes	81 reusable cuvettes with a 5 mm optical path, arranged in 9 segments
Reaction Matrix Volume	120 – 500 µL
Reaction Temperature	37°C ± 0.2°C
Cuvette Washing System	Onboard 8-step laundry system with hot-water wash (Carryover < 1%)
Light Source & Detector	Halogen tungsten lamp with fiber optic delivery \| Silicon Diode photo detector
Wavelength Spectrum	8 wavelengths: 340, 405, 450, 510, 546, 578, 620, and 670 nm
Absorbance Scope	0 – 4.000 Abs
Display Workspace	Built-in 15-inch LCD Full-color Touchscreen Workstation
Calibration Architecture	K-Factor, Linear (1, 2, and multi-point), Logit Log, Spline, Exponential, Polynomial
Quality Control Tracking	Real-time QC via multi-rule method; Day-to-day X and X-R control Levey-Jennings (L-J) Charts
Data Storage Limits	Unlimited test results and unlimited reaction curves; 20 profiles per sample type
Water Consumption	Highly economical; approximately 4 to 6 Litres / hour
Operating System Fluidity	Windows XP, Windows 7, Windows 8, or Windows 10
Physical Dimensions	800 mm (W) x 660 mm (D) x 646 mm (H)
Net Weight	101 Kgs
