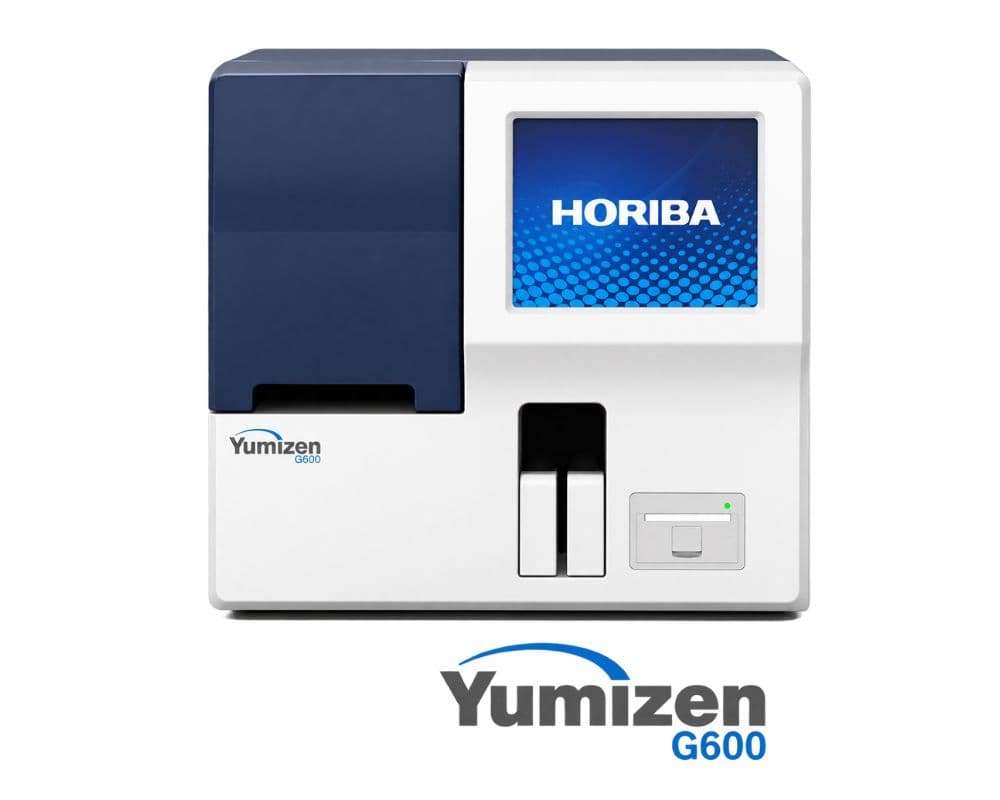

Yumizen G600
Fully Automated Hemostasis Analyzer
Yumizen G600 is a compact, fully automated hemostasis analyzer designed for laboratories seeking efficient coagulation testing with easy operation. Featuring six measurement channels, throughput of up to 90 PT tests per hour, and support for clotting, immunological and chromogenic assays, it combines routine and specialised testing with continuous sample loading and STAT priority.
The Yumizen G600 brings automated hemostasis testing to hospital laboratories and diagnostic centres with moderate testing volumes. Its compact benchtop design and random-access operation help laboratories manage routine workloads and urgent samples within a convenient workflow.
Why Choose Yumizen G600
- Six measurement channels allow simultaneous clotting, immunological, and chromogenic assays to ensure high efficiency.
Continuous sample loading of 14 patient samples with STAT analysis and an inbuilt barcode scanner.
Automated calibration through barcode recognition for reagent lots, reducing manual intervention.
High throughput with 63 cuvettes at one time with continuous plate loading.
Angular reagent position featuring 12 slots to maximize testing efficiency down to the last drop.
Key Advantages of Yumizen G600
1.
Efficient Coagulation Testing
Fully automated, random-access operation helps laboratories manage daily coagulation workloads efficiently and reduce manual testing steps.
2.
Versatile Assay Capabilities
Supports clotting, immunological and chromogenic assays, bringing routine screening and specialised hemostasis testing together on one compact system.
3.
Flexible Sample Handling
Continuous sample loading and an integrated barcode scanner streamline sample handling, while STAT capability prioritises urgent samples within the routine workflow.
4.
Simplified Testing Workflow
Reagent-lot barcode recognition, automated calibration, predilution and repeat testing reduce manual intervention and simplify everyday laboratory operation.
Technical Specifications of Yumizen G600
| Specification | Details |
|---|---|
| Analyzer | Fully automated Hemostasis analyzer with random access |
| Throughput | PT: 90 samples / hour |
| Principles of Analysis |
Clotting / Nephelometry: 660 nm (Light scattered by clotting assay) Turbidimetric / Immunological: 575 nm (Lost intensity due to absorption) Chromogenic / Colorimetry: 405 nm (Light intensity passing through colored reaction) |
| Parameters |
Screening tests: PT, APTT, Fibrinogen, TT Factors: II, V, VII, X, VIII, IX, XI, XII Others: D-Dimer, ATIII, Lupus Anticoagulant, PS, LA |
| Detection Channels | 6 channels |
| Light Source | LED |
| Reagent Capacity | 12 positions |
| Sample Handling | 14 sample positions with dedicated STAT facility |
| Cuvettes | 63 cuvettes/plate, one plate at a time |
| Sample Types | STAT, patient sample, control |
| Sample Volume | 5 µL to 200 µL |
| Calibration | Auto calibration |
| Analysis Modes | Routine, Rerun, Redilution |
| Automation Features | Pre-dilution, repeat testing, level detection, and bidirectional communication with clotting curve |
| Unit of Measurement | Second, %, INR, µg, FEU/ml, g/L |
| Screen | Color LCD 8-inch touch screen display |
| Data Storage | 150,000 results |
| Export/Connectivity | 6 x USB plug |
Environmental & Physical Requirements
| Requirement | Details |
|---|---|
| Operating Temperature | Under 16°C |
| Electrical Power | 100-240V～ 50/60Hz, 300VA |
| Dimensions | 415 mm (L) x 426 mm (W) x 431 mm (H) |
| Weight | 25 Kg |
