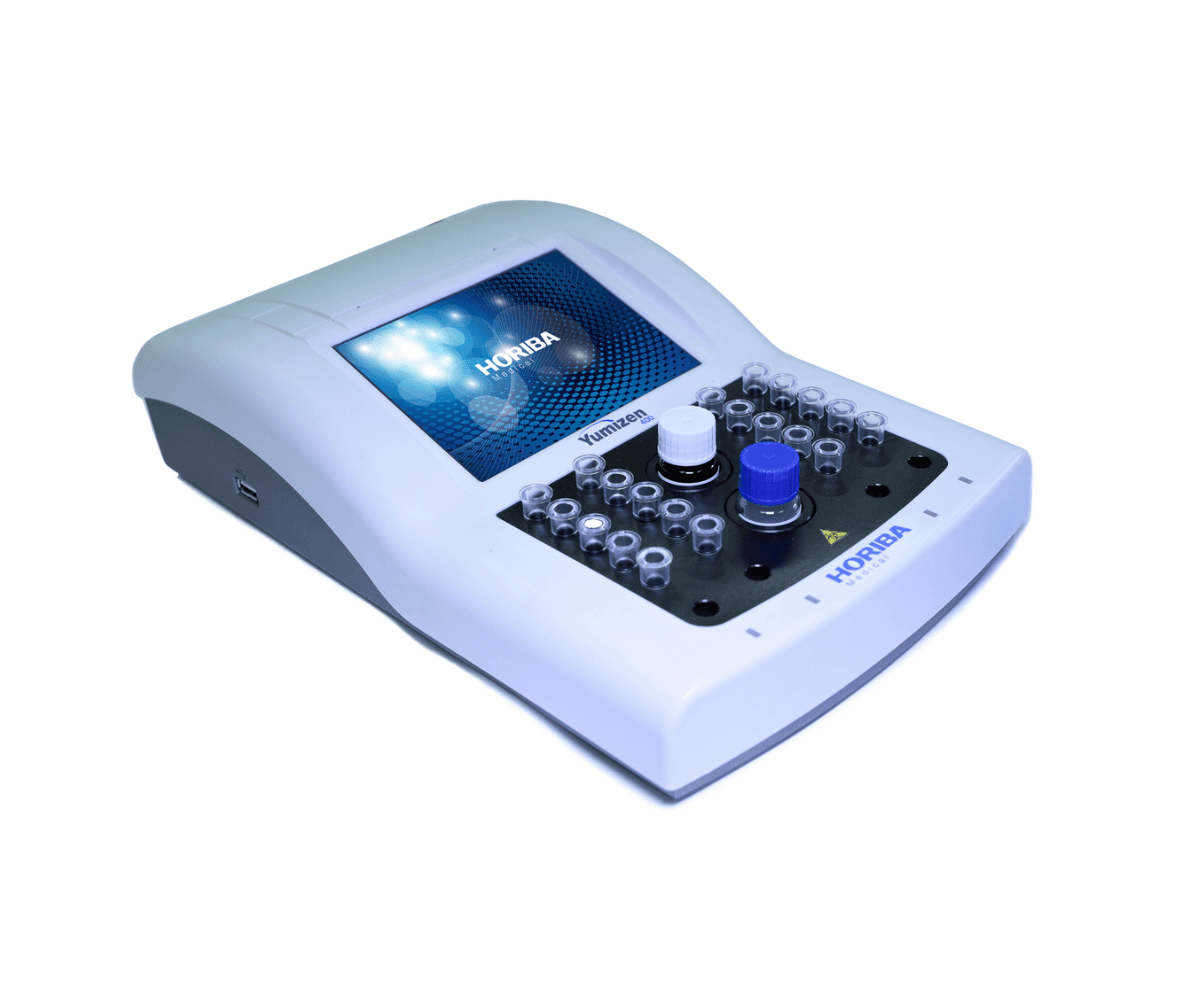

The Yumizen G400 is a compact, semi-automated hemostasis analyzer tailored for small laboratories requiring efficient coagulation screening and D-Dimer testing. With four independent measurement channels and 20 incubation positions, it delivers fast, reliable performance using ready-to-use reagents and a user-friendly interface for seamless operation.

Enables concurrent testing to boost lab workflow efficiency.

Parallel Sample Processing

Handles clotting, turbidimetric, and chromogenic methods in a single unit.

Versatile Testing Modes

Calibration-Free Operation

Includes printer and USB/LIS options, ideal for labs.

Compact & Connected

Yumizen G400 DDi

HORIBA provides a new comprehensive range of hemostasis reagents and systems, the Yumizen G range. Hemostasis is the natural process by which a clot forms to prevent bleeding and block the vascular breach. It ensures the fluidity of the blood and the integrity of the blood vessels. Blood disorders can lead to bleeding or blood clots. These new range allows screening and assessment of bleeding disorders, monitoring of anticoagulation therapy.

Hemostasis

The Semi-Automated Hemostasis Instrument is a compact, 2-channel device designed for small laboratories to efficiently perform hemostasis screening and D-Dimer tests. Featuring an innovative, user-friendly interface, it offers two independent measuring channels and supports three reference methods clotting, immuno-turbidimetric, and chromogenic for precise results with a maximum measurement time of 120 seconds.&nbsp;&nbsp;The instrument simplifies operations with a master calibration curve, eliminating the need for calibration, and includes robust QC management. It enhances security and convenience with barcode reading, external data storage via USB, and ready-to-use reagents. With a 1,000-data storage capacity, external printer connectivity, multiple connectivity options, and maintenance-free design, this instrument maximizes efficiency and reliability for small-scale laboratory testing

Yumizen G200

Model

Throughout

Temperature

100-240VAC, 47-63 Hz, 25W External power supply

Power

2 x USB plug:
1 x Master USB connector: to connect an external printer, barcode reader or external storage device to the instrument.
1 x Slave USB connector: to connect the instrument to a computer as an external device.

Export

Screen

Power Supply

Storage capacity

Yumizen G200                        1 pc
Power supply unit                   1 pc
Magnetic mixer (2 pcs / set)    1 set
User Manual                           1 pc

Consumables (kit)

EN 61326-2-6: 2006
IEC 61010-1: 2001
IEC 61010-2-101: 2002
EN ISO 13485: 2003 and 2012
NF EN ISO 14971: 2013

Norms

98/79/EC (DIV)
2011/65/EU (RoHS)
1907/2006 (REACH)
2014/30/EU (Electro Magnetic Compatibility)
2014/35/EU (Voltage limits)

Directives

The Yumizen G405 is a semi-automated, compact 4-channel hemostasis analyzer designed for routine and specialized coagulation testing. Utilizing nephelometric, chromogenic, and immunoturbidimetric techniques, it delivers accurate results in a maintenance-free format with an intuitive touchscreen interface.

Yumizen G405

CBC +#DIFF mode : 10 μL; CBC + 3DIFF+CRP mode: 18 μL

Sample Volume

Length: 210 mm, Height: 94 mm Depth: 362 mm

Dimensions

Weight

4 USB/Ethernet (LIS/Barcode reader/Data export/Keyboard/Mouse) External data storage (USB/LAM)

Connection/Exportation

7” Capacitive touch screen (800 x 400 pixels) Integrated printer

User Interface

Storage Capacity

PT, APTT, FIB, TT
LA - dRVVT (screen and confirm)
Factors (II,V,VII,X,VIII,IX,XI,XII)
DDimer
Antithrombin

A wide spectrum of assay parameters

Yumizen G405 1pc
Power supply unit 1pc
Pen for touch screen 1pc
Magnetic stirrer 2pc
User manual 1pc

Consumables

The Fully Automated Hemostasis Instrument, designed for laboratories, featuring four independent measuring channels. It has 14 cooled and 4 reagent-embedded positions, and continuous loading for 60 samples plus five STAT samples.&nbsp;&nbsp;It is equipped with automatic reflex and rerun capabilities, ready to use reagents with a master calibration curve, ensuring comprehensive security with positive identification of samples.&nbsp;Three reference methods (clotting, immuno-turbidimetric and chromogenic) for boosting efficiency to achieve a throughput of 160 PT tests/hour. Yumizen G800 comes with&nbsp; internal data storage, an integrated computer and maintenance-free operation.&nbsp; &nbsp;It comes with user-friendly innovative interface, smart QC management and multiple connectivity like LIS and VPN.

Yumizen G800

Lenght: 850 mm, Height: 510 mm, Depth: 750 mm

Clotting tests (640 nm),Screening tests (PT, APTT, Fibrinogen, TT) Factors (II, V, VII, X, VIII, IX, XI, XII),Immuno-turbidimetric test (570 nm),D-Dimer,Chromogenic test (405 nm),Chromogenic test (405 nm),ATIII

Parameters

EN 61326-2-6: 2006,IEC 61010-1: 2001,IEC 11010-2-101: 2002,EN ISO 13485: 2003 and 2012,NF EN ISO 14971: 2013

98/79/EC (DIV),98/79/EC (DIV),1907/2006 (REACH),2014/30/EU (Electro Magnetic Compatibility),2014/35/EU (Voltage limits)

Dimensions & Weight	Lenght: 200 mm, Height: 80 mm, Depth: 320 mm Weight: 2.55 Kg
Throughput	120 sec maximum measurement
Temperature	15°C - 30°C
Power	100-240VAC, 47-63Hz, 25W External power supply
Export	2 x USB plug: 1 x Master USB connector: to connect an external printer, barcode reader or external storage device to the instrument. 1 x Slave USB connector: to connect the instrument to a computer as an external device.
Screen	Color LCD touch screen 115 x 86 mm
Storage capacity	1000 results
Parameter	Clotting tests (640 nn) Screening tests (PT, APTT, Fibrinogen, TT) Factors (II, V, VII, X, VIII, IX, XI, XII) Immuno-turbidimetric test (570 nm) D-Dimer* Chromogenic test (405 nm) ATIII*
Consumables (kit)	Yumizen G400 1 pc Power supply unit 1 pc Magnectic mixer (2 pcs / set) 1 set User manual 1 pc
Norms	EN 61326-2-6: 2006 IEC 61010-1: 2001 IEC 61010-2-101: 2002 EN ISO 13485: 2003 and 2012 NF EN ISO 14971: 2013
Directives	98/79/EC (DIV) 2011/65/EU (RoHS) 1907/2006 (REACH) 2014/30/EU (Electro Magnectic Compatibility) 2014/35/EU (Voltage limits)

Yumizen G400 DDi

Yumizen G400 DDi

Why Choose Yumizen G400 DDi

Key Advantages of Yumizen G400 DDi

Parallel Sample Processing

Versatile Testing Modes

Calibration-Free Operation

Compact & Connected

Technical Specifications of Yumizen G400 DDi
