Complete Hematology solution with Digitalisation

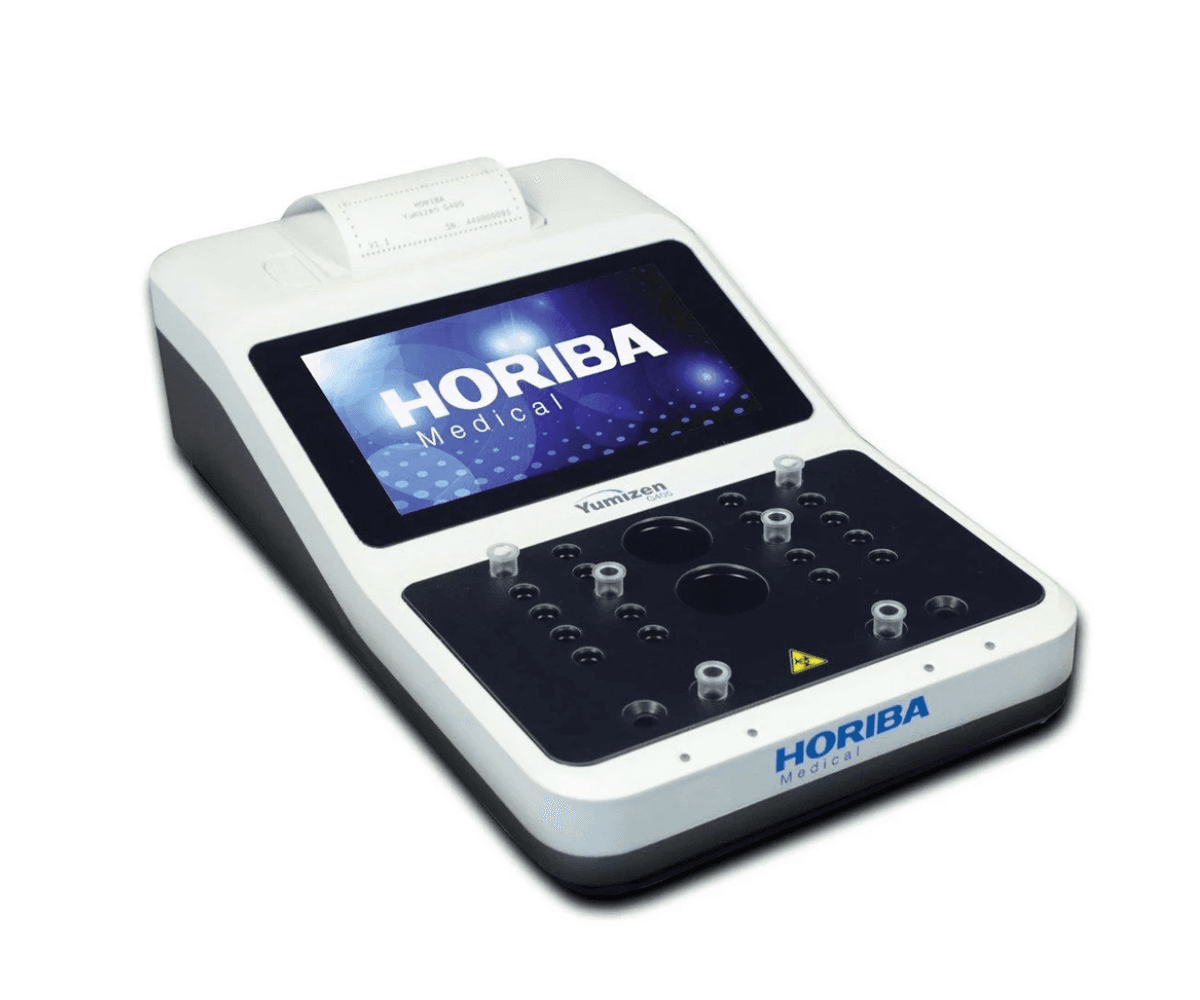

The Yumizen G405 is a semi-automated, compact 4-channel hemostasis analyzer designed for routine and specialized coagulation testing. Utilizing nephelometric, chromogenic, and immunoturbidimetric techniques, it delivers accurate results in a maintenance-free format with an intuitive touchscreen interface.

Enables user to perform different Hemostasis tests with higher accuracy

Self-guide menu for samples and reagent loading with Reports in Secs, Ratio, INR and Percentage

Throughput:  60PT/hr 75 possible open channels

Provides Flexibility to perform different Hemostasis tests together with higher accuracy

Key Advantages

Handles multiple coagulation assays with flexibility and precision.

Comprehensive Test Capability

Glove-friendly interface ensures smooth and efficient use.

Intuitive Operation

Ensures reliable results with robust quality controls and analysis.

Advanced QA Monitoring

Weighing just over 4 kg, it fits easily into any lab bench setup.

Compact & Portable

Yumizen G405

Model

Throughout

Temperature

CBC +#DIFF mode : 10 μL; CBC + 3DIFF+CRP mode: 18 μL

Sample Volume

Length: 210 mm, Height: 94 mm Depth: 362 mm

Dimensions

Weight

Power Supply

4 USB/Ethernet (LIS/Barcode reader/Data export/Keyboard/Mouse) External data storage (USB/LAM)

Connection/Exportation

7” Capacitive touch screen (800 x 400 pixels) Integrated printer

User Interface

Storage Capacity

PT, APTT, FIB, TT
LA - dRVVT (screen and confirm)
Factors (II,V,VII,X,VIII,IX,XI,XII)
DDimer
Antithrombin

A wide spectrum of assay parameters

Yumizen G405 1pc
Power supply unit 1pc
Pen for touch screen 1pc
Magnetic stirrer 2pc
User manual 1pc

Consumables

Compact Semi automatic Coagulation analyzer

7” capacitive touch screen

4 Measuring Channels, 2 Position for Reagent, 20 Incubation Position

Easy to use and Maintenance free

Why Choose Yumizen G405 from HORIBA

HORIBA provides a new comprehensive range of hemostasis reagents and systems, the Yumizen G range. Hemostasis is the natural process by which a clot forms to prevent bleeding and block the vascular breach. It ensures the fluidity of the blood and the integrity of the blood vessels. Blood disorders can lead to bleeding or blood clots. These new range allows screening and assessment of bleeding disorders, monitoring of anticoagulation therapy.

Hemostasis

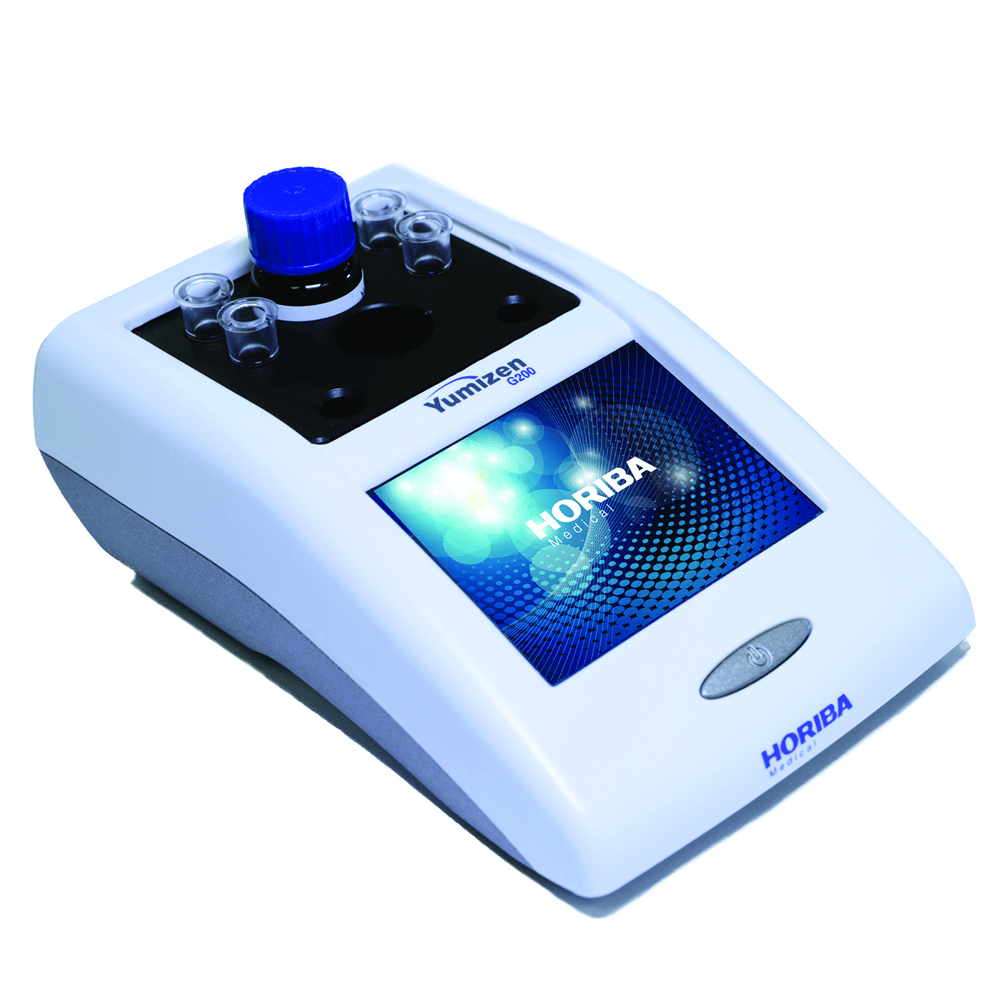

The Semi-Automated Hemostasis Instrument is a compact, 2-channel device designed for small laboratories to efficiently perform hemostasis screening and D-Dimer tests. Featuring an innovative, user-friendly interface, it offers two independent measuring channels and supports three reference methods clotting, immuno-turbidimetric, and chromogenic for precise results with a maximum measurement time of 120 seconds.&nbsp;&nbsp;The instrument simplifies operations with a master calibration curve, eliminating the need for calibration, and includes robust QC management. It enhances security and convenience with barcode reading, external data storage via USB, and ready-to-use reagents. With a 1,000-data storage capacity, external printer connectivity, multiple connectivity options, and maintenance-free design, this instrument maximizes efficiency and reliability for small-scale laboratory testing

Yumizen G200

100-240VAC, 47-63 Hz, 25W External power supply

Power

2 x USB plug:
1 x Master USB connector: to connect an external printer, barcode reader or external storage device to the instrument.
1 x Slave USB connector: to connect the instrument to a computer as an external device.

Export

Screen

Storage capacity

Yumizen G200                        1 pc
Power supply unit                   1 pc
Magnetic mixer (2 pcs / set)    1 set
User Manual                           1 pc

Consumables (kit)

EN 61326-2-6: 2006
IEC 61010-1: 2001
IEC 61010-2-101: 2002
EN ISO 13485: 2003 and 2012
NF EN ISO 14971: 2013

Norms

98/79/EC (DIV)
2011/65/EU (RoHS)
1907/2006 (REACH)
2014/30/EU (Electro Magnetic Compatibility)
2014/35/EU (Voltage limits)

Directives

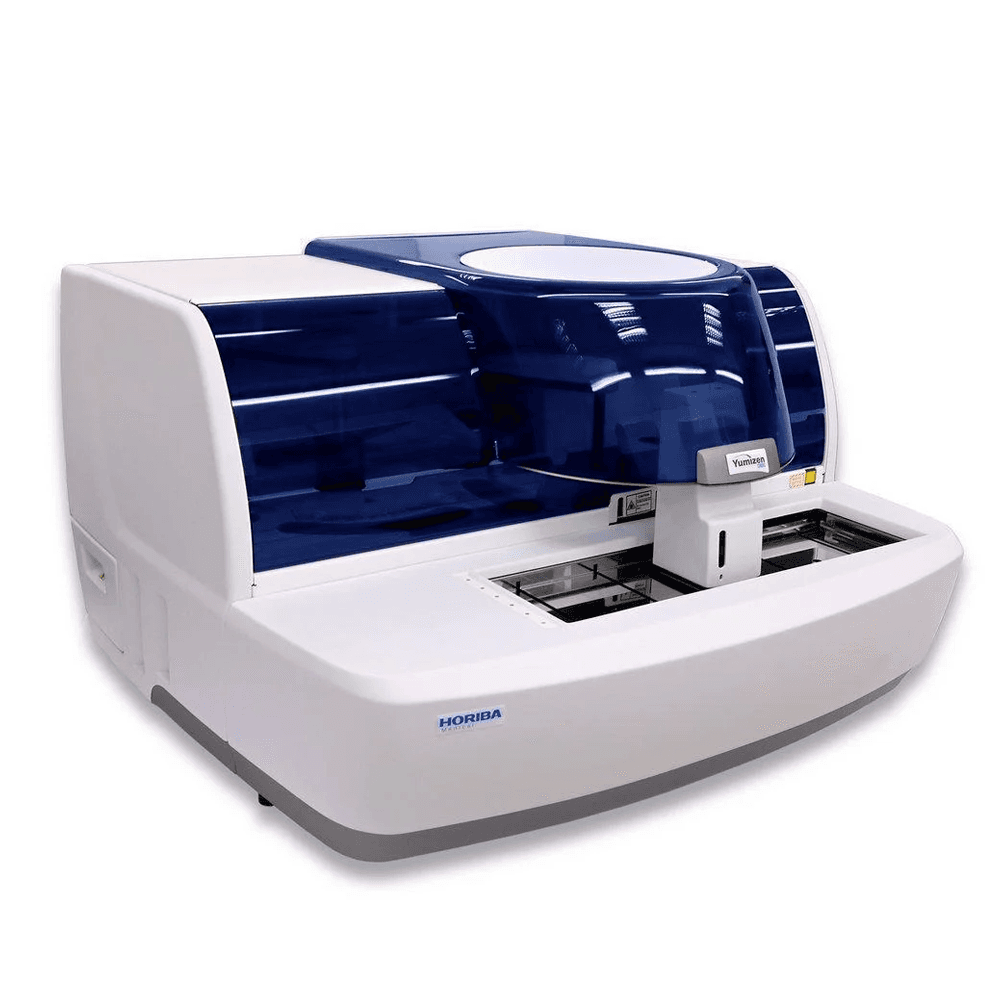

The Fully Automated Hemostasis Instrument, designed for laboratories, featuring four independent measuring channels. It has 14 cooled and 4 reagent-embedded positions, and continuous loading for 60 samples plus five STAT samples.&nbsp;&nbsp;It is equipped with automatic reflex and rerun capabilities, ready to use reagents with a master calibration curve, ensuring comprehensive security with positive identification of samples.&nbsp;Three reference methods (clotting, immuno-turbidimetric and chromogenic) for boosting efficiency to achieve a throughput of 160 PT tests/hour. Yumizen G800 comes with&nbsp; internal data storage, an integrated computer and maintenance-free operation.&nbsp; &nbsp;It comes with user-friendly innovative interface, smart QC management and multiple connectivity like LIS and VPN.

Yumizen G800

Lenght: 850 mm, Height: 510 mm, Depth: 750 mm

Clotting tests (640 nm),Screening tests (PT, APTT, Fibrinogen, TT) Factors (II, V, VII, X, VIII, IX, XI, XII),Immuno-turbidimetric test (570 nm),D-Dimer,Chromogenic test (405 nm),Chromogenic test (405 nm),ATIII

Parameters

EN 61326-2-6: 2006,IEC 61010-1: 2001,IEC 11010-2-101: 2002,EN ISO 13485: 2003 and 2012,NF EN ISO 14971: 2013

98/79/EC (DIV),98/79/EC (DIV),1907/2006 (REACH),2014/30/EU (Electro Magnetic Compatibility),2014/35/EU (Voltage limits)

Directive

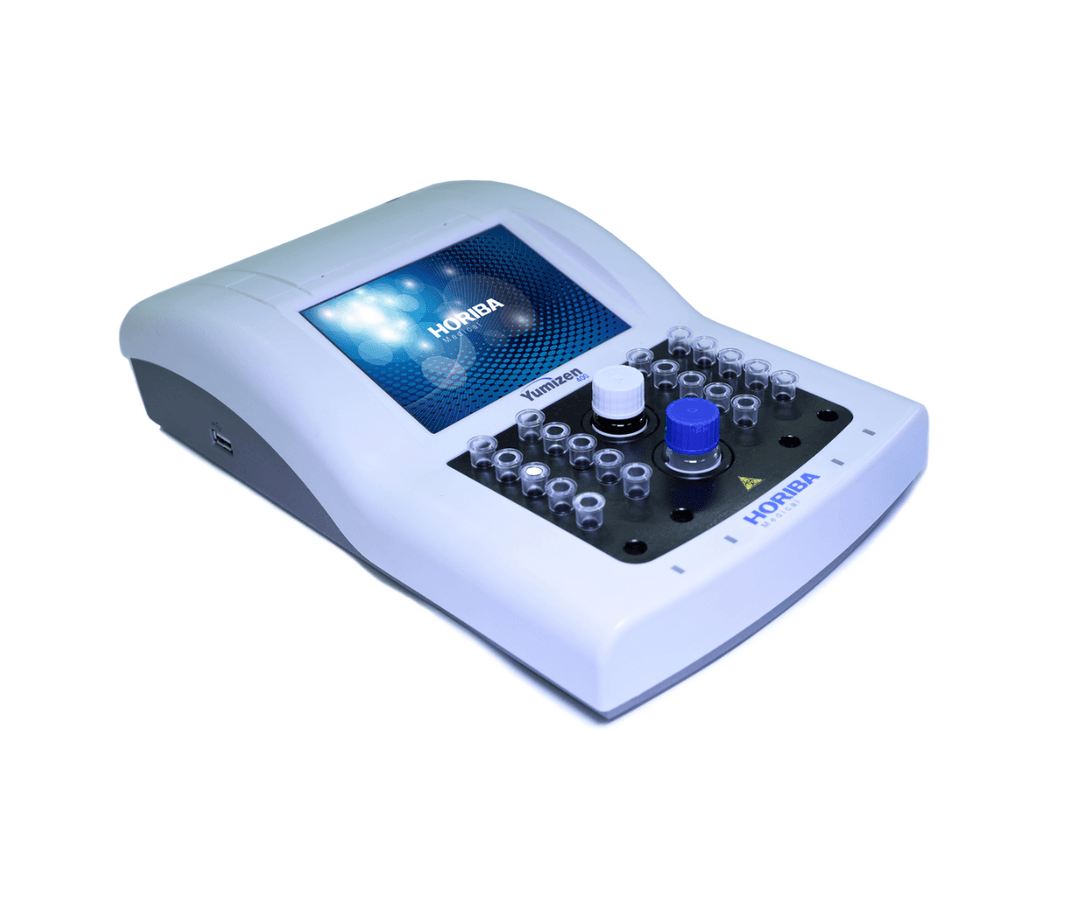

The Yumizen G400 is a compact, semi-automated hemostasis analyzer tailored for small laboratories requiring efficient coagulation screening and D-Dimer testing. With four independent measurement channels and 20 incubation positions, it delivers fast, reliable performance using ready-to-use reagents and a user-friendly interface for seamless operation.

Dimensions & Weight	Length: 210 mm, Height: 94 mm Depth: 362 mm, Weight: 4.2 Kg
Temperature	15°C to 30°C
Power	100-240V
Connection/Exportation	4 USB/Ethernet (LIS/Barcode reader/Data export/Keyboard/Mouse) External data storage (USB/LAM)
Screen/printer	7” Capacitive touch screen (800 x 400 pixels) Integrated printer
A wide spectrum of assay parameters	PT, APTT, FIB, TT LA - dRVVT (screen and confirm) Factors (II,V,VII,X,VIII,IX,XI,XII) DDimer Antithrombin
Consumable	Yumizen G405 1pc Power supply unit 1pc Pen for touch screen 1pc Magnetic stirrer 2pc User manual 1pc

Yumizen G405

Yumizen G405

Why Choose Yumizen G405

Key Advantages of Yumizen G405

Comprehensive Test Capability

Intuitive Operation

Advanced QA Monitoring

Compact & Portable

Technical Specifications of Yumizen G405
