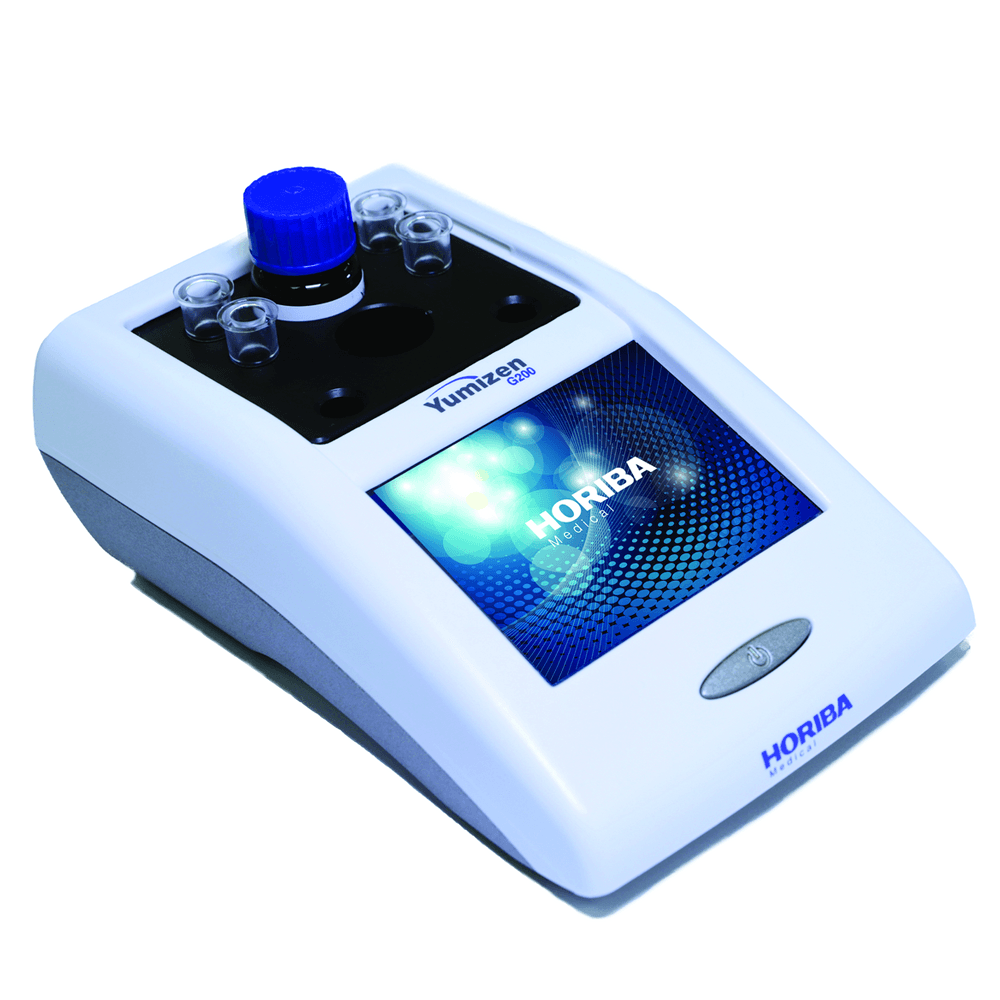

Yumizen G200
Semi Automated Hemostasis Analyzer
The Semi-Automated Hemostasis Instrument is a compact, 2-channel device designed for small laboratories to efficiently perform hemostasis screening and D-Dimer tests. Featuring an innovative, user-friendly interface, it offers two independent measuring channels and supports three reference methods clotting, immuno-turbidimetric, and chromogenic for precise results with a maximum measurement time of 120 seconds.
The instrument simplifies operations with a master calibration curve, eliminating the need for calibration, and includes robust QC management. It enhances security and convenience with barcode reading, external data storage via USB, and ready-to-use reagents. With a 1,000-data storage capacity, external printer connectivity, multiple connectivity options, and maintenance-free design, this instrument maximizes efficiency and reliability for small-scale laboratory testing
Why Choose Yumizen G200
- Compact Semi automatic Coagulation analyzer
- A unique system for routine and special Hemostasis parameters
- 2 Measuring Channels, 2 Position for Reagent, 4 Incubation Position
- Easy to use and Maintenance free
Key Advantages of Yumizen G200
Customized Hemostasis Testing
Enables performing different hemostasis tests with improved precision
Self‑Guided Loading
Simplified menu for sample and reagent loading with Secs, Ratio, INR, and % reports
Throughput PT
Processes 30 PT per hour with single‑cuvette
Barcode & Auto‑Calibration
Barcoded auto calibrated reagents to save time and CPT
Applications of Yumizen G200
Government Hospitals & Medical Colleges
Throughput of 30 PT/HR and coagulation assays with self‑guided menu and immediate report in seconds ratio & INR, supporting large‑scale patient screening.
Standalone Laboratories
Compact semi‑automated analyzer offering barcode‑driven reagent with auto calibration and rapid 30 PT tests/hour throughput, ideal for independent diagnostic labs.
Corporate Hospitals
Robust hemostasis module with integrated thermal printing and digital interface for streamlined workflows and patient data management.
Technical Specifications of Yumizen G200
| Dimensions & Weight | Length: 102 mm, Height: 55 mm, Depth: 165 mm Weight: 0.4 Kg |
| Throughtput | 120 sec maximum measurement |
| Temperature | 15°C-30°C |
| Power | 100-240VAC, 47-63 Hz, 25W External power supply |
| Export | 2 x USB plug: 1 x Master USB connector: to connect an external printer, barcode reader or external storage device to the instrument. 1 x Slave USB connector: to connect the instrument to a computer as an external device. |
| Screen | Color LCD touch screen 53 x 71 mm |
| Storage capacity | 1000 results |
| Parameter | Clotting tests (640 nm) Screening tests (PT, APTT, Fibrinogen, TT) Factors (II, V, VII, X, VIII, IX, XI, XII) Immuno-turbidimetric test (570 nm) D-Dimer Chromogenic test (405 nm) AT III |
| Consumables (kit) | Yumizen G200 1 pc Power supply unit 1 pc Magnetic mixer (2 pcs / set) 1 set User Manual 1 pc |
| Norms | EN 61326-2-6: 2006 IEC 61010-1: 2001 IEC 61010-2-101: 2002 EN ISO 13485: 2003 and 2012 NF EN ISO 14971: 2013 |
| Directives | 98/79/EC (DIV) 2011/65/EU (RoHS) 1907/2006 (REACH) 2014/30/EU (Electro Magnetic Compatibility) 2014/35/EU (Voltage limits) |
