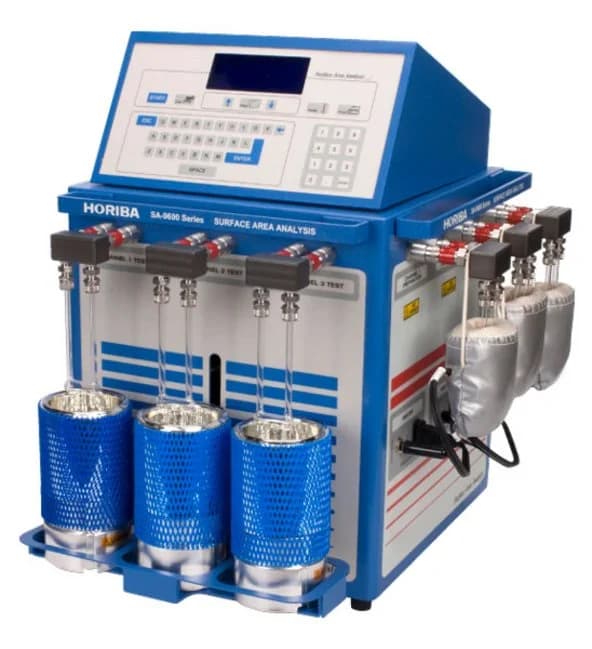

SA-9600 Series

BET Surface Area Analyzer

The SA-9600 Series are fully automatic BET flowing gas surface area analyzers offering exceptional speed and convenience, delivering routine total surface area determination in as little as 2–6 minutes with push‑button ease. Patented flowing gas technology and automatic calibration before every measurement ensure reproducible accuracy, while compact integrated design and optional multi‑station models support varying throughput needs.

SA-9600 Series

BET Surface Area Analyzer

Why Choose SA-9600 Series

Fully automatic operation with push‑button ease and no manual steps
Ultra‑fast analysis in 2–6 minutes for single or multi‑point measurements
Automatic calibration before every measurement for consistent, reproducible result
Compact integrated footprint combines analysis and preparation in one cabinet
Low cost of ownership via integrated mass flow controllers and pump‑less valves
Optional multi‑station configurations (SA‑9603, SA‑9601MP) for high throughput

Key Advantages of SA-9600 Series

Ultra‑fast throughput

30 analyses/hour

Enables high sample throughput for busy labs

Fully automatic workflow

2–6 minutes per analysis

Eliminates manual steps and reduces operator time

Integrated calibration

Automatic before each measurement

Ensures reproducible accuracy without user intervention

Compact footprint

Single cabinet design

Saves bench space by housing analysis and prep stations

Applications of SA-9600 Series

Pharmaceutical powder dissolution profiling

Surface area impacts shelf life and dissolution rates

Catalyst optimization

Characterizes adsorbent surface area for reaction efficiency

Adsorbent evaluation

Surface area measurement for gas separation media

Paint and coating formulation

Assesses pigment surface area for hiding power and stability

Battery electrode development

Analyzes electrode surface area for performance optimization

Ceramic and porous material characterization

Surface area analysis for pore structure assessment

Technical Specifications of SA-9600 Series

BET Surface Area Measurement Range
Total Surface Area: 0.1 to 50 m2
Specific Surface Area: Approximately 0.01 – 2,000 m2/g
Much more sensitive to low surface area samples than volumetric type analyzers, allowing the use of samples less than 1g and as low as 0.1 square meters in the sample cell.

Accuracy and Precision
Reproducibility is better than 1% COV.
Accuracy is better than 10% for most samples.

The SA-9600 Series offers a full line of high-quality, high-performance BET Surface Area Analyzers with four fully automatic analyzers to meet the needs of any research or quality assurance laboratory. The SA-9600 Series analyzers include:

SA-9601: One sample analysis station, two sample preparation stations.
SA-9601MP: One sample analysis station, two sample preparation stations, MFC gas mixture control and multi-point analysis.
SA-9603: Three sample analysis stations, three sample preparation stations.
SA-9603MP: Three sample analysis stations, three sample preparation stations, MFC gas mixture control and multi-point analysis.
SA-9660: Three sample preparation stations.
