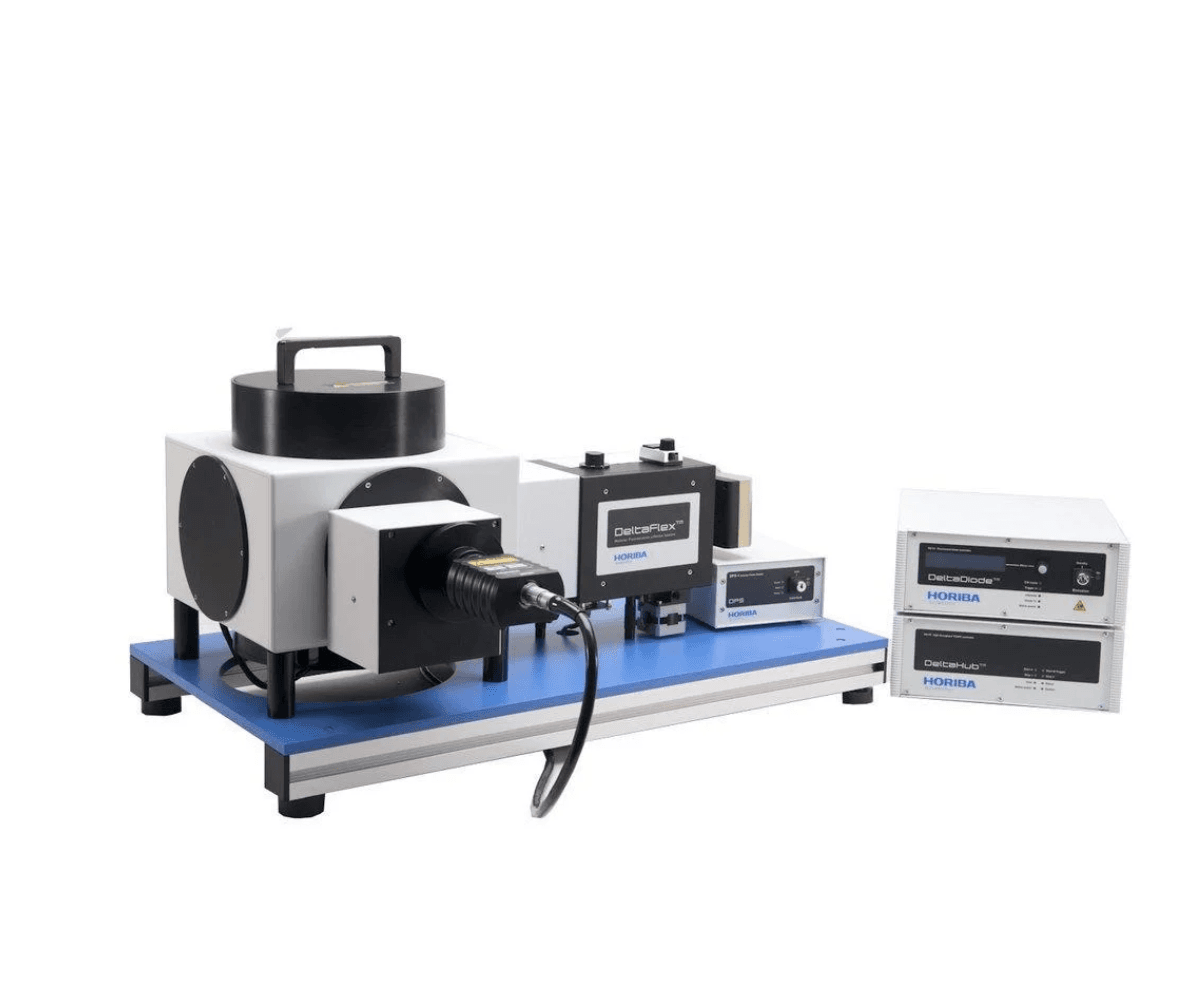

DeltaFlex
TCSPC Lifetime Fluorometer
DeltaFlex is an advanced, modular Time-Correlated Single Photon Counting (TCSPC) fluorescence lifetime system that delivers unmatched flexibility. Spanning lifetimes from 25 ps to 1 second, it offers plug-and-play modularity via the F‑Link bus, customizable optical configurations, and intuitive EzTime touchscreen software—ideal for time-resolved fluorescence, phosphorescence, anisotropy, and TRES studies.
Why Choose DeltaFlex
- Ultra-wide lifetime range from 25 ps to 1 second for diverse applications.
- Modular and upgradeable with plug-and-play F-Link connectivity.
- Broad spectral coverage from UV to NIR with multiple source and detector options.
- High-speed, high-sensitivity photon counting for rapid, accurate results.
Key Advantages of DeltaFlex
1.
Extended Measurement Range
Enables precise analysis from ultra-fast events to long-lived photoluminescence.
2.
Expandable Modular Design
Easily integrate new sources, gratings, and detectors without complex reconfiguration.
3.
Comprehensive Wavelength Options
Supports multiple excitation sources and detectors for maximum versatility.
4.
Fast Data Acquisition
Captures rapid processes with exceptional accuracy and sensitivity.
Applications of DeltaFlex
PL-upconversion
Frequency upconversion from NIR to visible using lanthanide based nanomaterials. Lanthanide based nanomaterials exhibits a unique fluorescence anti-Stokes shift enabling conversion of NIR into visible shorter wavelengths.
Local viscosity determination
Certain fluorescent molecules known as molecular rotors, can be employed to estimate the nanoscale viscosity in micro heterogeneous systems by measurement of their fluorescence lifetime.
Technical Specifications of DeltaFlex
DeltaFlex system
| Minimum Lifetime | 25ps with laser diode source* |
| Shortest measurement time | 1 millisecond* |
| Repetition rates | 10kHz - 100MHz with DeltaDiode, 0.1Hz - 10kHz with SpectraLED |
| Diode controller | DeltaDiode and SpectraLED |
| Prompt FWHM | <200ps FWHM with PPD/TBX and laser diode |
| Deadtime | 10ns |
| Time ranges | 10ns - 11s |
| Wavelength selection |
|
| Detector response |
|
| PC interface | USB 2.0. PC not included. Requires Windows XP or Windows 7, 32/64-bit English language ver |
| System Footprint | 75cm x 55cm nominal excluding PC |
**With DeltaDiode and PPD attached, no cables
DeltaFlex-NIR upgraded systems
| DeltaFlex | DeltaFlex-NIR-H | DeltaFlex-NIR-R | |
|---|---|---|---|
| Measurable lifetime* | 25ps to 1s | 100ps to 1s | 300ps to 1s |
| Interface | USB | USB | USB |
| Wavelength coverage of detector | 250-650nm (250-850nm or 300-900nm optional) | 950-1400nm or 950-1700nm | 300-1400nm or 300-1700nm |
* Dependent on sample and system configuration
Specifications and appearance are subject to change without notice.
