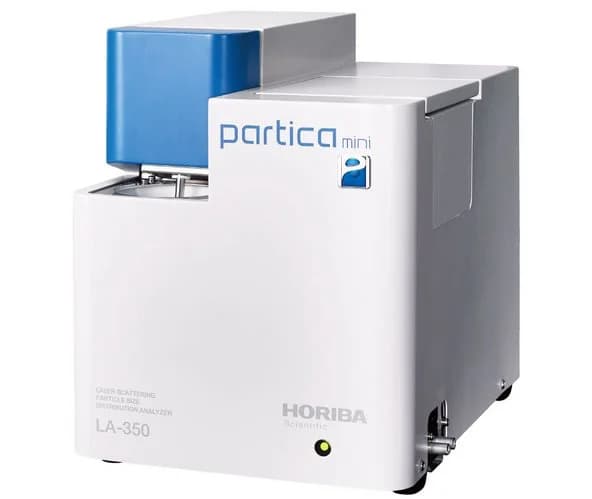

Partica mini LA-350
Laser Diffraction Particle Size Distribution Analyzer
The LA‑350 combines performance, price, and portability in a compact laser diffraction analyzer. It delivers accurate particle size distribution from 0.1 to 1,000 µm for slurries, minerals, emulsions, and paper chemistry, with a streamlined three‑step workflow: click, sample, review. Bench‑saving design and robust HORIBA support ensure reliable, low‑maintenance operation for diverse lab and field applications.
Why Choose Partica mini LA-350
- Compact footprint: 297×420 mm for efficient bench use
- Wide size range: 0.1–1,000 µm for versatile sample types
- Fast analysis in as little as 10 s per sample; Powerful software with advanced statistical and presentation tools
- One-button operation with automatic alignment and ultrasonic dispersion
- Portable design enables on-site measurements
Key Advantages of Partica mini LA-350
1.
Compact Design
Maximizes bench space and portability
2.
Wide Measurement Range
Covers diverse applications
3.
Rapid Analysis
Speeds sample throughput
4.
User-Friendly Workflow
Simplifies routine operation
Applications of Partica mini LA-350
Food Emulsion Stability Monitoring
Analyzes droplet sizes in food formulations
Road materials like asphalt
Critical to stability and application performance
Technical Specifications of Partica mini LA-350
| Contents | Specification |
|---|---|
| Measurement Principle | Laser diffraction and Mie light scattering theory |
| Size Measurement Range | 0.1-1,000 μm |
| Analysis Time | Typical measurement takes about 10 seconds from "Measure" to "display the result". |
| Analysis Materials | Powders, slurries, emulsions etc. |
| Measurement Output | Particle size and size distribution, size related theoretical calculated values |
| Measurement Method | Wet method: Liquid dispersed particles with flow sampling system |
| Required Sample Amount | 10 mg-5 g (depending on the sample size, distribution and materials) |
| Wet Flow System Liquid Volume | Approximately 130-230 mL |
| Organic Solvent Compatibility | Available in solvent resistant flow sampling version or fraction cell system (optional) |
| Measurement Performance Guarantee | HORIBA selected NIST traceable standard materials |
| Interface | USB data communication with PC |
| Data Processing/Results Display | Desktop or laptop PC/LCD; Printer |
| Operating Conditions | 15° to 35° C 85% RH or less (non-condensing) |
| Power | AC100-240V, 50/60Hz,150VA |
| Dimensions | W 297mm x D 420mm x H 376mm (excluding PC) |
| Mass | Approximately 23 kg |
| Optics | Light source: Laser diode 5mW, λ=650nm Analyzer Classification: Class 1A laser product Detectors: 64 ring detectors x 1, Silicon photo detectors x 6 |
| Wet Sampling System | Ultrasonic: Ultrasonic probe inside of the flow system, 7 steps power adjustment Circulation pumping system: Centrifugal pump, 15 steps of speed control Drain: Solenoid valve Flow cell material: Borosilicate glass |
| Optional Accessories | Fraction cell, Auto fill pump, Solvent resistant circulation system |
Accessories
Fraction Cell/Holder: The 5 mL cuvette-type Fraction Cell allows measurement of small volumes of liquid suspensions, making it is perfect for measuring very valuable or extremely small or hazardous samples.
