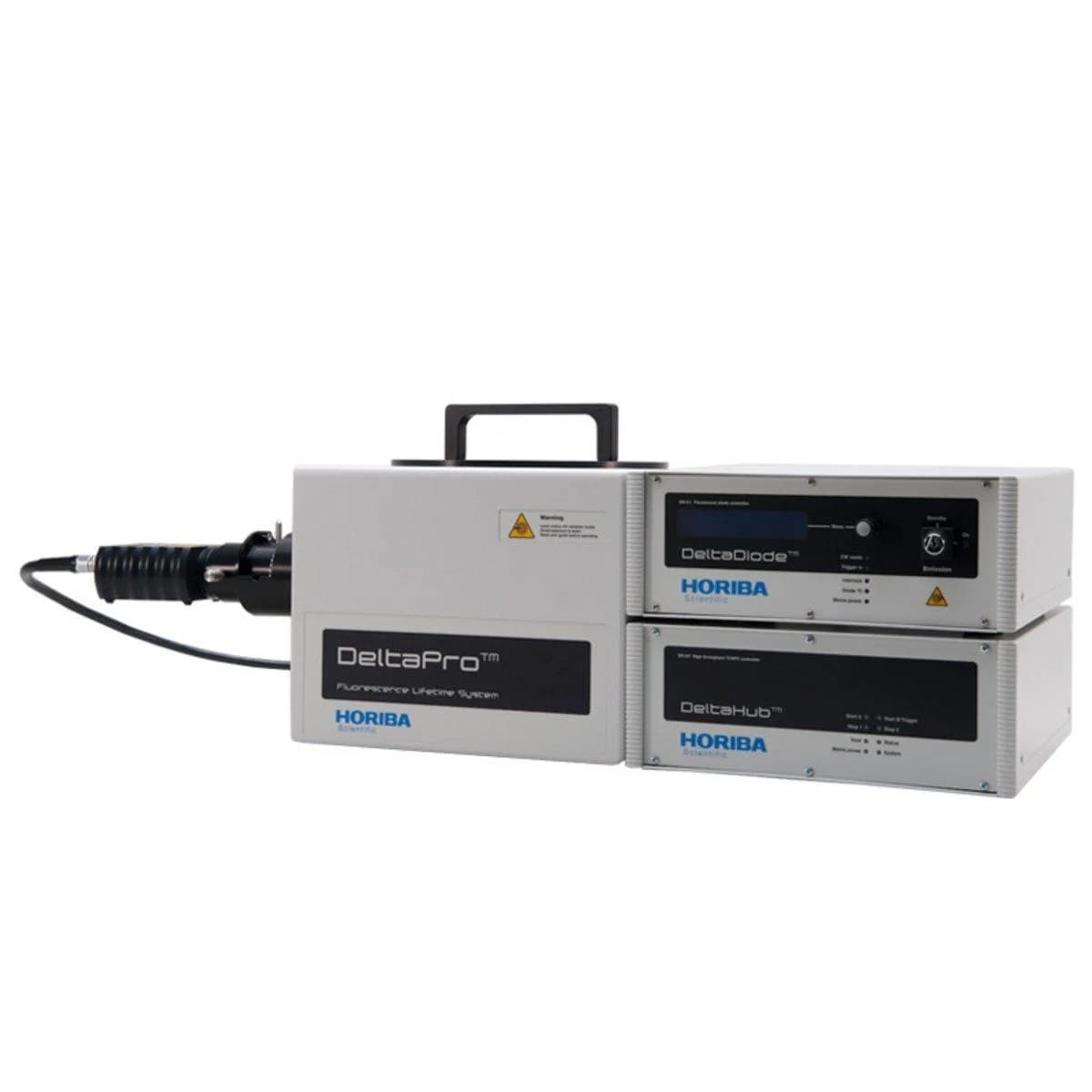

The DeltaPro is a compact, modular, and affordable time-correlated single-photon counting (TCSPC) fluorescence lifetime spectrometer for any lab. It enables seamless measurement of luminescence lifetimes ranging from 25 ps up to 1 second—covering 11 orders of magnitude—in a single system with fast acquisition and simple USB connectivity. Easily upgradable via F‑Link for accessories like motorized polarizers and focuses, it supports filter-based wavelength selection and various light sources from UV to NIR.

Captures fluorescence lifetimes from picoseconds to seconds for diverse kinetics.

Ultra-Wide Lifetime Detection

Supports accessories like motorized filters and polarizers for flexible configuration.

Modular, Plug-and-Play Design

Enables easy connectivity to PCs with no complex installation.

Fast, USB-Enabled Operation

Incorporates NanoLED, DeltaDiode, SpectraLED sources; optional NIR detection up to ~900 nm.

Broad Wavelength Compatibility

DeltaPro

HORIBA Scientific offers 200 years of experience in developing high-performance scientific instruments and analytical solutions.

Scientific

The Partica LA-960V2 is a high-performance laser diffraction particle size analyzer, offering exceptional accuracy, rapid measurements, and unmatched repeatability. It supports both wet and dry measurement modes with advanced dispersion systems, delivering reliable and reproducible results for particle sizes ranging from nanometers to millimeters.

Partica LA-960V2

Model

Mie scattering and Fraunhofer diffraction

Measurement principles

Measurement range

Typical measurement takes 60 seconds from liquid filling, sampling and measurement to rinsing

Measurement Time

Analysis Materials

Particle size and size distribution, size related theoretical calculated values

Measurement Output

Circulation measurement or fraction cell measurement (Fraction cell is optional)

Measurement Method

Approximately 10 mg - 5 g (Depending on the particle size, distribution and density)

Sample Quantity

Approximately 180 mL for standard pumping system, 5/10/15 mL for Fraction Cell accessory, Manual filling : 35 mL, Automatic filling : 40 mL for MiniFlow accessory. Approximately 1 L of LiterFlow option.

Dispersing Volume

A type: Water*, S type: Common organic solvents (*also, mixtures with small volumes of ethanol)

Compatible Liquids

USB 2.0 (USB 3.0 required for some options)

Communication

Red solid state 5 mW laser diode (650 nm), Blue solid state 3 mW LED (405 nm)

Light Sources

In-line ultrasonic probe: 30 W, 20 kHz, adjustable levels Circulation pump: Fully automated ﬁll and circulation pumps, 15 adjustable speeds, 4 selectable fill levels, 15 selectable circulation speeds (max: 10 L/min)

Dispersion System

15〜35°C (59 to 95°F), relative humidity 85% or less (no condensation)

Operating Conditions

Power

Dimensions

Mass

Windows PC with available USB ports, Windows 10 64-bit or Windows 11 64-bit. Contact for additional details.

Computer Requirements

High-performance microscope offers precise molecular and structural characterization, with ultrafast imaging. Its compact design and laser-safe operation make it suitable for diverse laboratory settings.From material science to pharmaceuticals and nanotechnology, LabRAM Soleil™ facilitates comprehensive sample characterization and analysis with efficiency and precision, making it an indispensable tool for researchers and industrial users alike.Move from microscopy to the nanoscopy world with an easy AFM upgrade.

LabRAM Soleil

Confocal Raman Microscope with advanced automation and imaging features.

The EMIA-Expert is a high-precision carbon and sulfur analyzer designed for advanced materials analysis. It offers wide detection ranges, rapid measurement cycles, and robust automation features—making it ideal for quality control and research in steel, alloys, non-ferrous metals, ceramics, and other industrial materials.

EMIA-Expert

Carbon/Sulfur Analyzer
(Flagship High-Accuracy Model)

DeltaFlex is an advanced, modular Time-Correlated Single Photon Counting (TCSPC) fluorescence lifetime system that delivers unmatched flexibility. Spanning lifetimes from 25 ps to 1 second, it offers plug-and-play modularity via the F‑Link bus, customizable optical configurations, and intuitive EzTime touchscreen software—ideal for time-resolved fluorescence, phosphorescence, anisotropy, and TRES studies.

DeltaFlex

Duetta™ is a 3‑in‑1 spectrofluorometer that combines fluorescence and absorbance measurements with high‑speed CCD detection, acquiring full spectra from 250 nm to 1,100 nm in under one second. A‑TEEM™ technology provides real‑time inner filter effect correction for precise, reproducible data in research, QA/QC, and teaching labs.

Duetta

The EMGA‑Pro (EMGA‑20P) Oxygen/Nitrogen Analyzer provides a cost-effective solution delivering reliable high-speed measurements with proven NDIR and in‑house TCD detection technologies. Designed for entry‑level applications, it ensures ease of maintenance, reduced consumable costs, and consistent accuracy, matching flagship model performance in a compact footprint.

EMGA‑Pro (EMGA‑20P)

The EMGA‑Expert (EMGA‑30E) is a flagship O/N/H analyzer delivering unparalleled speed and high accuracy. Leveraging 40+ years of proven performance, it cuts analysis time and costs by ~40%, while automation options enhance safety and efficiency. With robust NDIR/TCD detection and intuitive software, it ensures reliable measurements across diverse materials.

EMGA‑Expert 30E

The FluoroMax Plus is a compact benchtop spectrofluorometer offering industry-leading sensitivity and versatility with all-reflective optics and photon counting. It delivers emission spectra out to 1700 nm and TCSPC lifetime measurements as short as 25 ps, supported by powerful FluorEssence™ software and optional accessories for extended lifetime and phosphorimetric analyses.

FluoroMax Plus

Steady State and Lifetime Spectrofluorometer

Ultima Expert is a high-resolution, high-sensitivity, and high-stability ICP-OES spectrometer engineered to deliver ultimate performance across diverse sample types and matrices. It features Jobin Yvon optical design with high-density holographic grating and Total Plasma View for optimal resolution and sensitivity, paired with Analyst software for advanced method development and tailored analysis. Its robustness makes it ideal for mining, chemical manufacturing, petrochemical, metallurgical, and precious metal refining applications.

Ultima Expert LT

The nanoPartica SZ-100V2 Series is a highly advanced nanoparticle analyzer that simultaneously measures particle size, zeta potential, and molecular weight, enabling clear and simple multi-parameter analysis with minimal preprocessing, ideal for R&amp;D across applications in food, cosmetics, life sciences, and materials science.

nanoPartica SZ-100V2 Series

The LA‑350 combines performance, price, and portability in a compact laser diffraction analyzer. It delivers accurate particle size distribution from 0.1 to 1,000 µm for slurries, minerals, emulsions, and paper chemistry, with a streamlined three‑step workflow: click, sample, review. Bench‑saving design and robust HORIBA support ensure reliable, low‑maintenance operation for diverse lab and field applications.

Partica mini LA-350

Laser Diffraction Particle Size Distribution Analyzer

LabRAM Soleil Nano is a fully integrated AFM‑Raman nanoscopy system combining HORIBA’s LabRAM Soleil Raman microscope with OmegaScope scanning probe microscopy. It enables co‑localized AFM imaging (topographic, electrical, mechanical) and Raman/photoluminescence spectroscopy, performed sequentially or simultaneously at a single sample location. Tip‑Enhanced Raman Spectroscopy (TERS) and Photoluminescence (TEPL) achieve optical resolution down to 10 nm. Compatible with environmental and low‑temperature chambers, it offers automated operation, high collection efficiency, and ultrafast imaging with SmartSampling™ and Q‑Scan™ modes.

LabRAM Soleil Nano

MacroRAM™ is an easy-to-use macro Raman spectrometer for fast and reliable analysis of solids, liquid solutions, powders, and gels in bulk. Its compact, robust design with Class&nbsp;1 internal laser safety and LabSpec&nbsp;6 software delivers consistent, reproducible results across teaching labs, industrial QC, and manufacturing environments.

MacroRAM

The MESA-50 is a portable benchtop energy-dispersive X-ray fluorescence (EDXRF) analyzer featuring an ultra-compact design, IEC-compliant X-ray shields, built-in battery, and pump-less optics for versatile, on-the-go elemental analysis without a vacuum pump.

MESA-50

Your best answer to analyzing your mixtures of nanomaterials whether single-walled carbon nanotubes, quantum dots, or nanocrystals. Optimized for detecting nanomaterials near-IR fluorescence, the Nanolog® modular spectrofluorometer can help you determine their composition and structure. Based on the proven technology of the world-renowned Fluorolog® from HORIBA, the Nanolog is designed to give you a long life of reliable service and expert assistance.

Nanolog

The NEW SA-9650 series of surface area analyzers provides convenience, remarkable measurement speed, and very low cost-per-analysis for diverse materials. Using time-proven dynamic flowing gas BET methodology and push-button automation, it delivers fast single-point (15 min) or multi-point (45 min) measurements. Redesigned cabinet offers safe, front-access prep and test stations with built-in PC control and enhanced intuitive software for method files, data export, and PDF reporting.

SA-9650 Series

The SA-9600 Series are fully automatic BET flowing gas surface area analyzers offering exceptional speed and convenience, delivering routine total surface area determination in as little as 2–6 minutes with push‑button ease. Patented flowing gas technology and automatic calibration before every measurement ensure reproducible accuracy, while compact integrated design and optional multi‑station models support varying throughput needs.

SA-9600 Series

The SLFA-6000 analyzer determines sulfur concentrations in petroleum products ( ppm–9.9999 %) using energy-dispersive X-ray fluorescence, delivering compact, accurate measurements compliant with ASTM D4294, ISO 8754, and JIS K2541/B7995 standards.

SLFA-6000

X-ray Fluorescence Sulfur-in-Oil Analyzer

SLFA-6000

The Smart SE from HORIBA Scientific is a versatile spectroscopic ellipsometer for fast and accurate thin film measurements. It characterizes film thickness from a few Angstroms to 20 µm, optical constants (n,k), and structural properties such as roughness, graded layers, and anisotropic films within seconds.

Smart SE

The UVISEL Plus is a modular phase-modulated spectroscopic ellipsometer covering 190–2100 nm with FastAcq double modulation technology, enabling high-resolution, high-accuracy thin film and interface characterization in under&nbsp;3 minutes. Its&nbsp;50 kHz phase modulation and advanced optics deliver excellent signal-to-noise without mechanical movement, supporting measurement of films from 1 Å to&nbsp;50 μm, including backside reflections, and offering benchtop or in-situ integration via DeltaPsi2 or Auto‑Soft software.

UVISEL Plus

The EMIA‑Pro Carbon/Sulfur Analyzer provides exceptional accuracy, streamlined maintenance, and user‑friendly software enhancements that enable efficient measurements. Its reduced cycle time helps accelerate development and manufacturing speed.

EMIA‑Pro(ms)

EMIA‑Pro

The HORIBA Fluorolog‑QM™ series is a fourth‑generation, modular research‑grade spectrofluorometer combining all‑reflective optics with a choice of light sources, detectors, and sample accessories for unparalleled sensitivity and versatility. Its modular design allows users to add or upgrade components—such as pulsed lasers, LEDs, and NIR detectors—at any time to meet evolving experimental needs, supported by new steady‑state and lifetime software for streamlined workflows.

Fluorolog-QM

The GD-Profiler 2™ provides fast, simultaneous analysis of all elements of interest including the gases nitrogen, oxygen, hydrogen and chlorine. It is an ideal tool for thin and thick films characterization and process studies.&nbsp;Equipped with an RF source that can operate in pulsed mode for fragile samples, the range of applications of the GD-Profiler 2™ goes from corrosion studies to PVD coating process control, from thin film PV development to LED Quality Control and it is used in Universities as well as in Industrial Research laboratories.

GD-Profiler 2™

The XploRA™ PLUS is a reliable and high-performance microRaman system designed for scientists, researchers and engineers exploring the microscopic world.&nbsp;With exceptional sensitivity and resolution, it offers precise chemical and structural analysis. Its SWIFT™ confocal microscopy enables fast and detailed examination of sample composition and structure. With versatile laser excitation options and the possibility of an easy AFM upgrade, it accommodates a wide range of samples and Raman scattering characteristics.&nbsp;

XploRA™ PLUS

MicroRaman Spectrometer - Confocal Raman Microscope

The XGT-9000 is a cutting-edge, non-destructive micro-XRF (X-ray fluorescence) analytical microscope offering exceptional speed, flexibility, and elemental mapping capabilities. It delivers ultra-fine spot analysis (down to ≤15 µm), dual-detector imaging (fluorescence and transmission), and multiple probe options—perfect for applications ranging from defect detection in electronics to archaeological artifact analysis.

XGT-9000

The XploRA Nano is a fully integrated, compact AFM-Raman system combining high-resolution atomic force microscopy with confocal Raman and photoluminescence capabilities. It enables users to perform macro-, micro-, and nanoscale imaging (down to 10 nm), including Tip-Enhanced Raman Spectroscopy (TERS) and photoluminescence (TEPL), all within a user-friendly, automated platform.

XploRA Nano

The iHR Series includes the 320 mm and 550 mm focal length imaging spectrometers, recognized worldwide for their iconic, uniquely shaped designs and unmatched optical performance. Engineered for versatility, these spectrometers offer multiple entrance/exit ports, automated grating and slit control, and high throughput across a broad spectral range—making them ideal for research, OEM customization, and demanding imaging applications.

iHR Series

The LabRAM Odyssey is a fully automated confocal Raman microscope engineered for ultra-high spectral and spatial resolution across 2D and 3D imaging. With an expansive wavelength capability from deep UV to NIR, advanced confocal optics, and effortless automation, it caters to sophisticated applications such as biomolecular research, materials characterization, and semiconductors.

LabRAM Odyssey

Confocal Raman & High-Resolution Spectrometer

Minimum Lifetime	25ps with laser diode source*
Shortest measurement time	1 millisecond*
Repetition rates	10kHz - 1MHz with NanoLED, 10kHz - 100MHz with DeltaDiode, 0.1Hz - 10kHz with SpectraLED
Diode controller	DeltaPro-NL: NanoLED and SpectraLED. DeltaPro-DD: DeltaDiode and SpectraLED
Prompt FWHM	<200ps FWHM with PPD/TBX and laser diode
Deadtime	10ns
Time ranges	10ns - 11s (DeltaPro-DD)
Wavelength selection	Interchangeable filters (not included), monochromators optional
Detector response	250 - 650nm standard, 250 - 850nm and 300 - 900nm optional.
PC interface	USB 2.0. PC not included. Requires Windows XP or Windows 7, 32/64-bit English language ver.
System Footprint	75cm x 45cm x 25cm nominal excluding PC

DeltaPro

DeltaPro

Why Choose DeltaPro

Key Advantages of DeltaPro

Ultra-Wide Lifetime Detection

Modular, Plug-and-Play Design

Fast, USB-Enabled Operation

Broad Wavelength Compatibility

Technical Specifications of DeltaPro
