Yumizen T6000

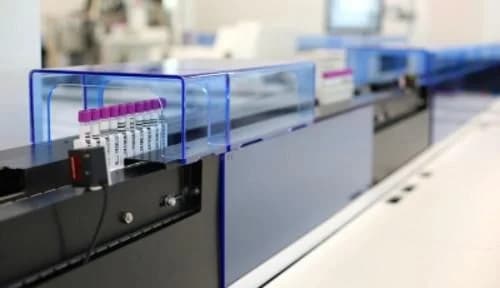

Yumizen T6000 Automated Conveyor

The Yumizen T6000 is a compact, scalable automated conveyor system designed for HORIBA’s HELO laboratory solution. It supports 2 to 6 Yumizen H1500 or H2500 analyzers and up to 6 Yumizen SPS units per track. With smart workflow management and reactive workload smoothing, it ensures optimized turnaround time and efficient peak activity handling. The system features multiple loading areas for up to 720 tubes, prioritizes STAT racks, and includes integrated barcode readers. Configurable in linear, angular, workcell, or island shapes, it offers flexible lab integration. The Yumizen Track Software supports multilingual access, user roles, and automation status monitoring.

Yumizen T6000

Yumizen T6000 Automated Conveyor

Why Choose Yumizen T6000

Connection capacity: Supports 2 to 6 analyzers (Yumizen H1500 or H2500).
Slide preparation units: Up to 6 Yumizen SPS per track.
Tube loading: Up to 720 tubes across 2 to 6 rack loading areas.
Slide loader (via Yumizen SPS): Up to 160 slides with continuous loading

Key Advantages of Yumizen T6000

Scalable Analyzer Connectivity

2–6 analyzers

Connects multiple Yumizen H1500 or H2500 analyzers for expanded capacity.

High Tube Capacity

Up to 720 tubes

Handles large sample volumes with multiple loading areas to streamline operations.

Integrated Slide Preparation

Up to 6 SPS units

Automates smear/stain processing with continuous loading of up to 160 slides.

STAT Priority Handling

Rapid processing

Prioritizes urgent samples to minimize turnaround time for critical cases.

Technical Specifications of Yumizen T6000

Configurations

Chained analyzers	Yumizen H1500, Yumizen H2500
Connection capacity	From 2 to 6 analyzers
Shape	Linear (internal or external), angular (1 angle), workcell (2 angles), island

Rack Conveyor

Loop conveyor with the 2 pneumatic turn modules

Conveyor speed: 10m / min

Integrated barcode readers

Furniture

In accordance with the customer configuration

Accessibility: 50 cm optimal for backspace

Dimensions:

Stand-alone configuration (optional furniture):
- Yumizen H1500/Yumizen H2500 furniture (HWD cm): 90 x 100 x 76
- Yumizen H2500-Yumizen SPS furniture (HWD cm): 90 x 250 x 76
Chained configuration (mandatory furniture):
- Yumizen H1500/Yumizen H2500 furniture (HWD cm): 90 x 150 x 106 (with its interspace)
- Yumizen H2500-Yumizen SPS furniture (HWD cm): 90 x 250 x 106 (if located on right end) 90 x 300 x 106 (if located elsewhere)
- Turn module-angle (HWD cm): 90 x 106 x 106

Yumizen Track Software

Protocol: ASTM CI

Status light: 3 colors (red, orange, green) for automation status

User rights: User, Supervisor, Administrator

Languages: FR, EN (US), SP, IT, GE, PT (BRA), ZH, JP

Computer: Operating System: Linux ® Ubuntu

Characteristics

Temperature	15-33°
Altitude	0-2000 m
Humidity	< 85%
Noise	< 60dB
Power	100-127 / 220-240 VAC ( +/ - 10%) 50 to 60 Hz
Integrated pneumatic unit	2.1 Bar
Accessibility	500 mm optimal for back space
Preventive maintenance	1 / Year
