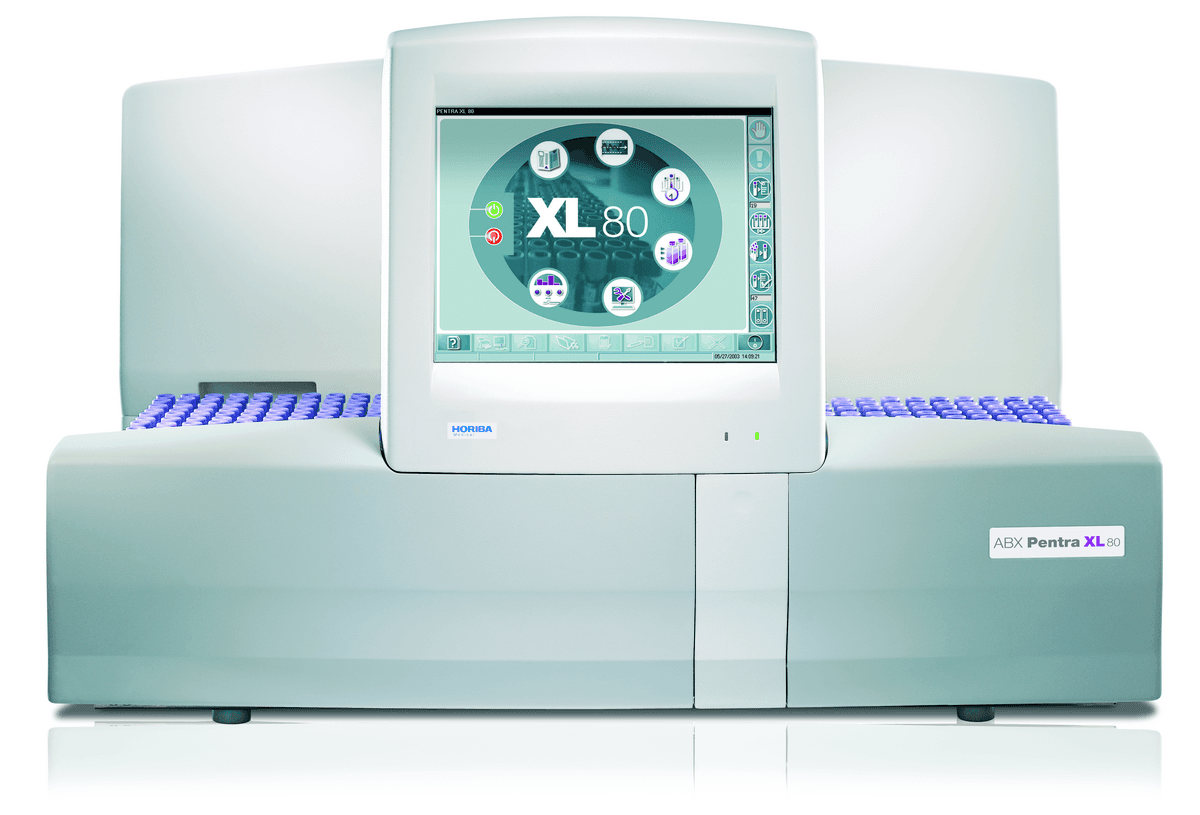

ABX Pentra XL 80
Hematology Analyzer
The ABX Pentra XL 80 is a high-performance, fully automated hematology analyzer with integrated validation. It delivers a full CBC with 5-part differential, processing up to 80 samples per hour, and features advanced sampling and mixing technologies—ideal for busy laboratories requiring precision and productivity.
Why Choose ABX Pentra XL 80
High-Throughput Automation – Processes up to 80 samples/hour with STAT mode available.
-
Precision Sampling – Micro-sample volumes (CBC: ~35 µL; with differential: ~53 µL) and a 100-tube autoloader ensure efficiency.
-
Advanced Analysis Tech – DHSS and MDSS technologies deliver accurate 5-part WBC differential and detailed histograms.
-
Smart Workflow – Features include automatic re-run, customizable dilution ratios (CDR), and integrated validation workstation.
Key Advantages of ABX Pentra XL 80
High Throughput
Processes up to 80 samples per hour, ideal for busy laboratories with high sample volumes.
5-Part Differential Analysis
Provides comprehensive CBC with 5-part differential, including atypical lymphocytes (ALY) and large immature cells (LIC) for enhanced diagnostic accuracy.
Advanced Automation
Features a large-capacity autoloader with continuous loading and STAT mode for urgent samples, streamlining laboratory workflows.
Precision Measurement Technologies
Utilizes Double Hydrodynamic Sequential System (DHSS) and Multi-Distribution Sampling System (MDSS) for precise cytochemistry, impedance, and optical measurements.
Technical Specifications of ABX Pentra XL 80
Technical
| Weight | 122 lb / 55 kg | ||
| Power supply | 100 V to 240 V (± 10%) - 50 Hz to 60 Hz | ||
| Dimensions | 32.3 x 22.4 x 21.5 in / 82 cm x 57 cm x 54 cm | ||
| Printer | Laser | ||
| Throughput | Up to 80 samples/hour | ||
| Data Processing | Colour LCD touch screen: 12 in PC onboard: Celeron 566 MHz Windows XP Prof.TM RAM (256 Mo), Hard disk (10 Go mini) Floppy disk & CD ROM reader RS 232C, 2 X USB1 User defined flagging limits Transmit patient files & QC to LIS Uni-directional & bi-directional connections ASTM protocol inside | ||
| Memory capacity | 10 000 results + Graphics | ||
| Quality Control Management | 24 selectable QC files XB: 60 operator selectable files with statistics (20 results per file) With-in run Levey-Jennings graphs | ||
| Logs | Reagents, Quality Control, Calibration, Maintenance, Blank Cycle, Patients Data, Settings, Information, Technology Communication, Errors, by date. | ||
| Patient reports Management | Delta check Anteriority (Matrix, curves, data) Manual input |
Samples
| 80 samples/hour (open or closed tube) | |
|---|---|
| Parameters (27) | WBC, NEU# & NEU%, LYM# & LYM%, MON# & MON%, EOS# & EOS%, BAS# & BAS%, ALY# & ALY%*, LIC# & LIC%*, RBC, HGB, HCT, MCV, MCH, MCHC, RDW CV, RDW SD, PLT, MPV, PCT*, PDW*. |
| Graphs | High-definition LMNE matrix PLT, RBC, WBC/BAS curves |
| Blood Volume | CBC mode: 35 µL CBC + DIFF mode: 53 µL |
| Stability | 48 hours post-draw stability |
| Operating sample mode | Autoloader 10 racks (100 tubes) capacity Sample mixing with end-over-end tube rotation Closed or open STAT tube |
| Identification | Alphanumeric. Bar-code reader (optional) and internal bar-code scanner |
* RUO parameters (Research Use Only)
Results
| Parameters | Precision (%CV) | Linearity Limits | Linearity Limits with CDR* |
|---|---|---|---|
| WBC | < 2.0 | 0-120 x 10³/µL | 120-360 x 10³/µL |
| RBC | < 2.0 | 0-8 106/µL | 0-8 X 106/µL |
| HGB | < 1.0 | 0-24 g/dl | 0-24 g/dL |
| HCT | < 2.0 | 0-67% | 0-67% |
| PLT (whole blood) | < 5.0 | 0-1900 x 10³/µL | 1900-3800 x 10³/µL |
| PLT (PLT concentrate) | < 5.0 | 0-2800 x 10³/µL | 2800-5600 x 10³/µL |
*CDR: Customised Dilution Ratio
Blood Controls & Calibrators
Blood Controls
| Reference | Description | |
|---|---|---|
| 2062207 | ABX Difftrol Twin pack - 2L | 2 x 3 mL vial |
| 2062203 | ABX Difftrol Twin pack - 2N | 2 x 3 mL vial |
| 2062208 | ABX Difftrol Twin pack - 2H | 2 x 3 mL vial |
| 2042208 | ABX Minotrol 16 Twin pack - 2L | 2 x 2.5 mL vial |
| 2042202 | ABX Minotrol 16 Twin pack - 2N | 2 x 2.5 mL vial |
| 2042209 | ABX Minotrol 16 Twin pack - 2H | 2 x 2.5 mL vial |
| 2042209 | ABX Minotrol Retic Twin pack - 2N | 2 x 3 mL vial |
| 2042209 | ABX Minotrol Retic Twin pack - 1L 1H | 2 x 3 mL vial |
Calibrators
| Reference | Description | |
|---|---|---|
| 2032002 | ABX Minocal | 1x2 mL |
N: normal level, H: high level, L: low level
* Recommended by HORIBA
