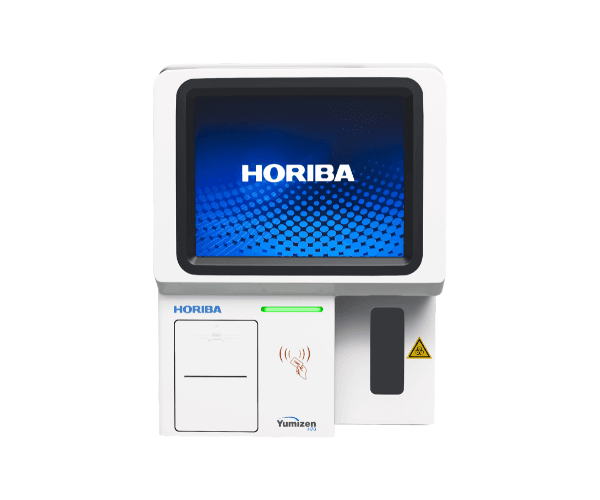

Yumizen H70
Insight Beyond Numbers. Engineered for every Laboratory
Experience the next generation technology in hematology testing with Yumizen H70, our flagship Make in India 3-Part hematology analyzer, designed for every laboratory.
The Yumizen H70 offers enhanced workflow efficiency with an impressive throughput of upto 72 samples per hour, along with 27 clinically significant parameters including Mentzer Index (MI), Granulocyte-Lymphocyte Ratio (GLR), Platelet-Lymphocyte Ratio (PLR), Lymphocyte-Mid cells Ratio (LMR) & Red Cell Distribution Width Index (RDWI).
Powered by advanced software, an intuitive 10.5” touchscreen, compact footprint, low cost per test & RFID enabled reagent-saving technology makes it an ideal solution for high-volume laboratories and growing diagnostic centers. Yumizen H70 offers the perfect balance of quality, productivity, affordability, and clinical confidence.
Why Choose Yumizen H70
- Economical reagent system: 2 reagents
- Coloured histograms for better interpretation of results
- Multiple modes of analysis requiring just 9μL for Whole Blood and 20μL for Predilution Mode, Capillary Mode, Only HGB, Only PLT
- Precision in RBC, WBC, & Platelet counting & Cyanide-Free Colorimetry for safe & accurate Hb measurement
Key Advantages of Yumizen H70
1.
Extended Advanced Indices
Goes beyond routine CBC with 22 routine & 5 special indices
2.
Microsampling
Multiple modes: Predilution Mode, Capillary Mode, Only HGB & Only PLT
3.
Fastest
Improved laboratory productivity & time
4.
Reagent Saving Technology
Diluent (20 L) & Yumizen H70 Lyse (0.5 L)
Applications of Yumizen H70
Beyond Conventional CBC, Better Clinical Picture
27 reportable parameters including 5 special indices – MI, GLR, PLR, LMR, & RDWI. Advanced Platelet Parameters – PDW-SD, PDW-CV, P-LCC, P-LCR
High Productivity for Busy Laboratories
With throughput of 72 tests/hour, Yumizen H70 ensure Faster Patient Turnaround Time (TAT)
One Analyzer, Multiple Testing Possibilities
5 modes of analysis: Yumizen H70 supports – Whole Blood, Predilution Mode, Capillary Mode, Only HGB, Only PLT
Confidence Even in Critical Samples
Extended WBC linearity up to 300,000 cells/µL – helps in managing patients with leukemia, severe bacterial infections & sepsis.
Technical Specifications of Yumizen H70
| Weight | 18 kg |
|---|---|
| Power Supply | AC 100 V to 240 V, 50 Hz to 60 Hz |
| Dimensions | 410 mm (H) × 300 mm (W) × 420 mm (D) |
| Printer |
|
| Throughput | 72 samples per hour |
| Data Management |
|
| Sample Storage | 100,000 samples, expandable up to 500,000 samples |
| Display | 10.5-inch LCD colour touchscreen |
| Parameters (27) | WBC: Lym%, Mid%, Gran%, Lym#, Mid#, Gran# and WBC — 7 parameters RBC: HGB, MCV, HCT, MCH, MCHC, RDW-CV, RDW-SD and RBC — 8 parameters PLT: MPV, PDW-CV, PDW-SD, PCT, P-LCR, P-LCC and PLT — 7 parameters Five special parameters: Mentzer Index (MI), Granulocyte-Lymphocyte Ratio (GLR), Platelet-Lymphocyte Ratio (PLR), Lymphocyte-Mid Cells Ratio (LMR) and Red Cell Distribution Width Index (RDWI) |
| Graphics | Coloured PLT, RBC and WBC histograms |
| Blood Volume |
|
| Calibration and Control |
|
| Operating Sample Mode | Open tube |
| Identification | Integrated RFID technology |
Analytical Performance
| Parameter | Linearity Range | Precision (CV%) | Carryover |
|---|---|---|---|
| WBC (103/µL) | 0–300 | ≤3.5% (4.0–6.9) | ≤0.5% |
| RBC (106/µL) | 0–8.00 | ≤2.0% (7.0–15.0) | ≤0.5% |
| HGB (g/dL) | 0–250 | ≤1.5% (110–180) | ≤0.5% |
| PLT (103/µL) | 0–4000 | ≤5.0% (100–149) ≤4.0% (150–500) |
≤1.0% |
