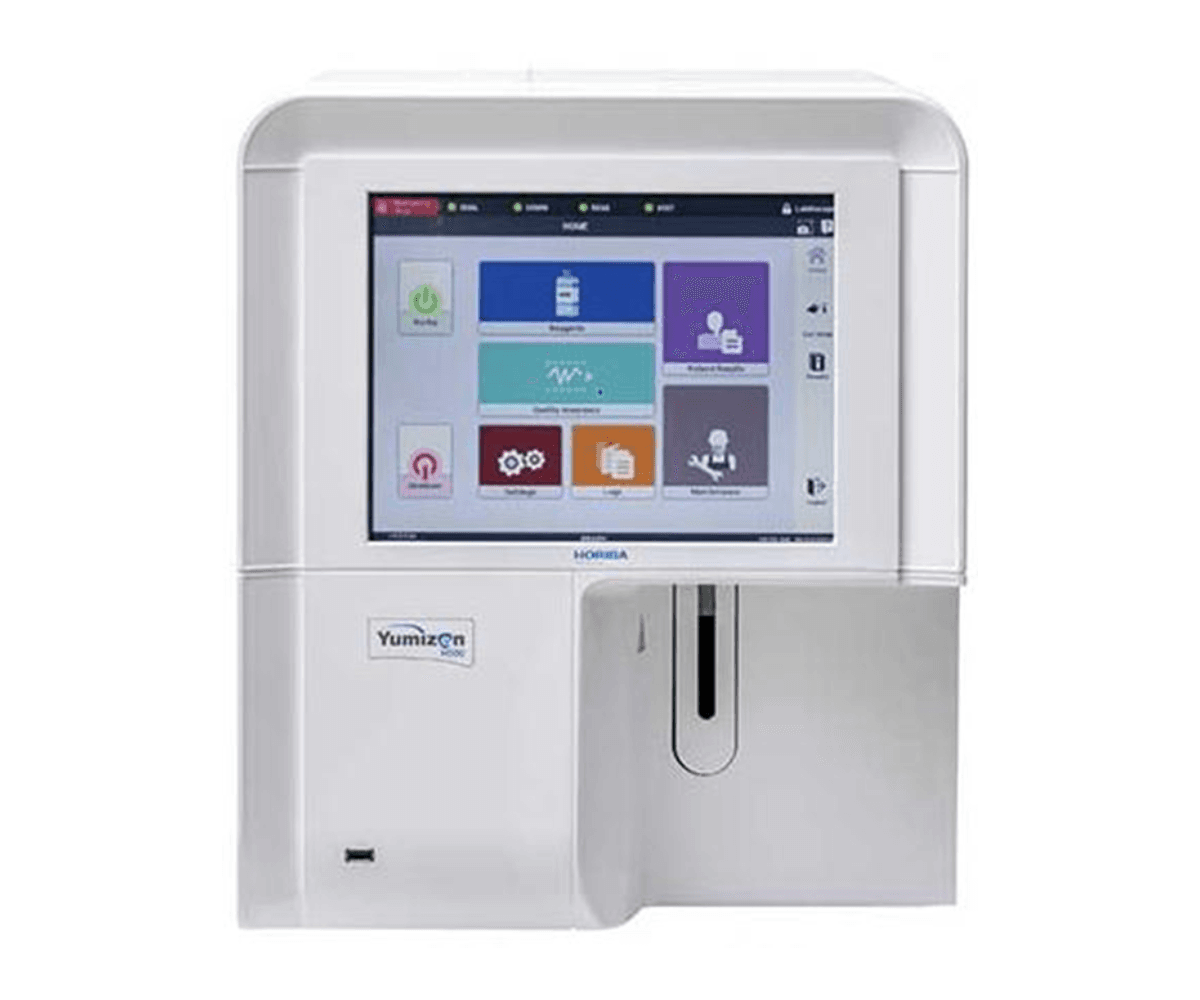

Yumizen H500/H550

Hematology Analyzer

The 9-part differential with CBC and CBC+DIFF includes an extended differential matrix (IMG, IMM, IML, and ALY). This innovative infectious screening provides malaria and dengue flags with a severity score, delivering results in just 60 seconds. The analysis requires only two reagents for sample processing. Offers 37 parameter .It supports capillary blood compatibility and fast testing, making it suitable for various clinical settings, including critical care and oncology. The system also features automated user maintenance and remote connection capabilities for enhanced workflow management.Sample Volume CBC+ DIF mode: 20μL.

Yumizen H500/H550

Hematology Analyzer

Why Choose Yumizen H500/H550

High Throughput: Processes up to 60 samples per hour
Comprehensive Parameters: Offers 37 parameters, including CBC-DIFF
Provide Dengue flags with severity scores
CBC+ DIF mode: 20μL
Autoloader version

Key Advantages of Yumizen H500/H550

High Throughput

 60 tests/hour 

Ideal for high‑volume laboratories

Comprehensive Analysis

37 parameters

CBC + DIFF with 20 µL sample volume

Histogram Display

3 histograms

WBC, RBC & PLT distributions

Efficient Sample Handling

180° mixing

Auto‑loader (40 tubes), 20 µL sampling, malaria flagging & DHSS flow cytometry (IMG, IMM, IML & ALY).

Applications of Yumizen H500/H550

Specialized Blood Analysis

Delivers in-depth evaluation of rare hematologic disorders using advanced algorithmic flagging and customizable parameters.

Routine Hematology Testing

High‑throughput CBC and differential assays designed for everyday clinical screening and monitoring in general patient care.

Pediatric & Geriatric Testing

Optimized protocols and low‑volume sampling to ensure accurate results in neonatal, pediatric, and elderly patient populations.

Research Institutions

Flexible configuration, raw data export, and advanced reporting capabilities to support hematology research and method development.

Diagnostic Laboratories

Integrated sample tracking, QC features, and LIS connectivity for streamlined clinical workflows and regulatory compliance.

Oncology Centers

Precise monitoring of blood cell counts, ESR/CRP, and reticulocyte indices to assess treatment response and disease progression.

Technical Specifications of Yumizen H500/H550

	Yumizen H500	Yumizen H550
Weight	49 lbs/22 Kg	78 lbs/35 Kg
Dimensions	19 x 16 x 19 in / 48 x 40 x 48 cm (HxWxD)	24 x 21 x 26 in / 62 x 53 x 67 cm (HxWxD)
Throughput	60 tests/hour	60 tests/hour
Data management	Yumicare Remote Service	Yumicare Remote Service
Parameters (37)	WBC, NEU# & NEU%, LYM# & LYM%, MON# & MON%, EOS# & EOS%, BAS# & BAS %, LIC# & LIC%, IML#, IML%, IMM#, IMM%, IMG#, IMG%, ALY#, ALY%, RBC, MIC%, MAC%, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PCT, PDW, P-LCC, P-LCR
Operating sample mode	Open Tube (OT), Closed Tube (CT)	Rack mode & manual mode
