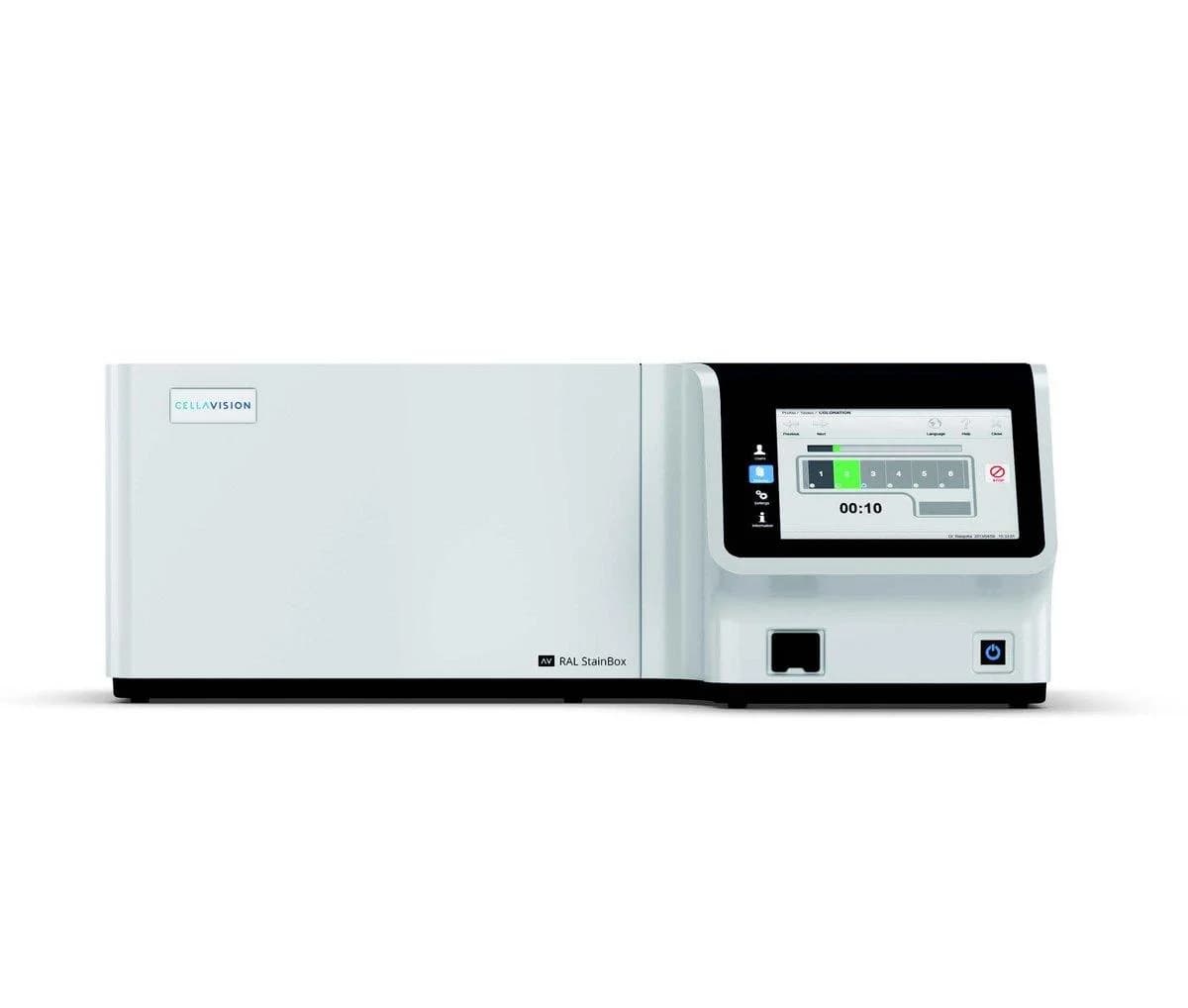

The RAL StainBox is a semi-automated blood slide stainer using the traditional bath method for staining. It guides technicians step-by-step through a standardized process, using methanol-free, ready-to-use staining kits for consistent, safe, and efficient results—especially advantageous in low-volume lab settings.

Standardized protocol ensures uniform and reliable results every cycle.

Consistent Slide Staining

Removes toxic fumes and improves operator safety through ready-to-use reagents.

Safe Reagent Handling

Balances pace and quality for streamlined slide staining in smaller labs.

Efficient Throughput

Lightweight design fits even the smallest workspaces.

Compact & Portable

RAL StainBox

HORIBA provides a large range of hematology analyzers and automated instruments to realize blood analysis (blood cells identification and counting). These analysis will participate to the diagnosis of various blood related diseases. Our instruments are designed for all kind of laboratory, small laboratory (to 150 patients a day), to larger ones (more than 2000 patients a day). Indeed, efficient and reliable instruments, automated racks, data management and quality tools are providing the whole environment for high quality medical analysis requirements.

Hematology

This new generation analyzer Microsemi CRP LC-767G is more compact and proposes enhanced software and network connectivity providing higher memory, usability plus a new ratio: Granulocytes-to-Lymphocytes Ratio (GLR). &nbsp; The Microsemi CRP LC-767G provides information of great clinical value enabling quicker and more accurate medical decisions at the Point of Care to ultimately reduce hospitalization times and patient costs.&nbsp;Its powerful and accurate CRP analysis allows the screening of patient samples to quantify the presence of inflammation caused by bacterial, viral (e.g. COVID-19), parasites infections (e.g. Malaria) and other treatable inflammatory diseases.

Microsemi CRP LC-767G

Discover cutting-edge performance and reliability with our flagship product.

Model

CBC: 55 tests/hour; CBC+CRP: 15 tests/hour

Throughout

20 parameters including 3-part WBC differential

Parameters

CBC +#DIFF mode : 10 μL; CBC + 3DIFF+CRP mode: 18 μL

Sample Volume

16.9 in (h) x 8.7 in (w) x 17.3 in (d) / 430 x 220 x 440 mm (W x D x H)

Dimensions

Weight

Power Supply

LCD color touchscreen with virtual keyboard

User Interface

The ABX Pentra XL 80 is a high-performance, fully automated hematology analyzer with integrated validation. It delivers a full CBC with 5-part differential, processing up to 80 samples per hour, and features advanced sampling and mixing technologies—ideal for busy laboratories requiring precision and productivity.

ABX Pentra XL 80

Power supply

32.3 x 22.4 x 21.5 in / 82 cm x 57 cm x 54 cm

Printer

Throughput

12-inch color LCD touch screen with onboard PC (Celeron 566 MHz, 256 MB RAM, 10 GB HDD)

Data Processing

RS-232C, 2 × USB 1.0, LIS integration (ASTM protocol)

Connectivity

36 parameters including 5-part differential

Measurement Parameters

Operating Conditions

HELO 2.0 "HORIBA Evolutive Laboratory Organization" is an automated hematology ecosystem with integration possibilities with digital morphology &amp; staining solutions. &nbsp;HELO 2.0 stands for HORIBA Evolutive Laboratory Organization, it is an advanced hematology automated track solution having integration possibilities of -<ul><li>6 advanced high end hematology analyzers&nbsp;</li><li>6 automated smearing and staining solutions</li><li>Digital morphology solutions</li><li>Modular Track with different configuration as per the requirement of lab</li></ul>

HELO 2.0

High Throughput Modular Hematology Platform with Advanced Automation

HELO 2.0 (Yumizen H1500/H2500 integration)

Configurable, modular track-based system; dimensions vary by configuration (consult HORIBA for specifics)

Up to 120 samples/hour per Yumizen H2500 analyzer (multiple analyzers supported)

Integrated hematology expert validation station with color LCD touchscreen, supporting over 200 preloaded reflex rules

LIS integration (ASTM protocol), Ethernet, USB, supports multi-site configurations

Up to 36 parameters including 8-part differential, nucleated RBC count, and 3 large platelet parameters

110 μL (CBC + DIFF, venous blood) per analyzer

Discover cutting-edge performance and reliability with our flagship product&nbsp;World exclusive concept: Simultaneous blood analysis + CRP measurement, along with data management<ul><li>CBC+CRP results in 4 minutes (15 tests / hour)</li><li>CBC results in 1 minute (55 tests / hour)</li><li>19 parameters</li><li>Open Tube</li></ul>*This product is not in any way affiliated with MICROSEMI Corporation.

Microsemi CRP LC-667G

19 parameters including 3-part WBC differential

16.9 in x 10.3 in x 17.7 in / 430 mm x 262 mm x 450 mm

An in-vitro diagnostic device designed to automate manual microscopy in a diagnostic laboratory. It uses robotics and AI to digitize Blood and Urine samples to enable AI aided remote review. It generates a pre-classified report of blood and urine with accuracy. This report can be accessed and approved from anywhere, ensuring timely and accurate results to meet patient's needs.The Yumizen D20 has 2 modules.<ol><li>Shonit: An AI application to analyze blood cell morphology which identifies and pre-classifies WBCs, RBCs and platelets in a peripheral blood smear.</li><li>Shrava: An AI application to analyze urine sediment to identify&nbsp;and pre-classify&nbsp;multiple elements present in urine sediment.</li></ol>

Yumizen D20

Shonit :Blood morphology analyzer.
Shrava: Urine sediment analyser

Analyzer type

Shonit :
WBC –LYM%, MON%, NEU%, EOS%, BAS%, IG%, Atypical/Blasts%, NRBC%, Immature cells
 RBC -Normocyte*, Microcyte*, Round Macrocyte*,Ovalo Macrocyte*Elliptocyte*, Ovalocyte*, Target*, Teardrop*, Echinocyte*, Fragmented*
 Platelets-PLT, Macro PLT, Giant PLT, Platelet Clumps

Shrava: Semi-Quantitative:
RBC, PUS cells, Microorganisms,
Detected vs Not Detected: Epithelial Cells, Cast, Crystal,Yeast




1.Manual or Automated peripheral blood smears on glass slides with a thin layer of oil.
2.Specially designed single-use cartridge GS200µ charged with 100µl of a uncentrifuged Urine.


Sample Prepration

Shonit: 20 slides per hour
Shrava: 40 samples per hour


Single slide at a time for peripheral smear.
2. Single Cartridge at a time for Urine which can process 3 samples


Slide/Cartridge Loading

Length – 74 to 76 mm
Width – 24 to 26 mm
Thickness – 1.0 to 1.35 mm.
cartridges: GS200µ


Slide/Cartridge specifications

A thin layer of oil to be applied manually

Oil immersion

Romanowsky Stains (Leishman,
May-GrÜnwald- Giemsa, Wright Giemsa, Giemsa)


Stains

Regulatory approval

Camera

•	Single optical column
•	40X Objective lens
•	Optical resolution of approximately 700 lp/mm
•	Digital resolution of approximately 6.1 pixels/micron


Optics System

Illumination Source

Stage movement resolution

Stage Travel Speed

Barcode Reader

•	Performance Qualification test for hardware and image quality

Quality Control

Unlimited archiving in Mandara utilizing either LAN or Wi-Fi

Archiving of results and images

External Interface

Input Voltage: 100-240VAC, Nominal Power: 60 watt, AC frequency : 50/60 Hz

Power

•	485mm x 572mm x 485mm / 19.1in x 22.52in x 19.1in

Size (W x D x H)

The&nbsp;Yumizen H2500&nbsp;is a high-throughput hematology analyzer designed for efficient and comprehensive blood analysis. It has high loading capacity of 120 samples at a time with high throughput. Analyse samples in just 30 seconds and offers 57 parameters, including CBC-DIFF NRBC, reticulocytes &amp; optical platelets. The device uses the impedance, flowcytometry with DHSS principle for differentials, fluorescence flowcytometry for retic &amp; optical extinction for platelets.&nbsp;&nbsp;It features automatic 360° rotative sample mixing for perfect homogeneity, low sampling volume of 110µl and a single sampling needle for both rack and STAT modes. The innovative autoloader allows continuous loading up to 120 samples at a time, making it suitable for various clinical settings.

Yumizen H2500

The Yumizen H550E/H500E OT hematology analyzer is designed for small labs, offering efficient throughput with a principal histogram for detailed analysis. It provides CBC/DIFF analysis with 38 parameters and an integrated ESR module that delivers results in 60 seconds.&nbsp;&nbsp;The analyzer has embedded quality control indicators, and remote QC management. The principal histogram allows for precise visualization of cell populations, enhancing diagnostic accuracy. Utilizes i-DoubleDiff and CoRA ESR technologies for precise results

Yumizen H550E/H500E

The 9-part differential with CBC and CBC+DIFF includes an extended differential matrix (IMG, IMM, IML, and ALY). This innovative infectious screening provides malaria and dengue flags with a severity score, delivering results in just 60 seconds. The analysis requires only two reagents for sample processing. Offers 37 parameter .It supports capillary blood compatibility and fast testing, making it suitable for various clinical settings, including critical care and oncology. The system also features automated user maintenance and remote connection capabilities for enhanced workflow management.Sample Volume CBC+ DIF mode: 20μL.

Yumizen H500/H550

The analyzer with a throughput of 60 tests per hour and requires only a 10 μL sample volume, making it suitable for neonatal and pediatric screening. It provides a CBC+Diff with 22 parameters and features a clinically suitable differential combination of LYM, MON, and GRA. The advanced PAMS technology flags conditions such as eosinophilia, blasts, NRBC, basophilia, and immature cells.&nbsp;&nbsp;Additionally, this analyzer is US FDA approved, ensuring high standards of quality and reliability. Advanced PAMS technology, real-time reagent management, comprehensive erythrocyte indices, and HL7 compatibility, ensuring high-quality results and efficient workflow management.

ABX Micros ES 60

The hematology analyzer, proudly made in India, boasts a throughput of 60 tests per hour and requires only a 10 μL sample volume, making it ideal for neonatal and pediatric screenings. It offers a comprehensive CBC+Diff with 22 parameters, including a clinically suitable differential combination of lymphocytes (LYM), monocytes (MON), and granulocytes (GRA).&nbsp;&nbsp;The device features advanced PAMS technology and can flag conditions such as eosinophilia, blasts, nucleated red blood cells (NRBC), basophilia, and immature cells. Additionally, it is CE approved, ensuring its compliance with European health, safety, and environmental protection standards.

Yumizen H60

The&nbsp;Yumizen H1500&nbsp;is a high-throughput hematology analyzer designed for efficient and comprehensive blood analysis. It processes up to 120 samples per hour and offers 46 parameters, including CBC-DIFF NRBC . The device uses the impedance principle for detecting and enumerating blood cells.&nbsp;&nbsp;It features automatic 360° rotative sample mixing for perfect homogeneity, low sampling volume of 110µl, and a single sampling needle for both rack and STAT modes. The innovative four-sided autoloader ensures optimized loading, making it suitable for various clinical settings. Facility of rerun, reflex and creation of customisable rules available.

Yumizen H1500

The Pentra XLR is a compact, high-performance hematology analyzer delivering 36 parameters, including 10 reticulocyte metrics. With a throughput of up to 80 samples per hour and advanced fluorescence-based technology, it boosts productivity while ensuring precise analysis—perfect for modern hematology laboratories.

Pentra XLR

The RAL Stainer is an automated bath‑staining unit that combines compact design with high efficiency. Ideal for laboratories processing 30–200 slides/day, it acts as both a reliable primary solution and an emergency backup. Exclusively compatible with ready-to-use RAL Diagnostics staining kits, it supports applications in hematology, microbiology, parasitology, and mycology, delivering reproducible results with minimal user input.

RAL Stainer

The Yumizen SPS Slide Preparation System ensures optimal blood smear quality within a secure enclosure, enhancing laboratory efficiency and safety. It offers intelligent modes including automatic and manual stain options for various sample types. With positive identification and closed reagent circuits, it guarantees user and result security. Compatible with Yumizen H1500 and H2500 analyzers, it delivers high-quality smears with excellent cell distribution and staining. The system reduces turnaround time through automation and customizable programming. It supports multiple staining protocols and adaptable smearing processes, making it ideal for digital microscopy. Continuous loading of up to 160 slides further streamlines workflow and standardizes results.

Yumizen SPS

The Yumizen T6000 is a compact, scalable automated conveyor system designed for HORIBA’s HELO laboratory solution. It supports 2 to 6 Yumizen H1500 or H2500 analyzers and up to 6 Yumizen SPS units per track. With smart workflow management and reactive workload smoothing, it ensures optimized turnaround time and efficient peak activity handling. The system features multiple loading areas for up to 720 tubes, prioritizes STAT racks, and includes integrated barcode readers. Configurable in linear, angular, workcell, or island shapes, it offers flexible lab integration. The Yumizen Track Software supports multilingual access, user roles, and automation status monitoring.

Yumizen T6000

The Yumizen P8000 is an advanced AI-based middleware solution designed to enhance laboratory operations. It offers multi-site management capabilities, centralized validation of patient results, and quality control management. The system provides real-time alerts for TAT monitoring, connects multiple instruments, and manages global worklists. It supports remote technical and application assistance, and includes a standardized rules package with over 190 integrated rules. Users can customize rules for reruns, reflex tests, comments, and automatic validation processes. The Yumizen P8000 ensures complete traceability for accreditation, stores up to 2,000,000 results, and features delta checks and patient moving averages.

Yumizen P8000

The CellaVision® DM9600 is a high-speed digital morphology solution that automates the analysis of blood and body fluid smears. Leveraging robotics and advanced digital imaging, it captures high-quality cellular images and enables slide pre-classification, streamlining workflow and reducing manual microscopy burden—especially ideal for high-volume laboratories.

CellaVision® DM9600

The CellaVision® DM1200 automates and simplifies blood and body fluid differentials using high-speed robotics and digital imaging. It automatically locates and captures high-quality images of cells, serving as the engine of a streamlined digital morphology workflow. With a load capacity of 12 slides and a throughput of approximately 20 slides per hour, it suits both medium and large hematology labs.

CellaVision® DM1200

The ABX Pentra 60 C+ is a compact, closed‑tube benchtop hematology analyzer delivering routine CBC and 5‑part differential results. Leveraging DHSS and MDSS technologies, it ensures precise cell differentiation with only 4 onboard reagents and a single diluent. Featuring micro‑sampling (CBC: 30 µL / DIFF: 53 µL), 26 parameters, and intuitive software, it streamlines hematology workflows for small to mid-volume labs.

ABX Pentra 60 C+

The ABX Micros 60 is a compact, fully automated hematology analyzer that delivers a CBC with 3-part differential using impedance and photometry. It supports micro-sampling with just 10 µL of whole blood, reaches up to 60 samples per hour (open tubes) or 55 per hour (closed tubes), and features smart-card memory, quiet operation, and reliable performance—an excellent lab instrument for efficient hematology workflows.

RAL StainBox

RAL StainBox

Why Choose RAL StainBox

Key Advantages of RAL StainBox

Consistent Slide Staining

Safe Reagent Handling

Efficient Throughput

Compact & Portable

Technical Specifications of RAL StainBox
