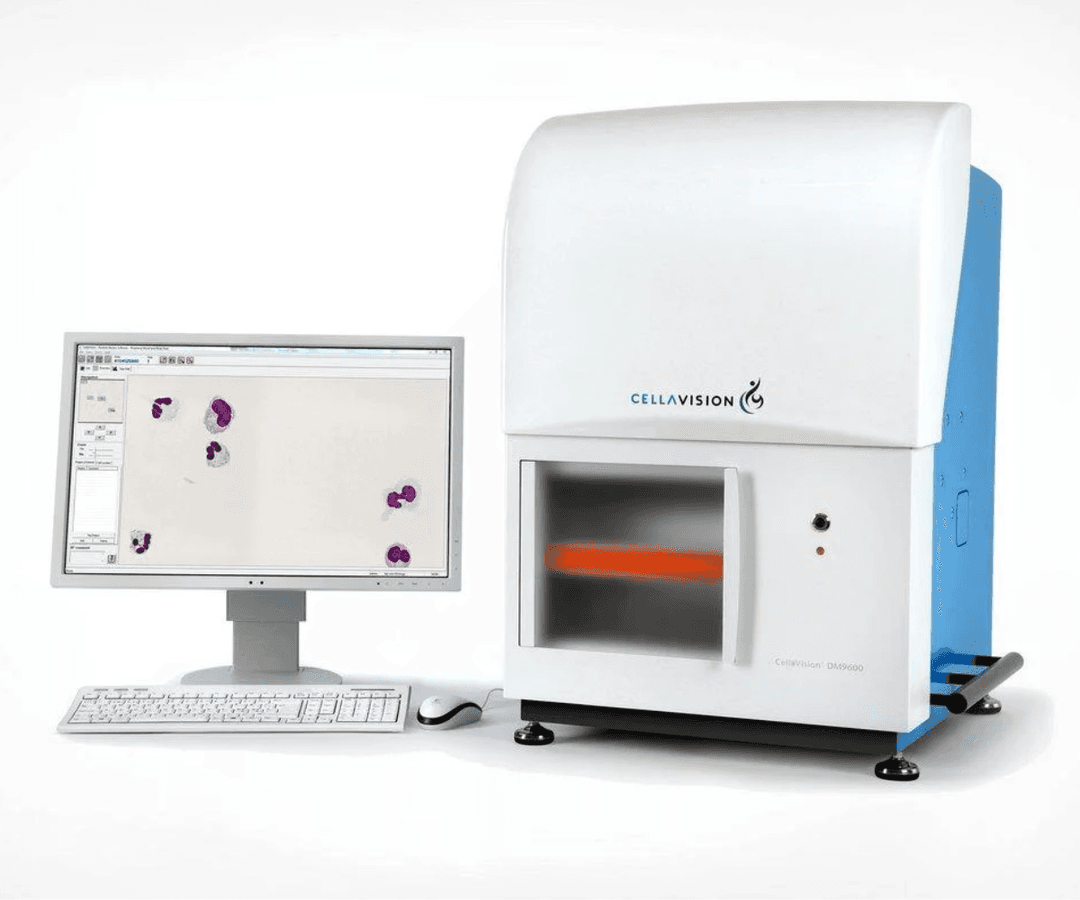

CellaVision® DM9600
Digital Cell Morphology System
The CellaVision® DM9600 is a high-speed digital morphology solution that automates the analysis of blood and body fluid smears. Leveraging robotics and advanced digital imaging, it captures high-quality cellular images and enables slide pre-classification, streamlining workflow and reducing manual microscopy burden—especially ideal for high-volume laboratories.
Why Choose CellaVision® DM9600
- Automated high-volume imaging — Loads 96 slides and processes ~30 slides/hour.
- Barcode-driven slide handling — Supports LIS integration and accurate sample tracking.
- High-fidelity imaging — Digital scans capture cells, feathered edge, and pre-defined areas for detailed analysis.
- Scalable and integrated — Forms the core of automated digital morphology workflows within HORIBA's HELO solution.
Key Advantages of CellaVision® DM9600
High Slide Throughput
Efficiently handles blood and body fluid smear imaging for increased productivity.
Robotic Operation
Minimizes manual handling with continuous loading and high-speed scanning.
Comprehensive Imaging
Captures cells and critical slide regions (like feathered edge) for thorough analysis.
Digital Workflow Integration
Seamlessly integrates into HELO for digital slide review and lab automation.
Technical Specifications of CellaVision® DM9600
| SLIDE HANDLING | |
| • Requires barcode labeled slides with clipped/round corners • Slides are loaded into magazines with the capacity of 12 slides. Fits eight magazines. • Analyzes slides with blood smears and body fluids either batched in dedicated magazines or mixed when interfaced to a LIS | |
| IMMERSION OIL | |
| Automatic dispensing | |
| QUALITY CONTROL | |
| Cell location accuracy test for the verification of the hardware and stain quality | |
| ARCHIVING OF RESULTS AND IMAGES | |
| LAN | |
| STORAGE CAPACITY | |
| • Primary storage: On local hard drive up to 4,000 slides (20 GB) • Secondary storage: Unlimited when transferred to external storage media | |
| PRINTER SUPPORT | |
| Laser/inkjet printers supported by Windows | |
| COMMUNICATIONS | |
| • Bi-directional LIS support, ASTM • Ethernet 10/100 Mbps • Multiple CellaVision DM analyzers can share a database | |
| SYSTEM COMPONENTS | |
| • Slide Scanning Unit • CellaVision DM Software • System Computer with Windows | |
| ELECTRONICAL SPECIFICATIONS | |
| • Voltage input: 100 to 240 VAC Current input: • System computer: 1.4 to 0.7 A • Slide scanning unit: 0.6 to 0.3 A | |
| CLEARANCE | |
| CE, 510(k) | |
| SIZE (Width x Depth x Height) | |
| • 580 × 560 × 790 mm • 22.8 × 22 × 31,1 inches | |
| WEIGHT | |
| 93 kg / 205 lbs | |
| THROUGHPUT* | |
| Peripheral Blood: • Up to 30 slides/h for complete differential (100 WBC+RBC+PLT) Digital Slides: • Up to 20 slides/h for 10 × 10 mm in 10x • Up to 1,5 slides/h for 10 × 10 mm in 10x + 50x Body Fluids (based on 6 mm sample area): • Up to 15 slides/h for differential (100 WBCs + 10x) • Up to 3 slides/h for differential (100 WBCs + 10x + 50x) | |
| OPTIONAL SOFTWARE / APPLICATIONS | |
| • CellaVision® Advanced RBC Application • CellaVision® Body Fluid Application • CellaVision® Remote Review Software • CellaVision® Server Software • CellaVision® Proficiency Software | |
| ACCESSORIES | |
| • CellaVision Immersion Oil Pack • Barcode labeled slide magazines • QC barcode labels • Light tower • Label printer kit |
* Processing time may vary depending on smear quality, WBC concentration and number of non-WBCs.
Specifications are subject to change without notice. This product may not be available in all markets.
