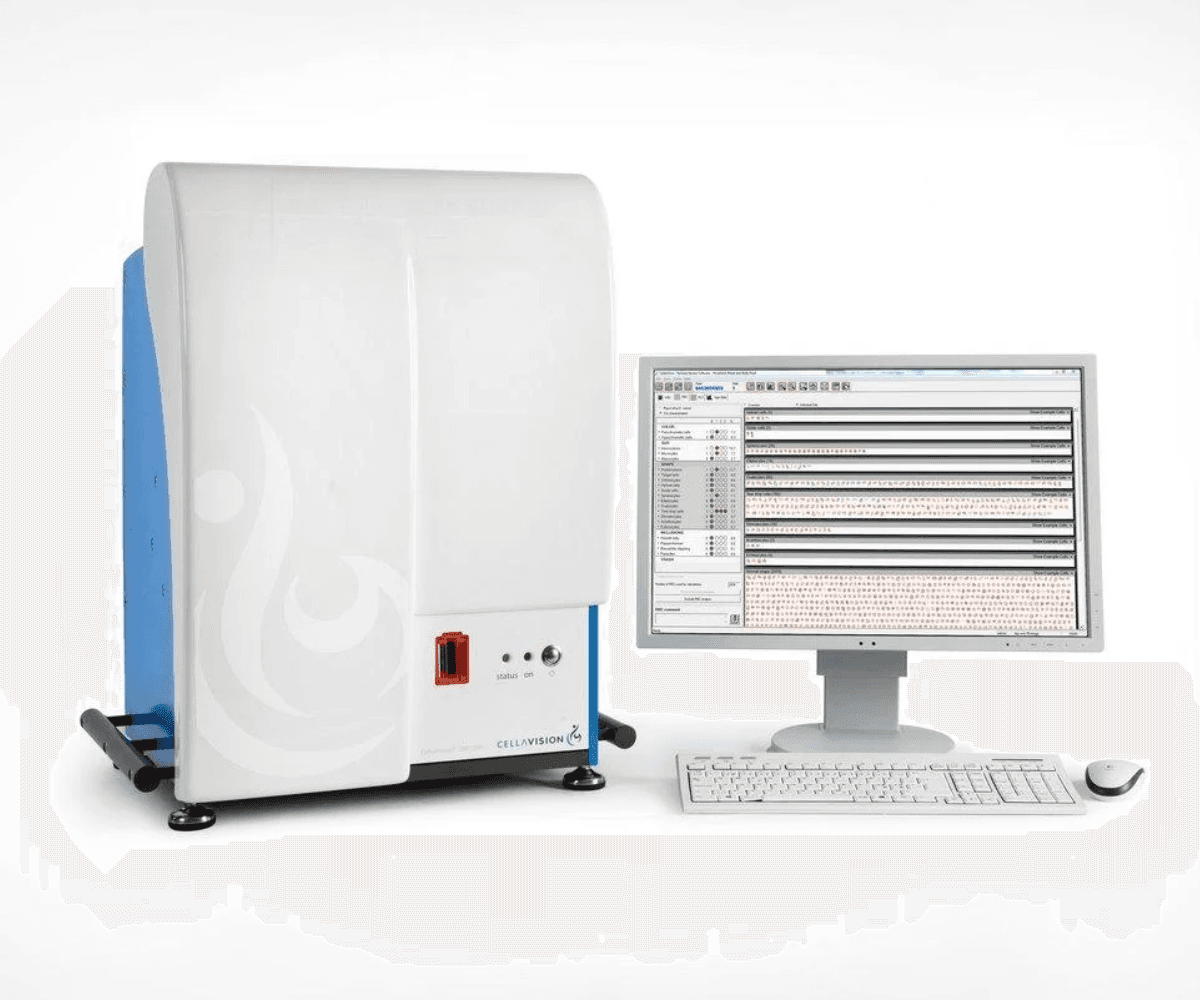

CellaVision® DM1200
Digital Cell Morphology System
The CellaVision® DM1200 automates and simplifies blood and body fluid differentials using high-speed robotics and digital imaging. It automatically locates and captures high-quality images of cells, serving as the engine of a streamlined digital morphology workflow. With a load capacity of 12 slides and a throughput of approximately 20 slides per hour, it suits both medium and large hematology labs.
Why Choose CellaVision® DM1200
- Automated Digital Imaging — Reduces manual microscopy and accelerates review.
- High-Quality Cell Capture — Delivers consistent and detailed morphology images.
- Standard Slide Handling — Processes up to 12 barcode-labeled slides per batch.
- Scalable Throughput — ~20 slides/hour supports mid-size lab volumes.
Key Advantages of CellaVision® DM1200
1.
Automated Slide Imaging
Automatically scans barcoded slides for consistent and efficient morphology review.
2.
Optimized Workflow
Balances throughput and detailed review for streamlined operations.
3.
Barcode-Based Tracking
Enables batch loading and ensures accurate slide identification and tracking.
4.
Scalable Integration
Forms the core of digital morphology workflows when paired with CellaVision applications.
Technical Specifications of CellaVision® DM1200
| SLIDE HANDLING | |
| • Requires barcode labeled slides with clipped/round corners • Slides are loaded into magazines with the capacity of 12 slides. • Analyzes slides with blood smears and body fluids either batched in dedicated magazines or mixed when interfaced to a LIS | |
| IMMERSION OIL | |
| |
| QUALITY CONTROL | |
| Cell location accuracy test for the verification of the hardware and stain quality | |
| ARCHIVING OF RESULTS AND IMAGES | |
| LAN | |
| STORAGE CAPACITY | |
| • Primary storage: On local hard drive up to 4,000 slides (20 GB) • Secondary storage: Unlimited when transferred to external storage media | |
| PRINTER SUPPORT | |
| Laser/inkjet printers supported by Windows | |
| COMMUNICATIONS | |
| • Bi-directional LIS support, ASTM • Ethernet 10/100 Mbps • Multiple CellaVision DM analyzers can share a database | |
| SYSTEM COMPONENTS | |
| • Slide Scanning Unit • CellaVision DM Software • System Computer with Windows | |
| ELECTRONICAL SPECIFICATIONS | |
| • Voltage input: 100 to 240 VAC Current input: • System computer: 1.4 to 0.7 A • Slide scanning unit: 0.6 to 0.3 A | |
| CLEARANCE | |
| CE, 510(k) | |
| SIZE (Width x Depth x Height) | |
| • 576 × 450 × 710 mm • 22.7 × 17.7 × 28.0 inches | |
| WEIGHT | |
| 80 kg / 176 lbs | |
| THROUGHPUT* | |
| Peripheral Blood: • Up to 20 slides/h for complete differential (100 WBC+RBC+PLT) Digital Slides: • Up to 20 slides/h for 10 × 10 mm in 10x • Up to 1,5 slides/h for 10 × 10 mm in 10x + 50x Body Fluids (based on 6 mm sample area): • Up to 15 slides/h for differential (100 WBCs + 10x) • Up to 3 slides/h for differential (100 WBCs + 10x + 50x) | |
| OPTIONAL SOFTWARE / APPLICATIONS | |
| • CellaVision® Advanced RBC Application • CellaVision® Body Fluid Application • CellaVision® Remote Review Software • CellaVision® Server Software • CellaVision® Proficiency Software | |
| ACCESSORIES | |
| • CellaVision Immersion Oil Pack • Barcode labeled slide magazines • QC barcode labels • Light tower • Label printer kit | |
Specifications are subject to change without notice. This product may not be available in all markets.
