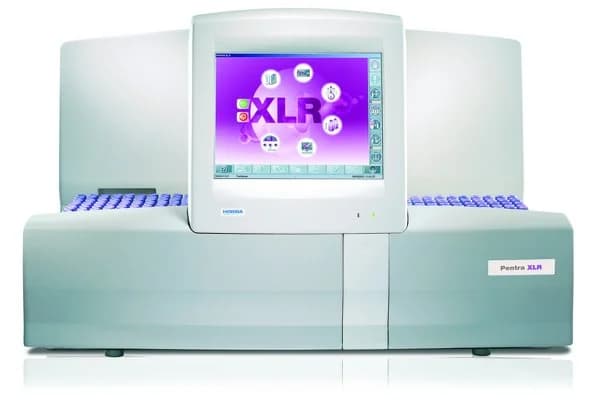

Pentra XLR

Hematology Analyzer

The Pentra XLR is a compact, high-performance hematology analyzer delivering 36 parameters, including 10 reticulocyte metrics. With a throughput of up to 80 samples per hour and advanced fluorescence-based technology, it boosts productivity while ensuring precise analysis—perfect for modern hematology laboratories.

Pentra XLR

Hematology Analyzer

Why Choose Pentra XLR

High Throughput – Processes up to 80 samples/hour for maximum efficiency.

Advanced Reticulocyte Analysis – Offers detailed RET parameters such as RET %, IRF, and CRC.

Accurate CBC + Diff – Utilizes advanced DHSS technology for reliable 5-part WBC differential.

Automated Operation – Equipped with a 100-tube autoloader, STAT sampling, and auto re-run.

Technical Specifications of Pentra XLR

Technical

Weight	138 lb / 62.5 kg
Power supply	100 V to 240 V (± 10%) - 50 Hz to 60 Hz
Dimensions	32.3 x 22.4 x 21.5 in / 82 cm x 57 cm x 54 cm
Printer	Laser
Throughput	Up to 80 samples/hour
Data Processing	Colour LCD touch screen: 12 in PC onboard: Celeron 566 MHz Windows XP Prof.^TM RAM (256 Mo), Hard disk (10 Go mini) RS 232C, 5 USB User defined flagging limits Transmit patient files & QC to LIS Uni-directional & bi-directional connections ASTM protocol inside
Memory capacity	10 000 results + Graphics
Quality Control Management	36 selectable QC files XB: 100 operator selectable files with statistics (20 results per file) With-in run Levey-Jennings graphs
Logs	Reagents, Quality Control, Calibration, Maintenance, Blank Cycle, Patients Data, Settings, Information, Technology Communication, Errors, by date.
Patient reports Management	Delta check Anteriority (Matrix, curves, data) Manual input

scrollable

Samples


Parameters (36)	WBC, NEU# & NEU%, LYM# & LYM%, MON# & MON%, EOS# & EOS%, BAS# & BAS%, ALY# & ALY%, LIC# & LIC%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW CV, RDW SD, PLT, MPV, PCT, PDW, RET%, RET #, RETH%, RETM%, RETL%, CRC%, IRF%, MRV, RHCc*
Graphs	2 High-definition matrix: LMNE and RET PLT, RBC, WBC/BAS curves
Blood Volume	CBC mode: 35 µL CBC + DIFF mode: 53 µL RET mode: 35 µL
Stability	48 hours post-draw stability
Operating sample mode	Autoloader 10 racks (100 tubes) capacity Sample mixing with end-over-end tube rotation Closed or open STAT tube
Identification	Alphanumeric. Bar-code reader and internal bar-code scanner

scrollable

* RUO parameters (Research Use Only)

Results

Parameters	Precision (%CV)	Linearity Limits	Linearity Limits with CDR*
WBC	< 2.0	0-120 x 10³/µL	120-360 x 10³/µL
RBC	< 2.0	0-8 106/µL	0-8 X 10⁶/µL
HGB	< 1.0	0-24 g/dl	0-24 g/dL
HCT	< 2.0	0-67%	0-67%
PLT (whole blood)	< 5.0	0-1900 x 10³/µL	1900-3800 x 10³/µL
PLT (PLT concentrate)	< 5.0	0-2800 x 10³/µL	2800-5600 x 10³/µL
RET%	< 12.0	0-42%
RET#	<20	0-1.5

scrollable

*CDR: Customised Dilution Ratio

Blood Controls & Calibrators

Blood Controls

Reference	Description
2062207	ABX Difftrol - 2L	2 x 3 mL vial
2062203	ABX Difftrol - 2N	2 x 3 mL vial
2062208	ABX Difftrol - 2H	2 x 3 mL vial
2072201	ABX Minotrol Retic - 2LN	2 x 3 mL vial
2072202	ABX Minotrol Retic - 1L 1H	2 x 3 mL vial
