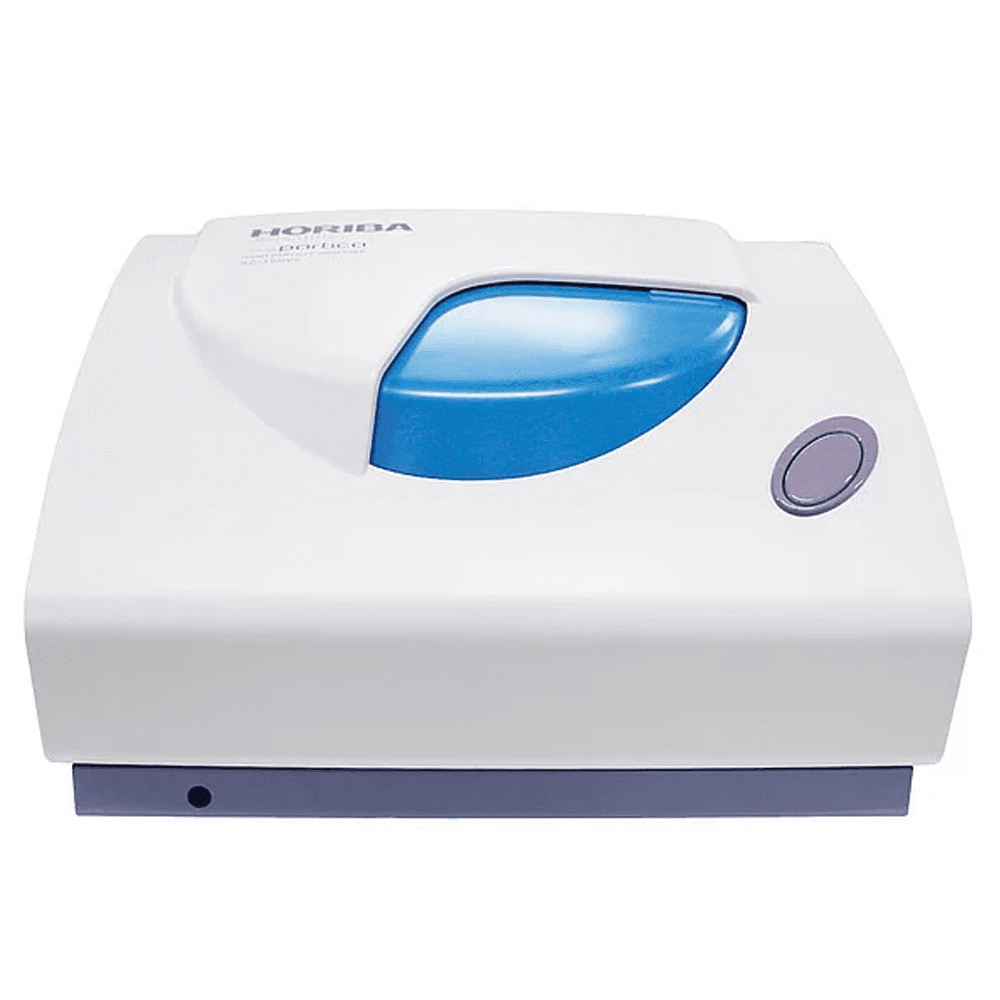

NanoPartica SZ-100V2(ls)
Nanoparticle Analyzer
A highly advanced analyzer solves the mysteries of the nano-world. A single device analyzes the three parameters that characterize nanoparticles: particle size, zeta potential, and molecular weight.
Nanotechnology research and development is a continuously evolving effort to control substances at the atomic and molecular level in order to achieve new and better materials and products. The miniaturization of components – that is, control at the nano-level – is necessary to achieve faster, higher-performance devices and functions and to reduce energy consumption. Nanotechnology has come to play a key role in wide-ranging fields that affect our daily lives, including food, cosmetics, and the life sciences.
Clear and simple multi-parameter analysis of nanoparticles!
Three analyzers in a single compact body deliver high-sensitivity, high-accuracy analysis of each measurement parameter.
Why Choose NanoPartica SZ-100V2(ls)
- Clear and simple multi-parameter analysis
- 3 in 1solution: Particle size measurement from 0.3 nm to10µm, Zeta potential measurement from -500 to +500 Mv, Molecular weight from 1x103 to 2x107 Da
- High sensitivity optical components
- Suitable for high concentration as well as dilute samples
Key Advantages of NanoPartica SZ-100V2(ls)
Disposable Zeta Cells
Eliminates cross‑sample contamination in zeta potential measurements.
Corrosion‑Resistant Electrode
Prevents corrosion when analyzing high‑salt samples.
Low Sample Volume
Requires as little as 100 µL for accurate measurements.
Convenient Software
Intuitive interface streamlines data processing.
Applications of NanoPartica SZ-100V2(ls)
Drug Delivery Systems
Characterize liposome and nanoparticle size, zeta potential, and stability for optimized delivery profiles.
Protein Stability & Vaccine Formulations
Monitor protein aggregation and colloidal behavior in vaccine and biopharmaceutical formulations.
Dairy & Beverage Stability
Assess nanoparticle dispersion and colloidal stability in milk and beverage products to ensure quality.
Emulsion & Topical Formulation Analysis
Evaluate droplet size distribution in emulsions, lotions, and sunscreens for performance consistency.
Technical Specifications of NanoPartica SZ-100V2(ls)
| Model | SZ-100-S2 (particle size and molecular weight measurement only) |
|---|---|
| Measurement principles | Particle size measurement: Dynamic Light Scattering Molecular weight measurement: Debye plot method (static scattered light intensity) |
| Measurement range | Particle size: 0.3 nm to 10 μm Molecular weight: 1000 to 2 x 107 Da (Debye plot) 540 to 2 x 107 Da (MHS Equation)*1 |
| Maximum sample concentration | 40 wt%*2 |
| Particle size measurement accuracy | Measurement accuracy of ±2% for NIST traceable polystyrene latex 100 nm spheres (not including variation in the standard particles themselves) |
| Measurement angles | 90° and 173° (automatic or manual selection) |
| Cells | Cuvettes |
| Measurement time | Approx. 2 min. under ordinary conditions (from the start of measurement to the display of results for particle size measurement) |
| Required sample volume | Minimum volume of 12 μL*3 to 1000 μL (differs depending on cell material) |
| Usable liquids | Water, ethanol, organic solvents |
