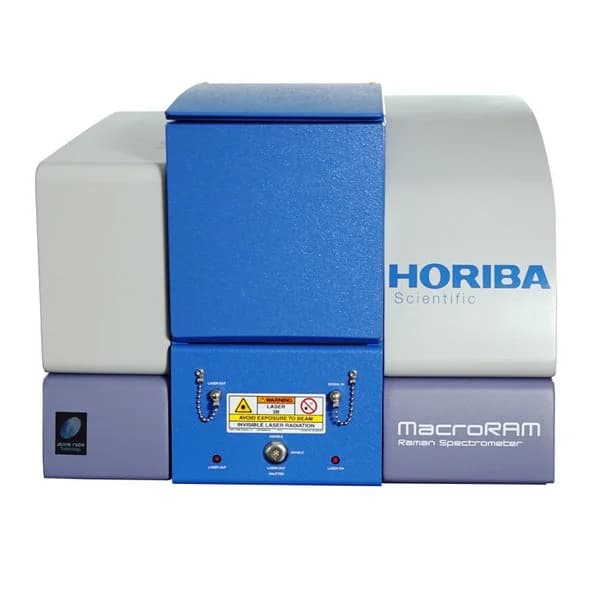

Benchtop Raman Spectrometer

MacroRAM™ is an easy-to-use macro Raman spectrometer for fast and reliable Raman analysis. Perfect for bulk analysis of solids, liquid solutions, powders, and gels, MacroRAM provides the flexibility and sensitivity to handle virtually any type of sample. With a compact and robust design including Class 1* laser safety, MacroRAM is ideal for use in most environments, from undergraduate teaching labs to industrial QC and manufacturing.



Powered by the industry-leading LabSpec 6 spectroscopy suite software, MacroRAM brings simplicity to macro Raman spectroscopy without compromising the ability to handle even the most challenging applications. It is ideal for confirming the identity and quality control of incoming raw materials, as well as for analyzing chemical composition, process monitoring, and assessing unknown substances. MacroRAM's durability and fixed internal setup ensure consistent and reproducible results over time, making it a reliable and robust choice for researchers, scientists, and industry professionals across such disciplines as pharmaceuticals, polymers & microplastics, forensics, wet chemistry, gemology, and other industries.



To facilitate the use of the MacroRAM in the undergraduate teaching laboratory setting, a series of educational labs are available. Designed to teach some of the most important concepts in Raman spectroscopy, such as identification, quantification, and vibrational chemistry, these educational labs can be used as is or tailored to fit the needs of any undergraduate laboratory. To learn more about these labs, please visit MacroRAM Educational Labs.

Why Choose MacroRAM(ls)

Compact and Powerful For Industry and Academia

  1. Versatile Design
  2. External fiber ports for probe-based measurements
  3. Compact and Rugged benchtop system for macroscopic measurements
  4. Intuitive and Powerful LabSpec 6 Software
  5. Premium quality Raman Filters
Why Choose

Key Advantages of MacroRAM(ls)

Versatile Sample Compatibility

Sample formats

Analyzes solids, liquids, powders, and more

Optimized Signal Collection

Enhanced optics

Maximizes Raman signal capture

Advanced Data Processing

Multivariate analysis

Enables powerful MVA and spectral library searching.

Comprehensive Accessory Suite

Included accessories

Features thermos tatted cuvettes, holders, Super Head, and immersion probes.

Applications of MacroRAM(ls)

Quantitative API & Excipient Analysis

Accurate determination of active pharmaceutical ingredients and excipients in tablets, capsules, and solutions.

Reaction Kinetics Monitoring

Real‑time tracking of chemical reaction progress and intermediate species for process development.

Powder & Liquid Quality Control

Verifies batch consistency and purity of powdered and liquid products via spectral fingerprinting.

External Probe Measurements

Enables in‑situ analysis of large objects, gels, or samples within containers using immersion and touch probes.

Technical Specifications of MacroRAM(ls)

Wavelength785 nm
Laser Power7 mW – 450 mW
Laser SafetyClass 1, internal sample compartment; Class 3b, external probe
Dispersion (nm mm-1)10.3
Spectrograph f/#3.3
Spectrograph Focal Length 115 mm
Spectral Range100 – 3400 cm-1 (Stokes)
Detector TypeSyncerity Back illuminated NIR CCD
Sensor Size2048 x 70
Pixel size 14 µm
Detector cooling-50°C
Dynamic Range55,500:1
CCD Dark Current (e-/pixel/s)0.05
Spectral Resolution 8 cm-1 at 914 nm
Dimensions (W x D x H)432 mm (17”) x 432 mm (17”) x 381 mm (15”)
Weight45 lbs (20.4 kg)
Ambient Temperature Range15 – 30°C (59 – 86°F)
Maximum Relative Humidity75%
PowerUniversal AC single-phase input power; 100-240 V AC; line frequency 50 – 60 Hz
FusesOne 5 x 20 mm IEC approved, 2.0 A, 250 V, time delay fuse
Operating SystemCompatible with Windows 7, 10, and 11 (32-bit or 64-bit)
