FluoroMax Plus
Sensitive, Flexible, Trusted Spectrofluorometer
The FluoroMax® Plus represents HORIBA's industry-leading fluorometer performance in a convenient, affordable, easy-to-use benchtop model. The FluoroMax family, with its unique all reflective optics and photon counting was the first to bring the sensitivity of a modular fluorometer to a tabletop fluorescence instrument, in the 1990's.
It’s a compact spectrofluorometer, yet offers the ultimate sensitivity in fluorescence investigations as well as features not found in most table-top fluorescence detection systems.
The FluoroMax Plus is the latest generation of the original, high performance tabletop fluorometer, which offers extended performance with detection of emission spectra out to 1700 nm and (TCSPC) Time Correlated Single Photon Counting lifetime measurements as short as 25ps.
Why Choose FluoroMax Plus
High End Research Performance with Benchtop Convenience
- High sensitivity in a benchtop system
- Photon counting detection
- Fast scanning capability
- Time-Correlated Single Photon Counting (TCSPC)
- Powerful FluorEssence software integration
Key Advantages of FluoroMax Plus
1.
Affordable LN-cooled detection
Spectral detection up to 1,700 nm
2.
Enhanced lifetime resolution
Ultrafast fluorescence lifetime measurements
3.
Absolute quantum yield
Accurate photoluminescence quantum yield analysis
4.
Time‑resolved phosphorescence
Enables phosphorescence lifetime spectroscopy
Applications of FluoroMax Plus
Study of Biomolecules & Cellular Processes
Real‑time monitoring of protein folding, ligand binding, and cellular dynamics to elucidate fundamental biological mechanisms.
Drug Discovery & Development
High‑throughput screening and quantitative analysis of compound–target interactions to accelerate lead identification and optimization.
Food & Beverage Quality Monitoring
Sensitive detection of contaminants, adulterants, and nutrient levels to ensure product safety and regulatory compliance.
Trace Evidence Detection & Analysis
Identification and quantification of microscopic residues and fluorescent markers in forensic samples for reliable criminal investigations.
Technical Specifications of FluoroMax Plus
| Lamp | Vertically mounted, CW, 150 W Ozone-free xenon arc lamp |
| Gratings | 1200 groove/mm blazed at 330 nm (excitation) and 500 nm (emission), plane ruled |
| Automatic self-calibration of all wavelength drives and slits | |
| Monochromators | All reflective optics, Czerny-Turner spectrometers |
| Detectors | Emission: R928P photon counting PMT (185-850 nm) and reference photodiode for monitoring lamp output. Optional NIR spectral detectors (out to 2,100 nm) and TCSPC lifetime detectors (down to < 10 ps) are available on the second detection port of the Fluoromax Plus. |
| Water Raman S/N | 13,000:1 (FSD method). See Signal-to-noise ratio |
| Slits | Continuously variable from 0 to 29 nm |
| Accuracy | 0.5 nm |
| Repeatability | 0.1 nm |
| Minimum step | 0.0525 nm |
| Integration time | 0.001 to 160 sec |
| Software | FluorEssence |
| Spectral Correction Factors | Included |

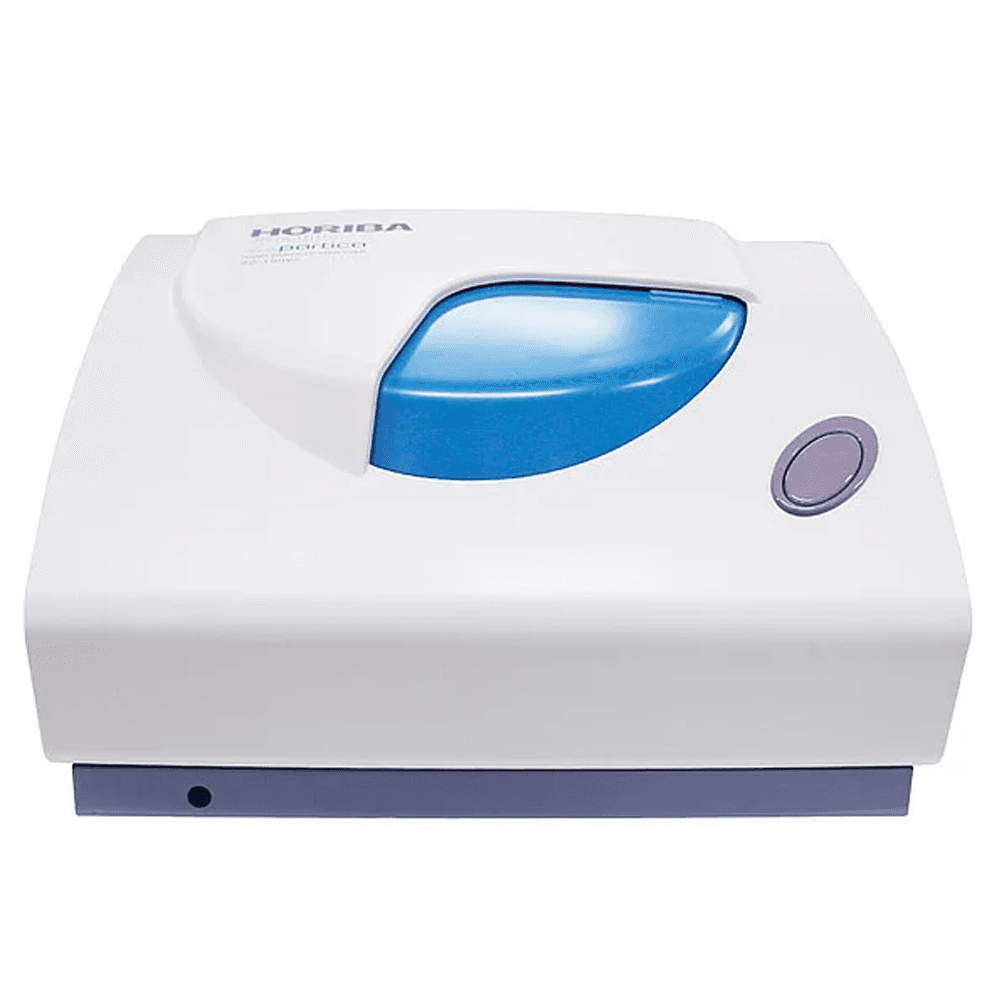

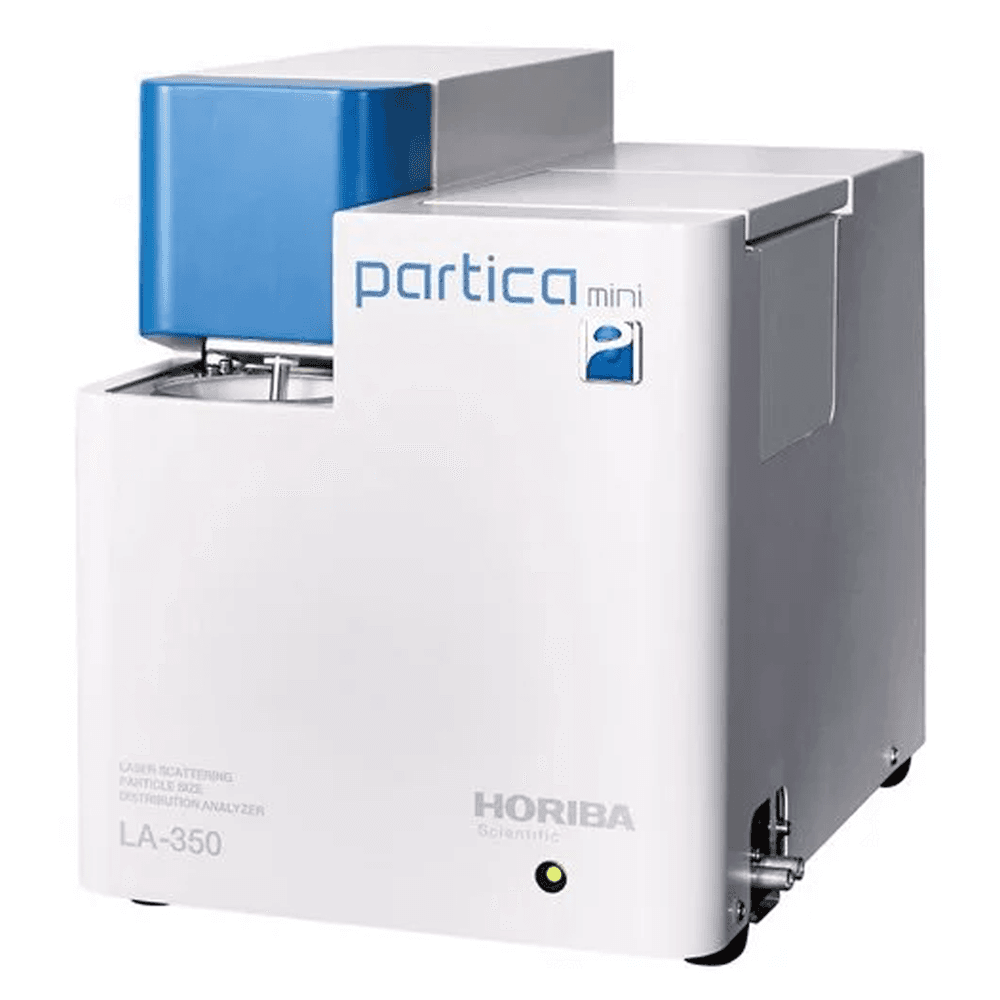

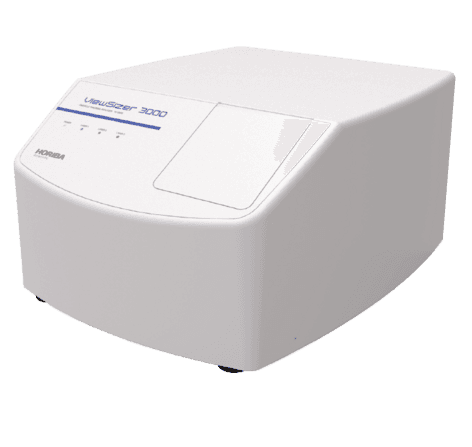

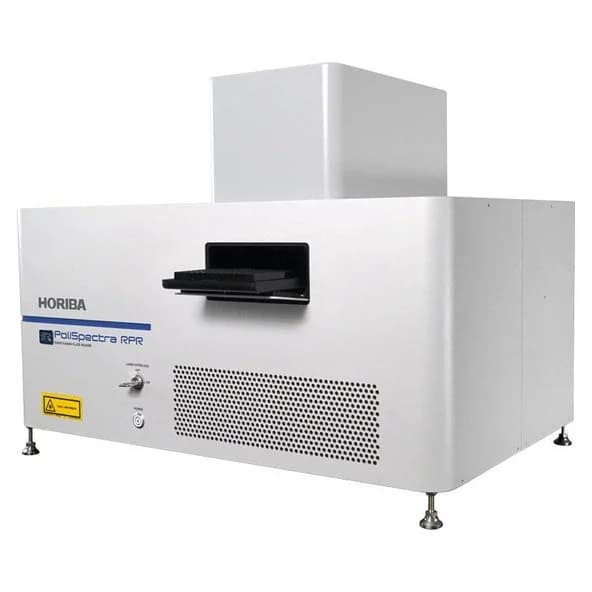

Related Products
