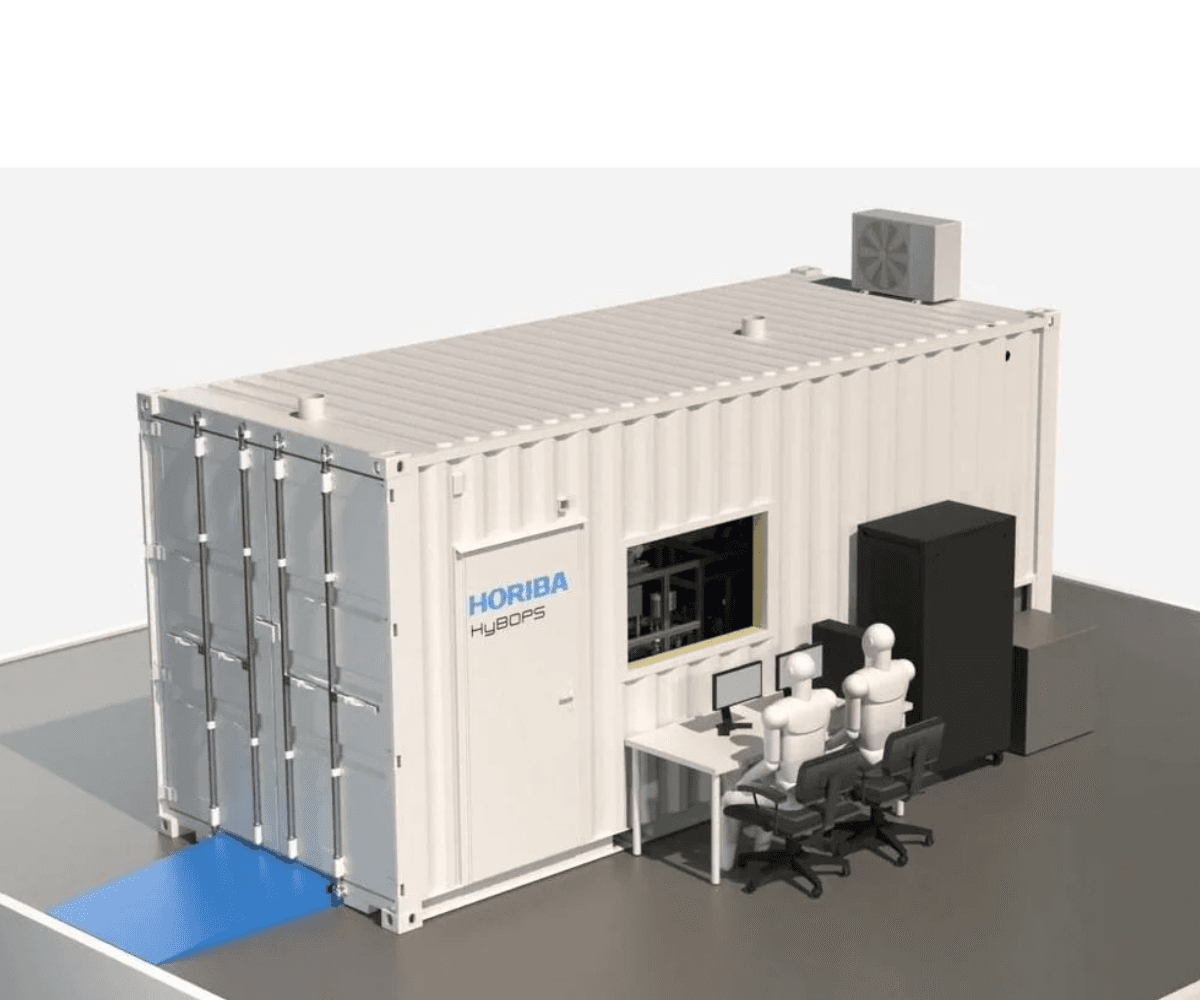

The HyBOPS is a fully integrated, containerized test platform designed for hydrogen fuel cell systems and their Balance of Plant (BoP) components. It provides a modular, portable, and safe environment to perform endurance testing, performance validation, and component-level analysis—either on-site or via HORIBA’s dedicated hydrogen testing centers.

Easy to transport and configure on-site—designed for rapid integration into testing workflows.

Plug-and-Play Container Setup

Simultaneously tests fuel cell stacks and their associated support systems in a controlled environment.

Comprehensive Fuel Cell Evaluation

Ensures operator protection with state-of-the-art gas detection and safety protocols.

Built-In Safety Infrastructure

Supported by expert-driven services, whether at customer locations or within HORIBA’s hydrogen test centers.

Flexible Testing Service

HyBOPS
