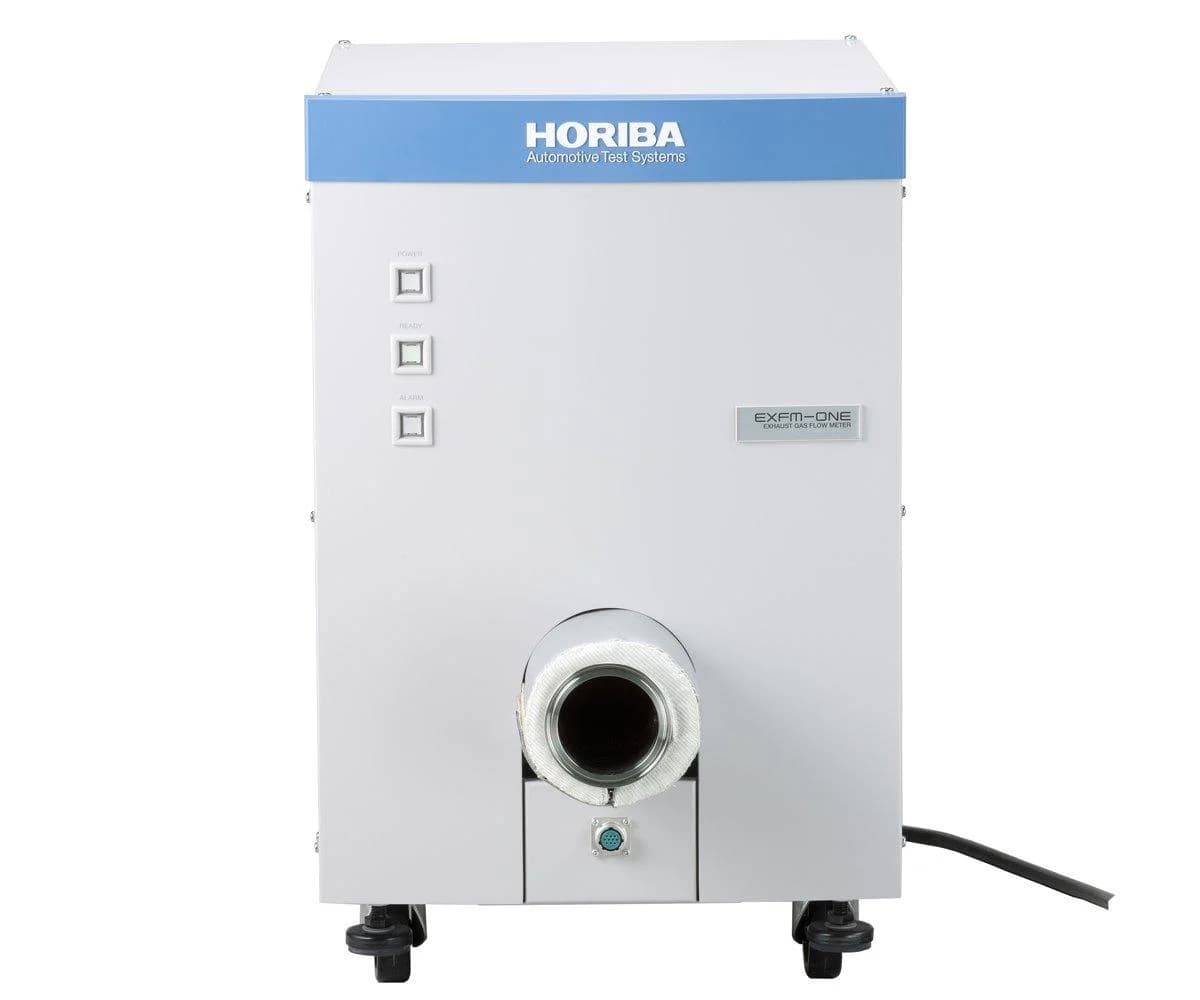

The EXFM-ONE uses ultrasonic sensing technology to measure vehicle or engine exhaust flow rates in real time. It supports a wide dynamic range and fast response, making it ideal for mass emissions measurement when combined with gas analyzers or PM measurement systems. With an optional AFR analyzer, it can also evaluate fuel consumption on the fly.

Handles varying exhaust volumes—from idle to high-speed driving—with accuracy.

Broad-Range Flow Capture

Captures rapid transients without lag, essential for real-world testing dynamics.

Ultra-Fast Reactivity

Supports combined flow and emissions measurement workflows or particulate sampling integration.

Multi-System Compatibility

Offers unified operation, diagnostics, and control alongside other measurement devices.

Integrated Software Management

EXFM-ONE
