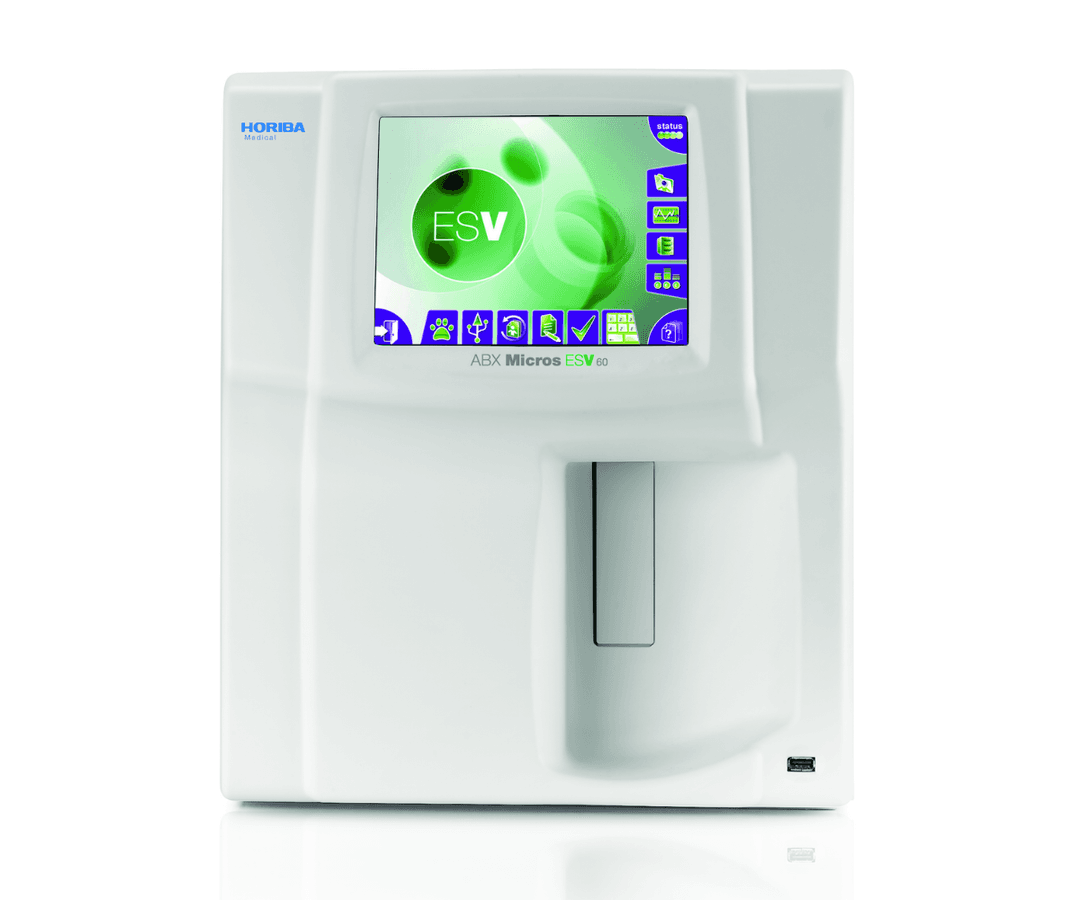

ABX Micros ESV 60
Veterinary Hematology Analyzer
The ABX Micros ESV 60 is a compact and highly accurate veterinary hematology analyzer designed for multi-species use. It performs a full CBC with 4-part or 5-part differential, processes up to 50 tests/hour, and operates on minimal sample volumes—making it ideal for veterinary clinics needing fast, reliable blood analysis across various animal types.
Why Choose ABX Micros ESV 60
Multi-Species Testing – Supports up to 10 animal species with tailored measurement profiles.
-
Minimal Sample Volume – Requires just 10 µL of whole blood for comprehensive analysis.
-
High Efficiency – Delivers up to 50 tests/hour for prompt throughput.
-
Sensitive Technology – Combines impedance and photometry for accurate cell counting and hemoglobin measurement.
Key Advantages of ABX Micros ESV 60
Versatile Animal Profiling
Custom settings ensure precise results across diverse veterinary applications.
Micro-Sample Efficiency
Reduces stress on patients while delivering full CBC and differential analysis.
Rapid Testing Performance
Optimizes lab workflow with swift, consistent throughput for busy clinics.
Accurate Hematology Analysis
Delivers reliable cell counts and hemoglobin measurements using complementary technologies.
Technical Specifications of ABX Micros ESV 60
Technical
Weight | 30.9 lb / 16 kg |
Power supply | 100 V to 240 V - 50 Hz to 60 Hz |
Dimensions | 16.9 in x 14.2 in x 14.2 / 43 cm x 36 cm x 36 cm (HxLxP) |
Printer | External |
Throughput | 50 tests/hour |
Data Management | Complete QC menu, logs (reagents, calibration, maintenance, errors, blank cycle), easy operation Transmission of patient & QC results to LAN (local area network) Mono-directional connection |
Memory | 1000 patients results with histograms |
Screen | LCD colour touch screen |
Samples
50 tests/hour (Open Tube) | |
|---|---|
Parameters (8) | For rabbit, rat, mouse, pig, monkey, cow and sheep: WBC RBC PLT HGB HCT MCV MCH MCHC |
Parameters (18) | For dog, cat and horse: WBC, LYM# & LYM%, MON# & MON%, GRA# & GRA%, EOS# & EOS%, RBC, PLT, HGB, MPV, HCT, MCV, MCH, MCHC, RDW |
Graphics | PLT, RBC, WBC curves |
Blood volume | CBC + 4DIFF mode: 10 μL |
Stability | 48 hours post-draw stability |
Operating sample mode | Open tube |
Identification | Alphanumeric, External barcode reader |
Results
Parameters | Presicion (cv %) | Linearity | |
|---|---|---|---|
Cat | WBC | < 3 (at 5.5-19.5 x 103/μL) | 0 - 100 x 103/μL |
RBC | < 3.5 (at 5-10 x 106/μL) | 0 - 12 x 106/µL | |
HGB | < 3.5 (at 8-15 g/dL) | 0 - 900 x g/dL | |
HCT | < 3.5 (at 24-45 %) | 0 - 25% | |
PLT (whole blood) | < 8.0 (at 300-800 x103/μL) | 0 - 70 x 10³/µL | |
Dog | WBC | < 4 (at 6-17 x 103/μL) | 0 - 100 x 103/μL |
RBC | < 2.5 (at 5.5-8.5 x 106/μL) | 0 - 10 x 106/µL | |
HGB | < 2.5 (at 12-18 g/dL) | 0 - 900 x g/dL | |
HCT | < 2.5 (at 37-55 %) | 0 - 25% | |
PLT | < 10.0 (at 200-500 x103/μL) | 0 - 70 x 10³/µL | |
Horse | WBC | < 3 (at 5.4 - 14.3 x 103/μL) | 0 - 100 x 103/μL |
RBC | < 2.5 (at 6.8-12.9 x 106/μL) | 0 - 12 x 106/µL | |
HGB | < 2.5 (at 11-19 g/dL) | 0 - 900 x g/dL | |
HCT | < 2.5 (at 32-53 %) | 0 - 25% | |
PLT | < 10.0 (at 100-350 x103/μL) | 0 - 70 x 10³/µL |
