Water & Process Analytics

TOC Analyzers

HORIBA TOCADERO analyzers deliver high-temperature, catalyst-free TOC and TNb measurement for drinking water, wastewater, pharma WFI/UPW and complex industrial effluents – with fast cycle times, robust design and smart connectivity.

Water Matrices

Drinking water, wastewater, desalination, cooling water, condensate, UPW/WFI and CIP streams.

Key Industries

Chemicals, oil & gas, pharma, semiconductor, food & beverage, power plants and airports.

Why Choose HORIBA TOC Analyzers

1200 °C Combustion, No Catalyst

TOCADERO ONE employs high-temperature combustion at 1200 °C without any catalyst, enabling complete oxidation of organic compounds and avoiding issues with drift or catalyst poisoning.

Wide Dynamic Range & Tough Matrices

From ultra-pure water in the ppb range to industrial wastewater with very high TOC, salinity and particles, the TOCADERO platform is designed for real, challenging process conditions.

Low Operating Cost & Smart Service

Catalyst-free, largely reagent-free operation, self-cleaning and backwash strategies, and predictive maintenance all contribute to low total cost of ownership and reduced operator workload.

Technology & Performance

Core Measurement Principle

High-temperature combustion around 1200 °C for TOC and TNb for complete oxidation of organic compounds.
NDIR detection for CO₂ generated from oxidized carbon and additional detectors for nitrogen species as required.
Supports TC, TOC (NPOC), TNb, differential TOC modes, POC/VOC and TIC in line with relevant DIN methods.
Short cycle times (typically under a few minutes) provide near-real-time process information.

Industrial Integration & Connectivity

Designed for continuous online water analytics with compact, robust enclosures suitable for plant environments.
Analog outputs and modern digital interfaces (e.g. Ethernet-based protocols) enable smooth integration into control systems.
Separated analytical and electronic compartments and corrosion-resistant components support long lifetime.
Diagnostics and predictive maintenance concepts support quick start-up and simplified service.

Featured TOC Analyzers

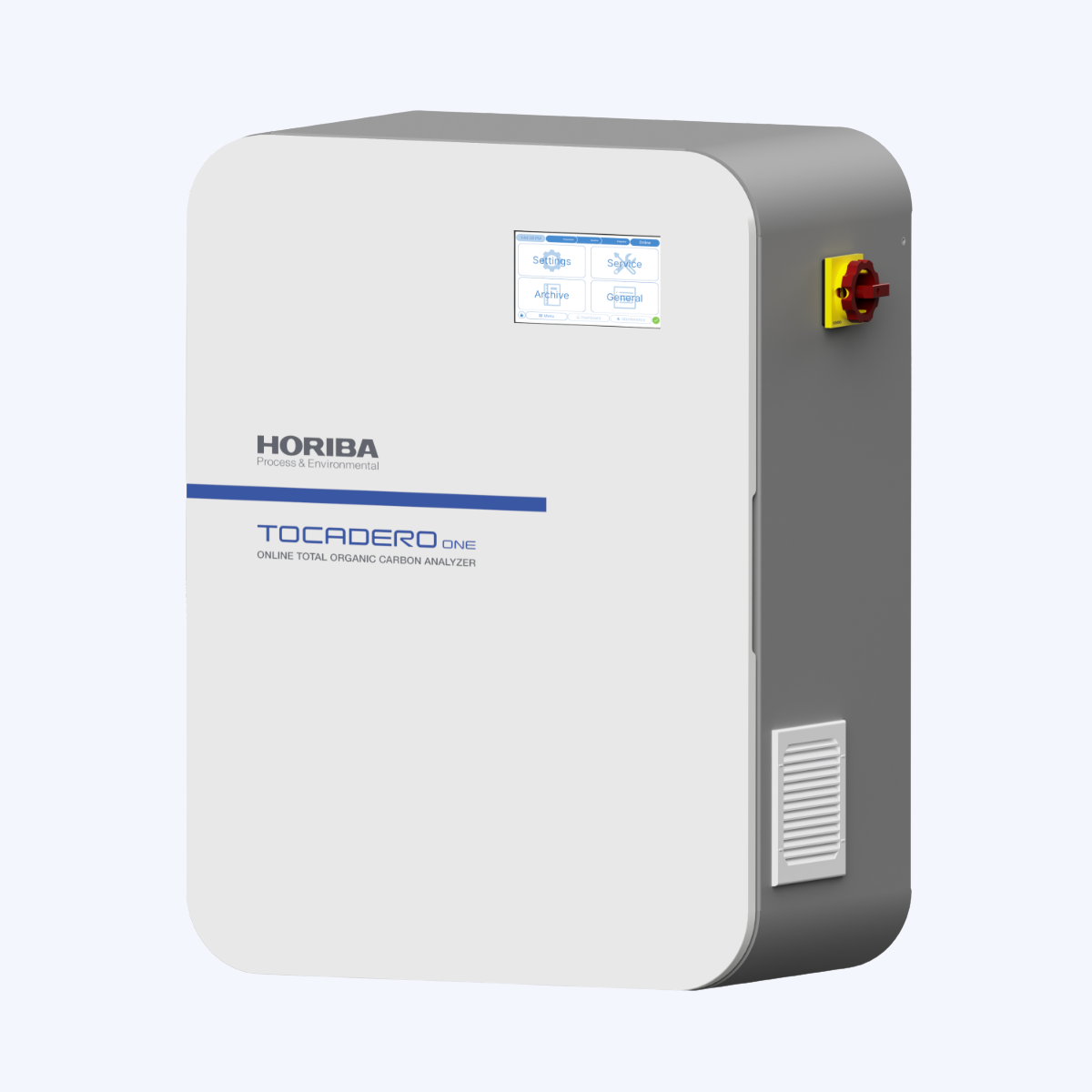

TOCADERO ONE – Online TOC Analyzer

1200 °C Combustion Catalyst-Free Online / Process

High-temperature, catalyst-free combustion with NDIR CO₂ detection for TOC and options for TNb measurement.
Measurement ranges from low-ppm to high-ppm/% TOC across a wide variety of water qualities.
Handles high TDS and particles with integrated backwash and sample preparation options.
Well-suited for drinking water, wastewater, desalination, cooling water, boiler feed and general industrial processes.

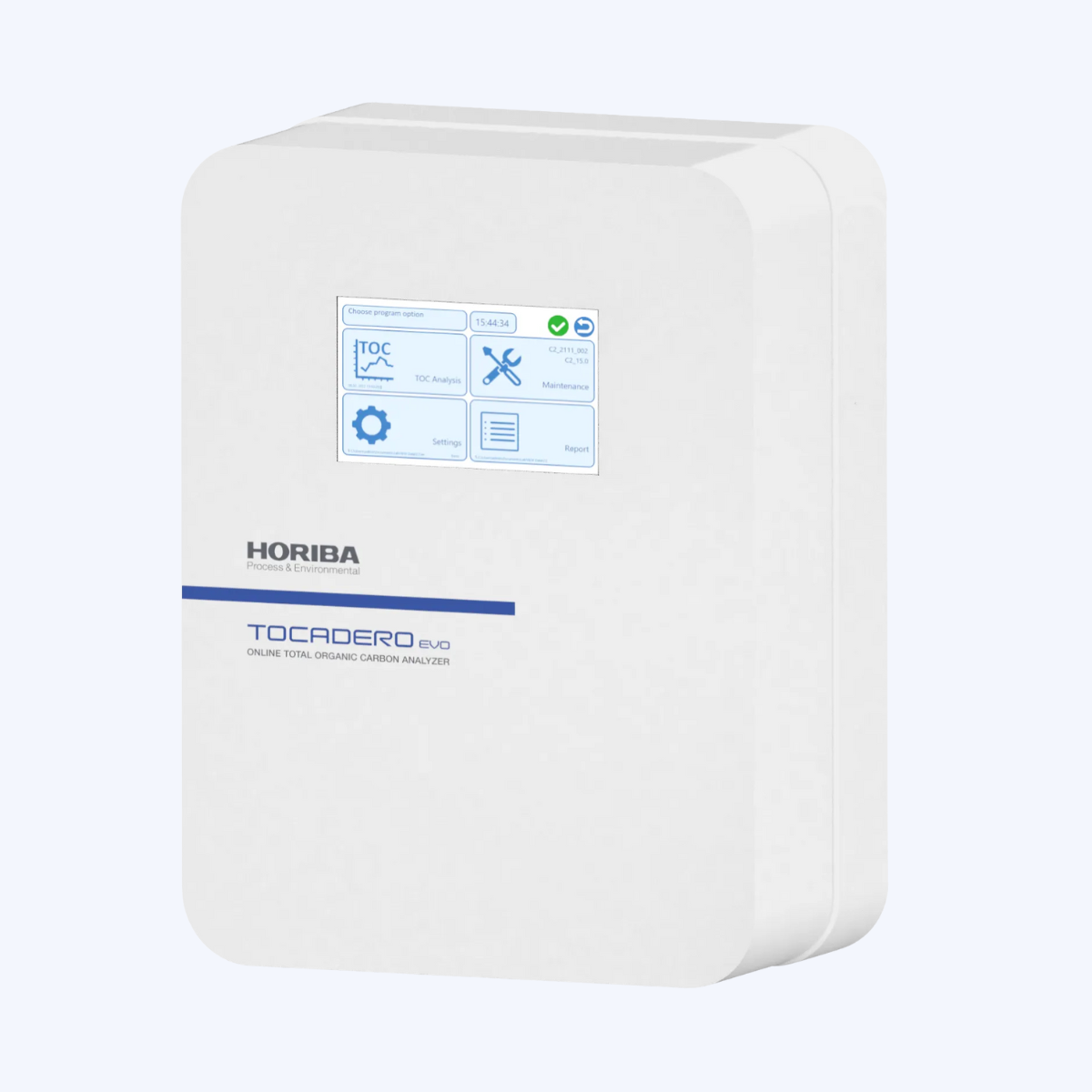

TOCADERO EVO – Online TOC Analyzer

21 CFR Part 11 FDA Compliance IIoT-Ready Online / Offline Mode

Measurement Method - UV oxidation with differential conductivity for UPW/WFI application
Dual mode: Online monitoring plus offline measurements with optional autosampler.
Emphasis on modularity, integration flexibility and enhanced diagnostic information across multiple water circuits.
Ideal for chemicals, oil & gas, pharma, semiconductor and demanding manufacturing environments.

Application Areas

Drinking & Surface Water

TOC monitoring in raw and treated water, including humic substances and organic load control.

Municipal & Industrial Wastewater

TOC and TNb determination in effluents with significant salinity, solids and corrosive components.

Desalination & Seawater

High-salt tolerance and short measuring cycles support membrane protection and process stability.

Pharma WFI / UPW

Sensitive TOC detection in the ppb range with suitable materials and closed sampling concepts.

CIP & Food & Beverage

Rapid response to changes in TOC during cleaning and production, supporting cleaning validation.

Condensate, Cooling & Power

Wide range detection and fast cycles support early leak detection and protection of utilities.

Airport De-icing

Wide TOC range allows monitoring of glycol-rich runoff with strong concentration dynamics.

Environmental Monitoring

TOC/TNb analysis for environmental surveillance and regulatory reporting in rivers and surface waters.

Compliance & Certifications

HORIBA Tocadero analyzers are engineered and certified to operate safely and reliably in demanding environments:

DIN EN 1484 (TOC) DIN EN 12260 (TNb) ATEX II 2G Ex pxb IIB+H₂ T4 Gb IECEx Certified Pressurized Enclosure IP54 / IP65, optional NEMA 4X housings

Share your water matrix, expected TOC range and installation conditions, and our team will recommend the most suitable TOCADERO ONE or TOCADERO EVO configuration.
