The T1 TOCADERO is an advanced, online TOC analyzer using high-temperature (1,200 °C) catalytic combustion via platinum wire—delivering precise, ultra-fast measurements across a wide concentration range. This device supports embedded predictive maintenance and modern connectivity, making it ideal for applications ranging from ultrapure pharmaceutical waters to industrial wastewater management.

Ensures full oxidation accuracy across diverse TOC conditions.

High-Heat Combustion Reliability

Delivers rapid results for efficient monitoring workflows.

Fast Analytical Cycles

Automates status checks to prevent downtime and maintain performance.

Built-In Health Monitoring

Supports comprehensive control and monitoring via modern networks and protocols.

Seamless Digital Integration

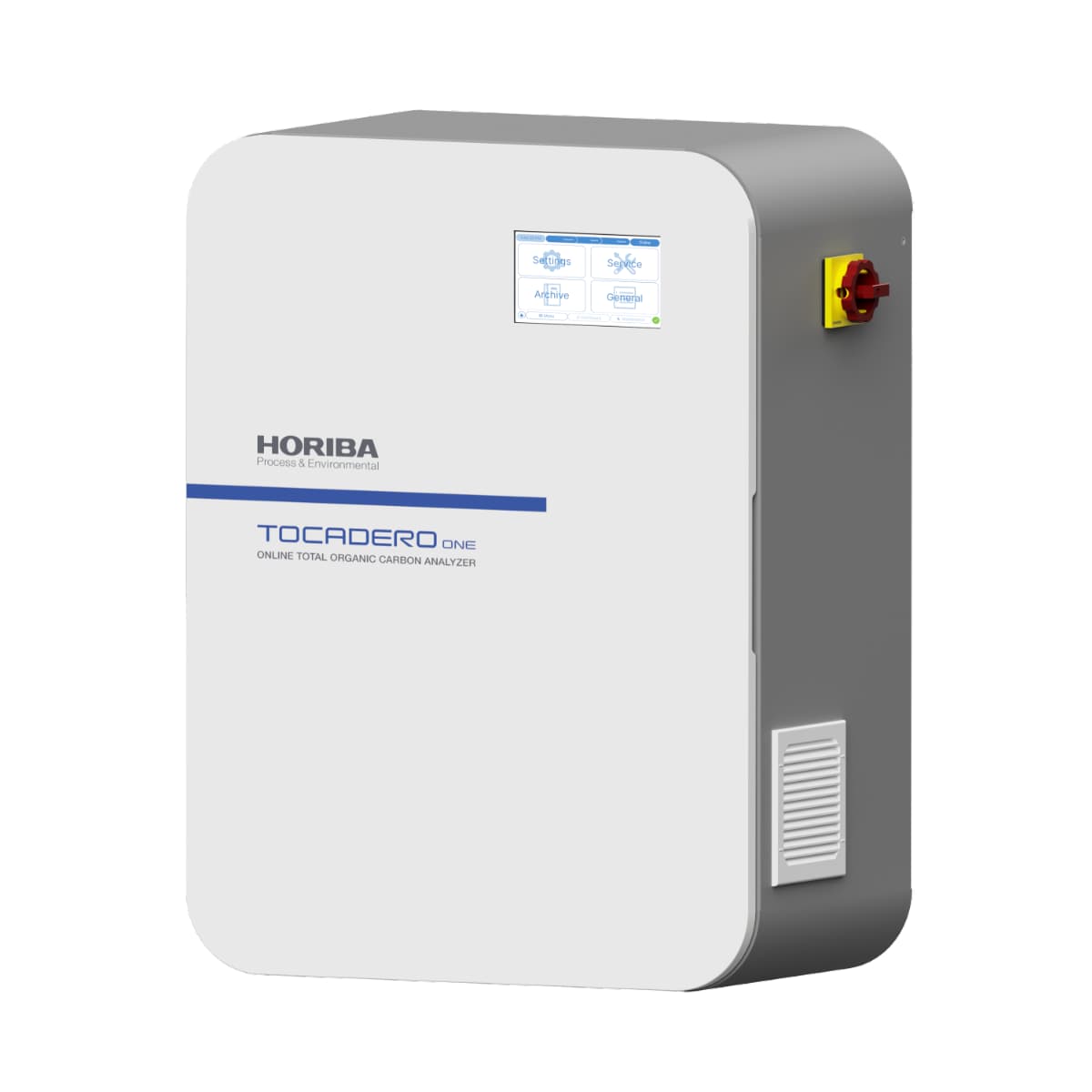

TOCADERO ONE

Automatic Total Organic Carbon Analyzer (On-line TOC analyzer)



Water is the source of life. Our daily lives, industries, and the natural environment are supported by safe and reliable water. This is not something to be taken for granted, and at this very moment, various water-related issues are emerging around the world. As experts in instruments for analysis and measurement, specializing in water and other liquids, HORIBA Advanced Techno proposes optimal services and solutions to these issues in order to build a better future for water together with our customers

Water & Liquid

An organic pollutant monitor that applies HORIBA's proven and proprietary rotary cell length modulation method which has been developed over many years. Suitable for use in monitoring organic pollutants at discharge points under the Total Pollutant Load Control System (TPLCS), organic matter measurement at water intake points for monitoring water quality, and monitoring organic substances in process lines (such as phenol meters).

OPSA-150

Long-term stable and high-precision measurements are achieved through our unique rotary cell length modulation method.

Model

UV absorbance, VIS absorbance, COD conversion concentration, TURB (turbidity) conversion concentration

Measurement item

Dual optical path, Dual wavelength, rotary cell length modulation method

Measurement principle

Ultraviolet: 253.7 nm, Visible light: 546.1 nm

Measurement wavelength

Structure of analyzer unit

UV absorbance/VIS absorbance Full scale: 0.1 Abs to 5.0 Abs (setting by 0.1 Abs is possible)

Measurement range (converted by cell 10mm)

Minimum scale

T90, within 1 minute (flow rate of approximately 5 L/min)

Response time

Organic pollutant monitor

The UV500 is an on‑line water analyzer with a high‑resolution 2048‑pixel UV‑visible spectrograph (180–750 nm) enabling simultaneous multi‑parameter monitoring (COD, BOD, TOC, NO₃, PO₄, colour, turbidity, Cr VI). Optional UV‑visible fluorescence for PAH detection, integrated nephelometric turbidity via laser diode, and a xenon flash lamp rated for &gt;10⁹ flashes with automatic acid‑based cleaning ensure reliable, low‑maintenance operation in wastewater treatment, river monitoring, and chemical process control applications.

UV500

The UV300 is a cost-effective online water analyzer focusing on one or two parameters. Based on stable UV-visible spectroscopy it measures organic matter, nitrate, colour, and PAH, with an optional colorimetric module for PO₄, Cl₂, NO₂, Fe, and Al and a laser‑diode turbidity sensor. External probes support pH, ORP, dissolved oxygen, and conductivity. An automatic acid‑cleaning system and long‑life xenon lamp minimize maintenance, and a web‑based interface enables remote control and troubleshooting.

UV300

HT-110 is an on-line total organic carbon (TOC) analyzer designed for pharmaceutical-grade water systems. It employs a continuous UV oxidation and conductivity detection method, requiring no reagents or carrier gases, and offers high repeatability (±2% F.S.) in low-concentration ranges (0–100 ppb). Built-in deaeration suppresses bubble-induced errors, while external contact input allows remote ON/OFF control. Extended UV lamp lifespan enables annual maintenance.

HT-110

The HU-200TB-IM is an immersion-ready turbidity and suspended solids sensor designed for direct installation in intake water, wastewater, or treatment tanks. It offers selectable measurement modes—either 90° scattering or transmission—for flexible monitoring and includes a robust auto-cleaning wiper and durable LED optics for stable, long-term field performance.

HU-200TB-IM

Immersion-Type Turbidity & Suspended Solids Analyzer

The HC-200NH continuously measures ammonia nitrogen (NH₄-N) in real time using an ion electrode method—ideal for optimizing aeration control in biological reaction tanks. It includes self-diagnostic functions, high durability, and optional integration with a dissolved oxygen (DO) sensor for enhanced monitoring capabilities.

HC-200NH

Field-Installation Ammonia Nitrogen Analyzer

The GX-100 is a modular water quality monitoring system tailored for drinking water regulation compliance. It measures seven essential parameters—turbidity, color, free residual chlorine, pH, conductivity, water pressure, and water temperature—using detachable sensor modules for rapid on-site maintenance and stable, continuous performance.

GX-100

The EL200 is a rugged, modular water quality controller capable of handling a wide range of probes for measuring key parameters such as pH, ORP, dissolved oxygen, conductivity, chlorine, turbidity, TSS, and temperature—all within a weather-resistant enclosure for field and process environments. It features intuitive touch-screen control, multi-channel flexibility, and both local and remote interface options.

Measurement ranges	0-1 ppm, 0–1 00 ppm, 0–1 .000 ppm, 0–1 0.000 ppm (optional: 0–1 00.000 ppm)
Limit of detection	0,1 ppm
Cycle time TOC(NPOC)	< 3 min.
Cycle time TC/TOC	1 min.
Repeatability	± 2 % end-of-range
TDS	up to 200 g/l (20% NaCl)
Particles	< 2.000 microns (optional: homogenizer and sample preparation)

Weight	< 55 kg
Dimensions	800 H × 600 W × 320 D mm
Power	AC 110 – 230V ±10V, 50/60 Hz, Approx. 600 VA
Carrier gas	CO₂ free instrument air

Indoors	2 – 45 °C
Relative humidity	< 85 % (no condensation)
Housing	IP 54, IP 65 (optional: NEMA4X)
Ex p-Enclosure	Zone 1/2, T3 and T4, ATEX & IECEx

Display	7“ Touch Panel
Supported protocols	OPC UA, Ethernet, Profinet,Modbus
Communication	Bluetooth, WLAN, GSM, 5G
Relays	4 programmable - NAMUR standard
Languages	German, English, Japanese, Chinese, Korean
