OPSA-150
Long-term stable and high-precision measurements are achieved through our unique rotary cell length modulation method.
An organic pollutant monitor that applies HORIBA's proven and proprietary rotary cell length modulation method which has been developed over many years. Suitable for use in monitoring organic pollutants at discharge points under the Total Pollutant Load Control System (TPLCS), organic matter measurement at water intake points for monitoring water quality, and monitoring organic substances in process lines (such as phenol meters).
Why Choose OPSA-150
- Rotary cell length modulation for stable, drift‑free readings;
- Dual wavelength UV/VIS absorbance and COD/TURB measurement;
- Continuous automatic wiper cleaning prevents cell contamination;
- Wide dynamic concentration range from low to high without dilution;
- Fast response time (T90 ≤1 min) for timely monitoring;
- User‑friendly touch‑panel LCD with integrated data logging
Key Advantages of OPSA-150
Particle Size Range
10 nm – 10 µm
Wide dynamic range for analyzing nanoparticles to microparticles with a single instrument.
Measurement Principle
Light Scattering
High-resolution optical technology ensures accurate and repeatable results.
Sampling Speed
<1 sec/measurement
Ultra-fast data acquisition for real-time monitoring and process optimization.
Concentration Range
Up to 10^9 particles/mL
Handles high concentrations without dilution, improving workflow efficiency.
Applications of OPSA-150
Discharge Point Monitoring
TPLCS compliance for industrial effluent
Intake Water Quality Surveillance
Organic pollutant screening at intake points
Phenol Process Line Monitoring
Inline detection of phenolic compounds
Sewage Effluent Analysis
Tracking organic load in wastewater outputs
Technical Specifications of OPSA-150
| Product name | Organic Pollutant Monitor (UV meter) |
|---|---|
| Model | OPSA-150 |
| Measurement item | UV absorbance, VIS absorbance, COD conversion concentration, TURB (turbidity) conversion concentration |
| Measurement principle | Dual optical path, Dual wavelength, rotary cell length modulation method |
| Measurement wavelength | Ultraviolet: 253.7 nm, Visible light: 546.1 nm |

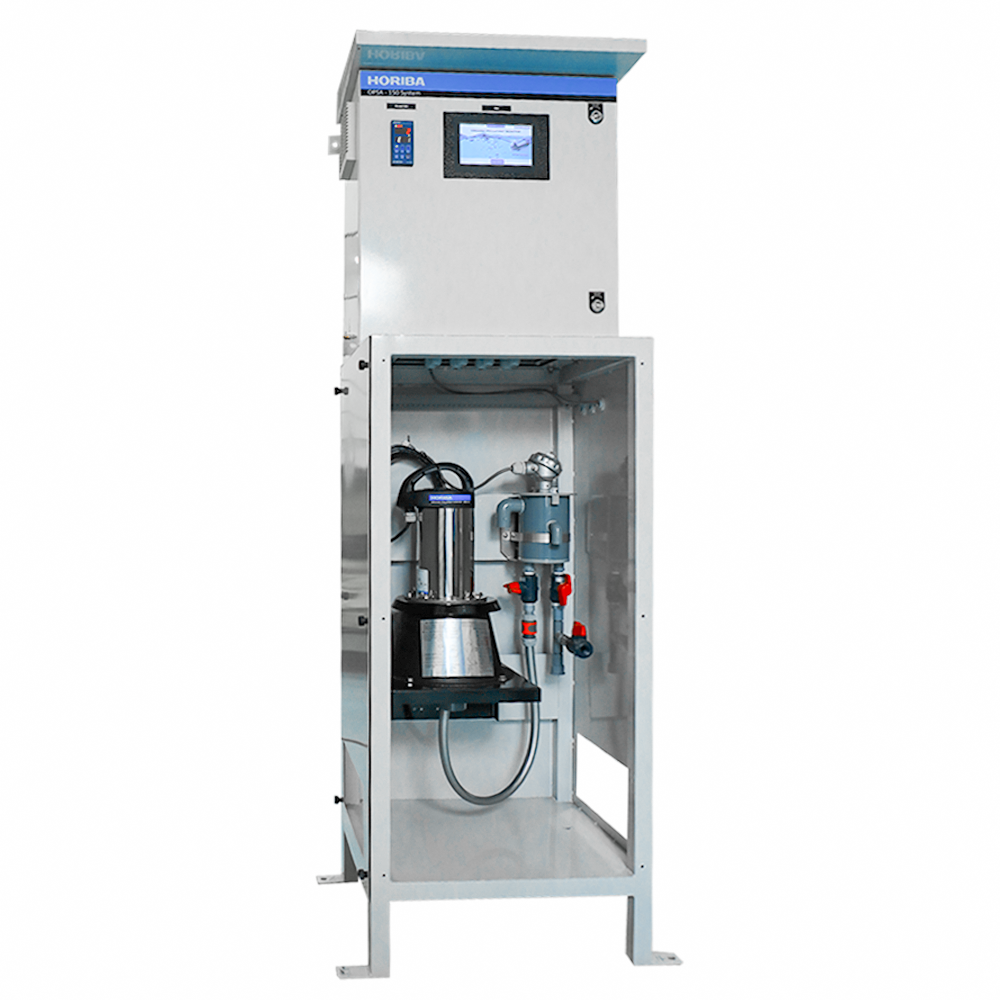

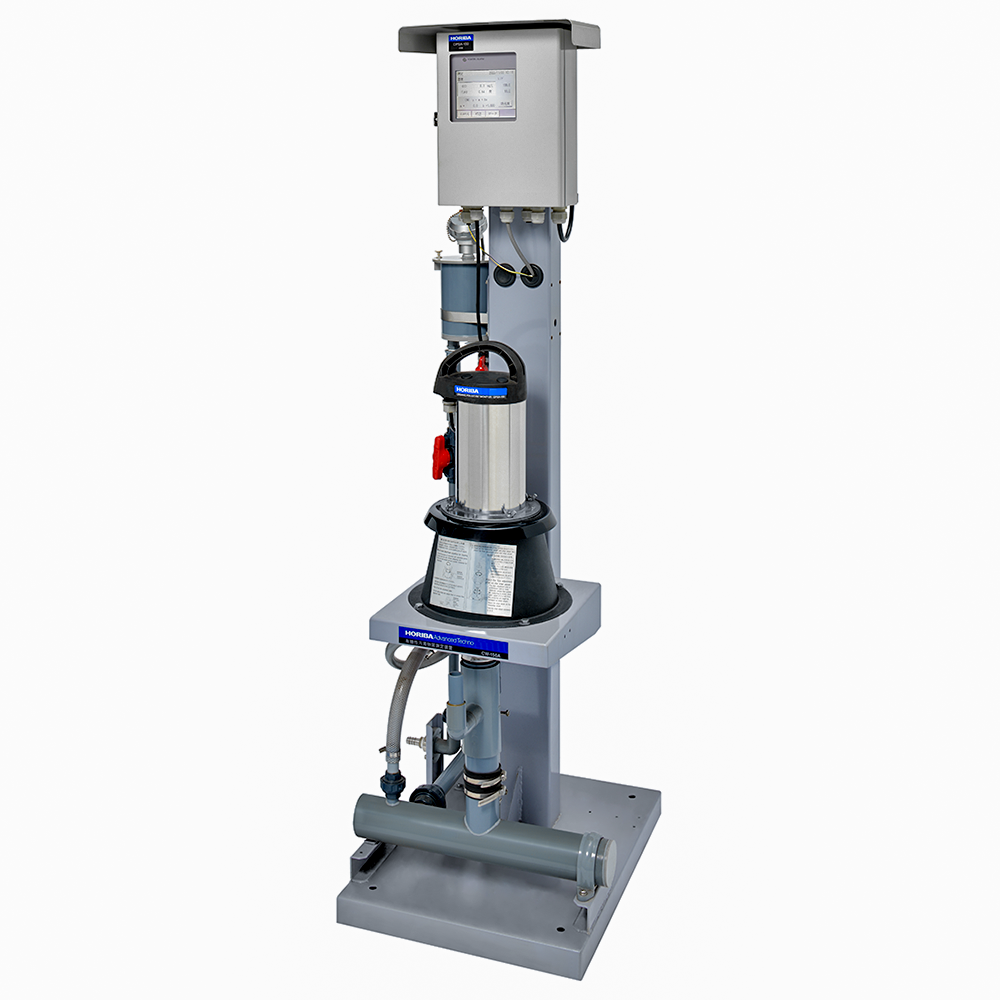

| Structure of analyzer unit | Circulation type |
| Measurement range (converted by cell 10mm) | UV absorbance/VIS absorbance Full scale: 0.1 Abs to 5.0 Abs (setting by 0.1 Abs is possible) |
| Minimum scale | 0.0001 Abs (changeable to 0.001 Abs) |
| Repeatability | Within ±2.0% of full scale (Within ±5.0% of full scale for 2.6 Abs to 5.0 Abs) |
| Linearity | Within ±2.0% of full scale (Within ±5.0% of full scale for 2.6 Abs to 5.0 Abs) |
| Stability | Within ±2.0%/24 h of full scale (Within ±4.0%/24 h of full scale for 2.6 Abs to 5.0 Abs) |
| Response time | T90, within 1 minute (flow rate of approximately 5 L/min) |
| Cleaning method (cleaning cycle) | Automatic cleaning by wiper (automatic continuous cleaning) |

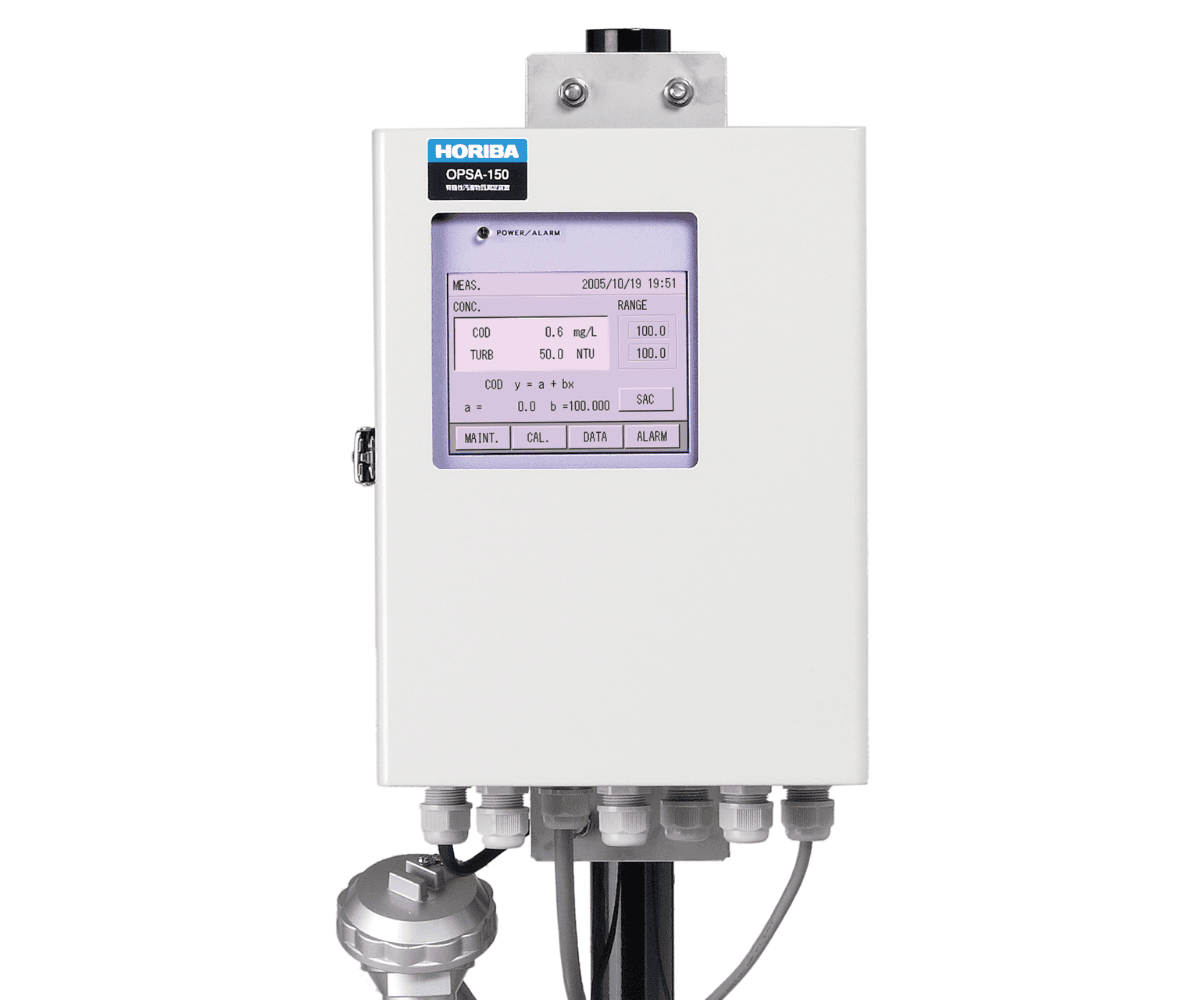

| Display method | LCD display: 320 × 240 monochrome graphics LCD data display with dot backlighting (a touch-panel) Display content: UV absorbance, VIS absorbance, UV-VIS absorbance, COD conversion concentration, TURB (turbidity) conversion concentration |
| Calibration method | Solution calibration using zero solution and span solution (calibration solution in the ampoule) (one-touch calibration is possible) |
| Sample water condition | Temperature: 2°C to 40°C (should not be frozen) Flow rate of sample water: Min. 2 L/min, Max. 20 L/min * Keep the unit warm (or preserve the heat) to ensure protection against frozen sample water in the cold weather. |
| Ambient temperature and humidity | Ambient temperature: 0°C to 40°C, Ambient humidity: 85% or below |
| Analog output | Point: 3 Type: arbitrary 3 items from UV absorbance, VIS absorbance, UV-VIS absorbance, COD conversion concentration, and TURB (turbidity) conversion concentration (selectable) Specification: 4 mA to 20 mA DC or 0 mA to 16 mA DC, insulated output (however, non-insulated among each channel) Maximum load resistance: 600 Ω |
| Contact output | Point: 6 Type: arbitrary 4 items from POWER OFF, MAINTENANCE (standard, fixed allocation) BATCH ALARM, COD MAX ALARM, TURB MAX ALARM (standard), LIGHT SOURCE MALFUNCTION, NO SAMPLE, CLEANING MOTOR ERROR, ANALYZER ERROR (selectable) Content: POWER OFF: when the power OFF occurred. BATCH ALARM: CLEANING MOTOR ERROR, LIGHT SOURCE MALFUNCTION, ANALYZER ERROR MAINTENANCE: at in-maintenance mode and calibration mode, and when maintenance switch is ON. Specification: contact output without voltage, a contact Contact rating: 125 V AC/0.3 A, 30 V DC/1 A (however, for load resistance) each output COM-independent |
| Contact input | Point: 2 Type: Float switch input, time adjustment input Specification: contact input without voltage (open collector can be connected), insulated input ON resistance: Max. 100 Ω, Open voltage: 5.5 V DC, Short circuit current: Max. 10 mA |
| Communication | Interface: RS-232C compliant Communication speed: 19200 bps |
| Data memory | Memorize the data of measurement value of the measurement item in the main body. Memorized data can be transferred to the CF card. Memory interval: 1 minute or 1 hour Memory time: on the hour every hour Data memory time: interval of 1 minute: approximately 10 days interval of 1 hour: approximately 1 year * The latest data is memorized. |

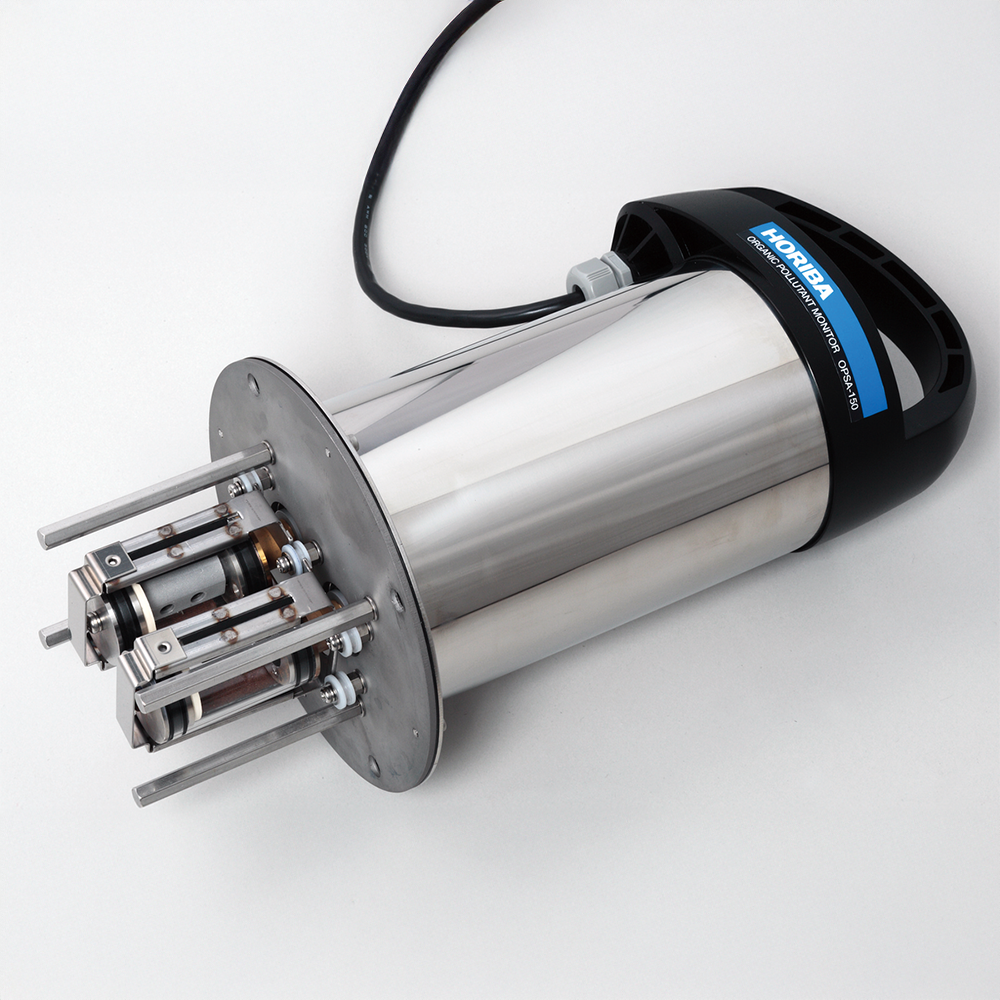

| Light source/detector | Light source: low pressure mercury-vapor lamp, detector: silicon photo diode |
| Piping sockets |
|

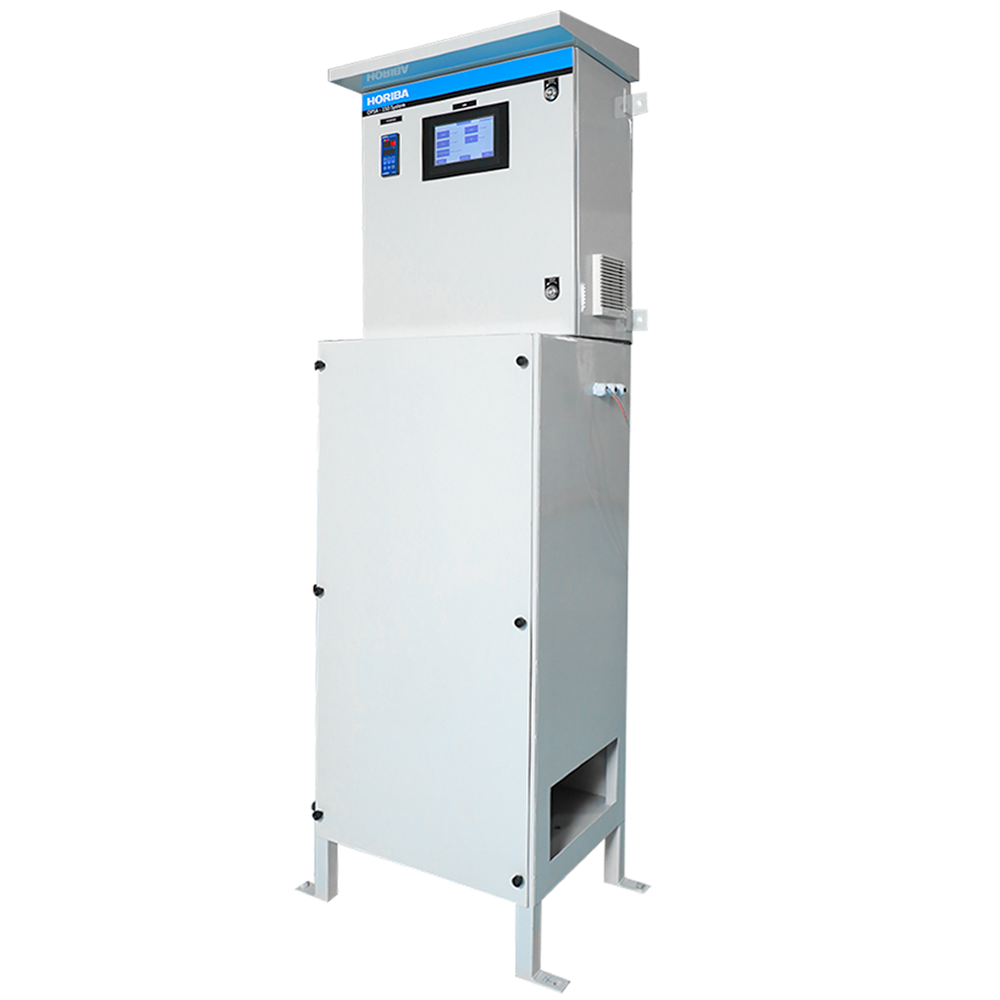

| Structure | Weather-proofed for outdoor installation (equivalent to IP54) |
| Main material of each unit | SUS, PVC, PP, CR, SiO2 |
| Power | 100 V to 230 V AC ±10%, 50/60 Hz |
| Power consumption | 100 V to 120 V AC, Max. 45 VA 200 V to 230 V AC, Max. 60 VA |
| Mass | Control unit: approximately 5.0 kg Analyzer unit: approximately 5.6 kg |
| Dimension | Control unit: 240 (W) × 104 (D) × 320 (H) mm Analyzer unit: 200 (W) × 180 (D) × 403 (H) mm (Protruding portion are not included.) |
| Painting color | Control unit: Munsel 5PB 8/1 |
| Conditions for installation |
|
