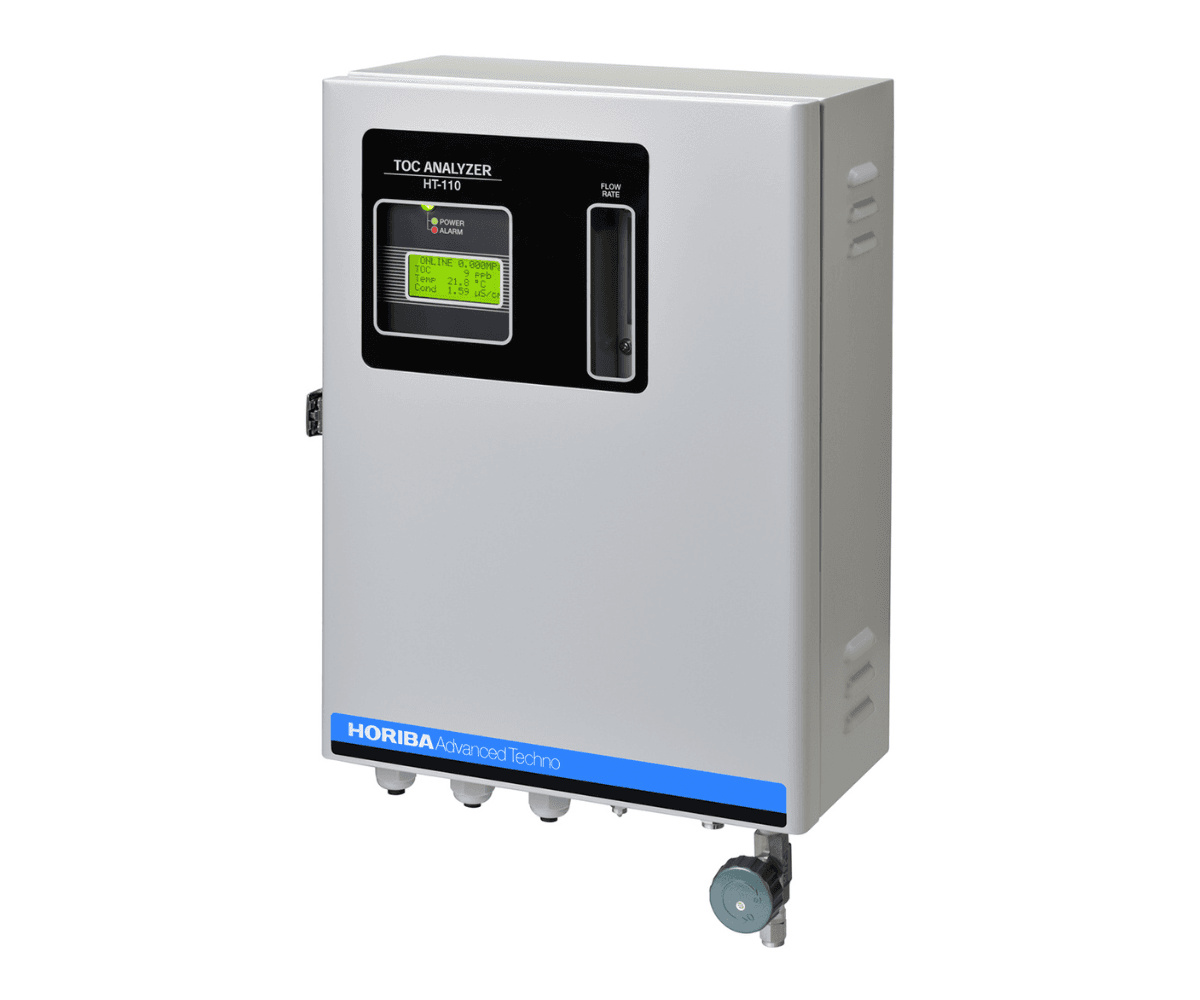

HT-110
On-line TOC analyzer
HT-110 is an on-line total organic carbon (TOC) analyzer designed for pharmaceutical-grade water systems. It employs a continuous UV oxidation and conductivity detection method, requiring no reagents or carrier gases, and offers high repeatability (±2% F.S.) in low-concentration ranges (0–100 ppb). Built-in deaeration suppresses bubble-induced errors, while external contact input allows remote ON/OFF control. Extended UV lamp lifespan enables annual maintenance.
Why Choose HT-110
- Continuous UV oxidation conductivity method without reagents or purge gas
- High repeatability (±2% F.S.) in low-concentration ranges
- Built-in deaeration mechanism to prevent bubble errors
- External contact inputs for remote ON/OFF control
- Extended UV lamp lifespan enabling annual maintenance
- Compliance with USP<643>, EP<2.2.44>, JP<G8.4.5.2> standards
Key Advantages of HT-110
Reagent-free analysis
Simplifies operation and reduces consumable costs
High repeatability
Ensures accurate low-level TOC measurement
Bubble suppression
Prevents erroneous readings
Extended maintenance
Minimizes downtime and service cost
Applications of HT-110
Wastewater Treatment Effluent Monitoring
Continuous COD & PAH analysis for compliance;
River Water Quality Surveillance
Real‑time turbidity & colour tracking
Drinking Water Safety Assurance
Inline nitrate & metal monitoring
Industrial Process Control
Simultaneous organics & turbidity measurement
Aquaculture Water Quality Management
DO & turbidity integration
Environmental Discharge Compliance
Automated pollutant load monitoring
Technical Specifications of HT-110
| Product name | Total organic carbon analyzer (TOC analyzer) | |
|---|---|---|
| Model | HT-110 | |
| Measurement method | Continuous UV oxidation conductivity method | |
| Measurement limit | 0 ppb to 1000 ppb | |
| Measurement range | 0 ppb to 100/500/1000 ppb | |
| Repeatability | Within ±2% of full scale | |
| Display resolution | 0.1 ppb (0 ppb to 100 ppb/0 ppb to 500 ppb range) 1 ppb (0 ppb to 1000 ppb range) | |
| Transmission output | Number of output point: one 4 mA to 20 mA DC/0 V to 1 V DC (optional) insulated input/output Maximum load resistance: 600 Ω (minimum load resistance 100 kΩ (when optionally selected)) Transmission output range: optional setting possible within measurement range Output target: TOC concentration | |
| Contact output | Number of outputs: 2 Alarm contact output (RLY1) Contact method: relay contact, SPDT (1c) Contact capacity: 125 V 3 A AC/24 V 3 A DC (load resistance) Contact function: upper/lower limit function (ON/OFF control) Output target: at TOC, temperature, conductivity: C-NO contact is “closed” during operation, “open” during normal conditions (including a POWER OFF state) *C-NO contact is reversed at hold, or error: C-NO contact is “open” during operation (including a POWER OFF state), “closed” during normal conditions *C-NO contact is reversed | |
| Alarm contact output (RLY2) Contact method: relay contact, SPST (1a) Contact capacity: 125 V 3 A AC/24 V 3 A DC (load resistance) Contact function: upper/lower limit function (ON/OFF control) Output target: TOC concentration | ||
| Contact input | Number of input point: 1 Non-voltage normal open (1a) signal input (open collector input possible) Insulation-type input Max. ON resistance: 50 Ω Open-circuit voltage: 5 V DC Max. short circuit current: 10 mA An error will not be generated even if there is notification of no sample detection immediately after receipt of the pure water device stop signal receiving The hold operation during the contact input receiving. | |
| Sample water condition | Conductivity: less than 10 μS/cm (less than 2 μS/cm in 0 ppb to 100 ppb range) | |
| Temperature: 5℃ to 99℃ | ||
| Pressure: 0.03 MPa to 0.50 MPa, Pressure fluctuation: within ±0.05 MPa (within the specified pressure range) | ||
| Flow rate: 20 mL/min to 200 mL/min | ||
| Environmental conditions | Temperature: 5℃ to 40℃ | |
| Relative humidity: less than 85% | ||
| Installation | Install place: indoor | |
| Display function | LCD (with a back light) TOC, conductivity, water temperature, alarm | |
| Power | 100 V to 240 V AC ±10%, 50 Hz/60 Hz built-in fuse 250 V AC 3.15 A (T) | |
| Power consumption | 80 VA (max.) | |
| Outside dimension | 300 (W) × 400 (H) × 165 (D) mm | |
| Mass | 13 kg | |
| Concerned directives | CE marking | EMC Directive: EN61326-2-3 Low Voltage Directive: EN61010-1 RoHS Directive: EN50581 |
| FCC Rule | FCC parts 15 | |
| Protection structure | IP 43 (IEC60529, JIS C0920) Pollution level 2 (IEC61010-1) | |
