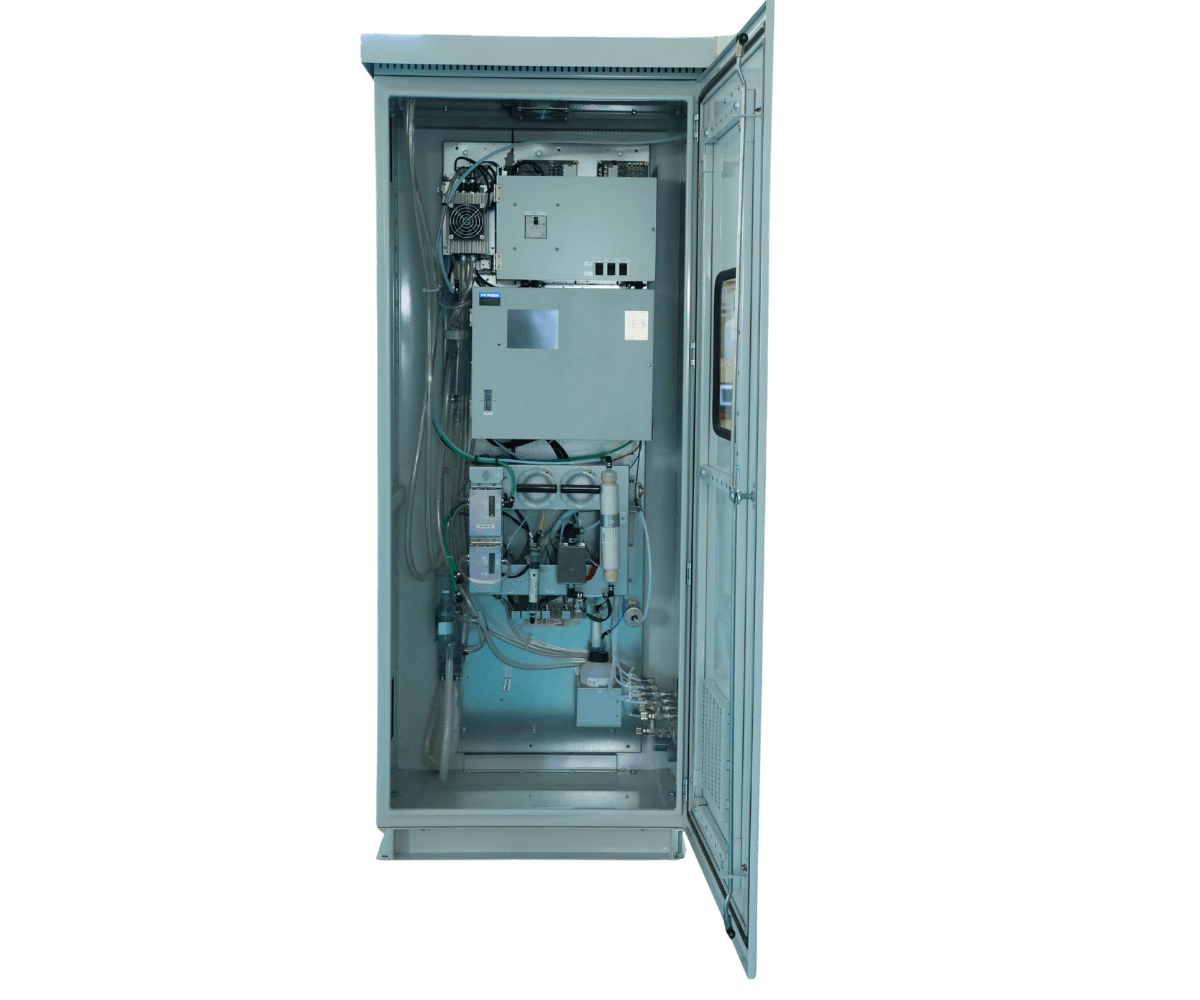

ENDA-5000 Series
Stack Gas Analysis System
The ENDA-5000 Series are compact stack gas analysis systems offering continuous, simultaneous, high‑precision measurement of NOₓ, SO₂, CO, CO₂, O₂, CH₄, and N₂O using drift‑free cross‑modulated NDIR and magneto‑pneumatic detectors. Featuring an intuitive touch‑panel interface and easy‑maintenance design, they ensure reliable emissions monitoring for boilers, incinerators, and power plants.
Why Choose ENDA-5000 Series
- Drift‑free stability via cross‑flow modulated NDIR detection
- Simultaneous analysis of up to 5 components (NOₓ, SO₂, CO, CO₂, O₂, CH₄, N₂O)
- Intuitive touch‑panel operation for single‑button control
- Compact footprint with wide maintenance access
- Rapid SO₂ correction in 3 minutes via dry‑base method
- Magneto‑pneumatic detection for O₂ precision
Key Advantages of ENDA-5000 Series
High precision
Maintains accuracy across full‑scale ranges
Flexible range selection
ppm standard
4 optional ranges up to 0–200 ppm
manual switching
Robust interference compensation
Eliminates cross‑gas and shock‑induced errors
Applications of ENDA-5000 Series
Steam boiler emissions monitoring
Continuous NOₓ and SO₂ tracking
Refuse incinerator pollution control
Ensures regulatory compliance
Power plant stack gas analysis
Real‑time CO₂ and O₂ measurement
Biomass power generation monitoring
Multi‑component emissions profiling
Petrochemical facility exhaust analysis
Cross‑interference correction
Flue gas desulfurization verification
Rapid SO₂ measurement
Technical Specifications of ENDA-5000 Series
| Model | ENDA-5000 | ||||||
| Component*1 | NOx | SO2 | CO | CO2 | O2*2 | ||
| Measurement methods | NDIR | NDIR | NDIR | NDIR | Magneto-pneumatic detection | ||
| Range*3 | Standard | 200~5000 ppm | 200~5000 ppm | 200~5000 ppm | 5~25 vol% | 10~25 vol% | |
| Option | 100 ppm~ | 50 ppm~ | 100 ppm~ | - | - | ||
| Range Ratio | Within a factor of 10 | Within a factor of 10 | Within a factor of 10 | Within a factor of 5 | Within a factor of 2.5 | ||
| Repeatability | Within 0.5% of full scale/week (with optional range, or during O2 measurement, ±1.0% of full scale/week) | ||||||
| Linearity (indicator error) | ±1.0% of full scale | ||||||
| Zero drift | ±1.0% of full scale/week (assuming surrounding temperature is maintained within 5 °C) (with optional range, or O2 measurement, ±2.0% of full scale/week) | ||||||
| Span drift | ±2.0% of full scale/week (assuming surrounding temperature is maintained within 5°) | ||||||
| Response time*4 | Within 60 seconds (Td + T90 from equipment intake area) (sample flow 0.6 L/min.) (within 240 seconds for SO2 only) | ||||||
| Overall interference from co-existing gases | ±2.0% of full scale (within standard range, with standard gas formation) | ||||||
| Display | Touch panel LCD (backlight) (four usable lines) | ||||||
| Environment Condition | Temperature | -5 to 40 °C (away from direct sunlight and radiation heat )*5 | |||||
| Humidity | 85% or less (no condensation) | ||||||
| Vibration | 100 Hz, 0.3 m/s2or less | ||||||
| Dust | Standard environment or better | ||||||
| Measuring Gas Condition | Temperature | 250 °C or lower | |||||
| Dust | 0.1 g/Nm3 or less | ||||||
| Standard gas composition*6 | NO: 500 ppm or less; NO2: 15 ppm or less; SO2: 1000 ppm or less; SO3: 50 ppm or less; CO: 200 ppm or less; CO2: 15% volume or less; H2O: 20% volume or less | ||||||
| Sampling method | Dry sampling using an electric cooler | ||||||
| Sample gas flow | 2.5 L/min~3.0 L/min | ||||||
| Sample inlet tube | Teflon tubing (Ø8/Ø6 mm) | ||||||
| Sample gas pressure | ±4.9 kPa (three points selected) (with no sample gas back pressure) |
scrollable
| |||||
| Pressure control | Pressure control uses a regulator and pump; Reduced pressure sampling; Control pressure: -4.9 kPa | ||||||
| Output | DC 4 to 20 mA (absolute output) (DC 0 to 16 mA/DC 0 to 1 V/DC 1 to 5V optional) Max. 12 output systems | ||||||
| External output | Analysis alerts, analysis warnings, range display, corrections, conservation, purging (option) Contact capacity: DC 30 V 1 A, AC 250 V 1 A resistance load | ||||||
| Correction method | Dry correction, automatic correction (correction cycle: 7 days standard, can be adjusted to between 1 and 99 days), manual correction | ||||||
| Calibration gas | Zero gas | With measurement method authorization: N2, When there is no measurement method authorization: N2 or ambient air | |||||
| O2 carrier gas | Ambient air | ||||||
| Span gas | Gas cylinder for each component measured (when there is no measurement method authorization: O2 or ambient air can be used) | ||||||
| Probe collection point filter | Flange: JIS 10K, 40 AFF; Sample probe tube length: 1000 mm; Material: SUS-316 stainless steel; Filｔer element: SUS-304 stainless steel and 2um-pleated quartz wool; Electric heater: 100 VA, with water droplet proof case | ||||||
| Power supply | AC 100 V ±15 V(85 V~115 V), AC 230V ±15 % | ||||||
| Power frequency | 50/60 Hz (switchable) | ||||||
| Power consumption | About 800 VA (heated piping 30m: +1100 VA; heater in tray: +300 VA) | ||||||
| Exterior dimensions/Mass | 600 (W) x 1770 (H) x 300 (D) mm, Approx. 200kg | ||||||
| Materials in contract with sample gas | SUS-316 stainless steel, SUS-304 stainless steel, Teflon, polypropylene, polyethylene, flourorubber, PVC, PVDF, and glass | ||||||
| Enclosure | Independent outdoor installation Plate thickness: Main unit, doors, top plate, steel plate: 2.3 mm; Channel base: 3.2 mm; Doors: front opening; Interface: right front | ||||||
| Color/Finish | Semi-gloss Munsell 5Y7/1 on all inner and outer surfaces | ||||||
*1: CH4 and N2O measurement are also available. Please contact us for more information.
*2: No carrier gas cylinder is required.
*3: Up to two ranges are supported for each component.
*4: Response time may vary depending on the sampling system composition.
*5: Support is available for -15 to 40 °C (cold-climate version) and 5 to 50 °C.
*6: An NH3 scrubber is available as an option for cases where a combined gas includes NH3. SO2 measurement corrected for CH4 interference is available for cases where there is CH4 in the sample gas for SO2 measurement. CO measurement corrected for N2O interference is available for cases where there is N2O in the sample gas for CO measurement.
